CLAAS RU 600 Contour RU 600 Auto Contour RU 600 Xtra RU 450 Xtra Fitting Instructions Manual_DE_EN_FR_IT_ES

Description

CLAAS RU 600 Contour RU 600 Auto Contour RU 600 Xtra RU 450 Xtra Fitting Instructions Manual_DE_EN_FR_IT_ES

DESCRIPTION:

CLAAS RU 600 Contour RU 600 Auto Contour RU 600 Xtra RU 450 Xtra Fitting Instructions Manual_DE_EN_FR_IT_ES

INTRODUCTION

These instructions describe the safe and time-efficient working procedure for fitting the mounting kit Spare Part No. 0498 742.0. Please read this manual thoroughly before starting work! Pay particular attention to the »General instructions « section. The following machines can be modified

CLAAS maize header:
RU 600 Contour
RU 600 Auto Contour
RU 600 Xtra
RU 450 Xtra

The shipping package is shown on page 4.1. Before starting work make sure that the mounting kit is complete. The “Shipping package” list is also considered a supplement to the spare parts list. Retain the old parts for later use!
TABLE OF CONTENTS:

CLAAS RU 600 Contour RU 600 Auto Contour RU 600 Xtra RU 450 Xtra Fitting Instructions Manual_DE_EN_FR_IT_ES

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Shipping package
Package list for RU 600 Contour / RU 600 Auto Contour /
RU 600 XTRA / RU 450 XTRA 41
Mounting kit plastic hold-down device 0498 7420 41
5 Installation – Plastic hold-down device
Dismantling covers 52
Mounting plastic hold-down device 52
Check and observe the following before putting into operation 54

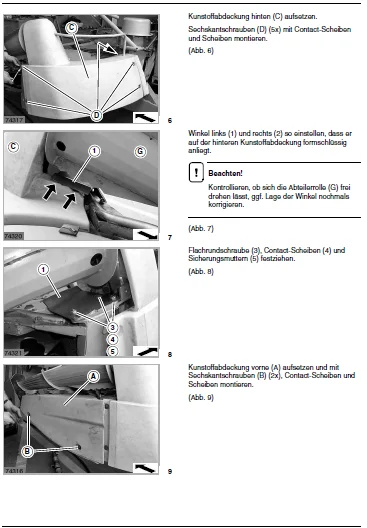

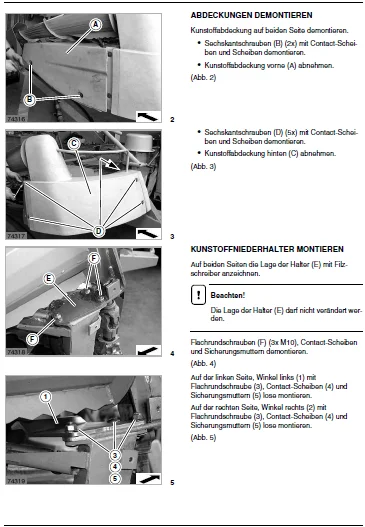

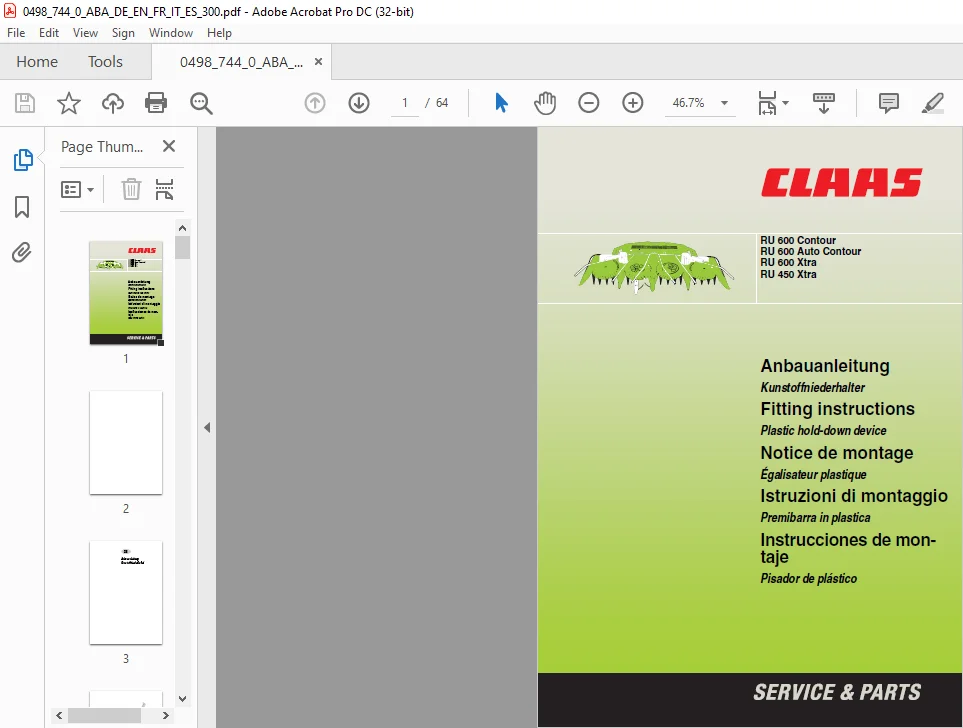

IMAGES PREVIEW OF THE MANUAL:

CLAAS RU 600 CONTOUR RU 600 AUTO CONTOUR RU 600 XTRA RU 450 XTRA FITTING INSTRUCTIONS MANUAL_DE_EN_FR_IT_ES:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
