CLAAS RU 600 Contour RU 600 Xtra RU 450 Xtra Autopilot (3 deflector fingers) Fitting instructions Manual_DE_EN_FR_IT_ES

Description

CLAAS RU 600 Contour RU 600 Xtra RU 450 Xtra Autopilot (3 deflector fingers) Fitting instructions Manual_DE_EN_FR_IT_ES

DESCRIPTION:

CLAAS RU 600 Contour RU 600 Xtra RU 450 Xtra Autopilot (3 deflector fingers) Fitting instructions Manual_DE_EN_FR_IT_ES

INTRODUCTION

This manual describes the safe and time-saving method of mounting with the mounting kit, part no. 0498 764.0 (autopilot). Please read this manual thoroughly before starting work! Pay particular attention to the »General instructions « section. The following machines and devices can be converted:

CLAAS maize headers:
RU 600 Contour
RU 600 Xtra
RU 450 Xtra

The shipping package is listed on page 4.3. Before starting work make sure that the mounting kit is complete. The “Shipping package” list is also considered a supplement to the spare parts list. Dispose of old parts that are not required for the assembly in an environmentally correct manner.

3 General instructions

OF SPECIAL IMPORTANCE

• The instructions set forth in this manual must be read carefully and followed by all persons concerned with the operation, maintenance, repair or inspection of this machine/front attachment in order to prevent accidents. Read and understand especially the »General instructions« section and the chapter on »Safety« in your operator’s manual. Observe the pertinent
• accident prevention regulations of your country. Clean the machine before starting work. Welding and grinding work on the machine may cause fire if accumulated vegetation, grease and dirt is not removed. Before starting work make sure that all necessary tools and devices are at hand. Make a comparison between the present type of machine/ implement, the list in
• section “Shipping package” and the delivered kit. For the specification of parts, e.g. screws, see the “Shipping package”.In this list every mounting part has an item number. Further details regarding these parts are the part no., the quantity, the dimensions, the ISO/DIN and the use. As a guideline, the existent parts in the installation instructions are marked with
• letters, while new parts are marked with numbers (item numbers). Texts and figures are formulated neutrally, as far as possible. The differences between the models are pointed out by notes in the text. Technical specifications, dimensions and weights are understood with the usual tolerances. IMPORTANT: Front, rear, right and left refer to the direction of forward travel.

TABLE OF CONTENTS:

CLAAS RU 600 Contour RU 600 Xtra RU 450 Xtra Autopilot (3 deflector fingers) Fitting instructions Manual_DE_EN_FR_IT_ES

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32

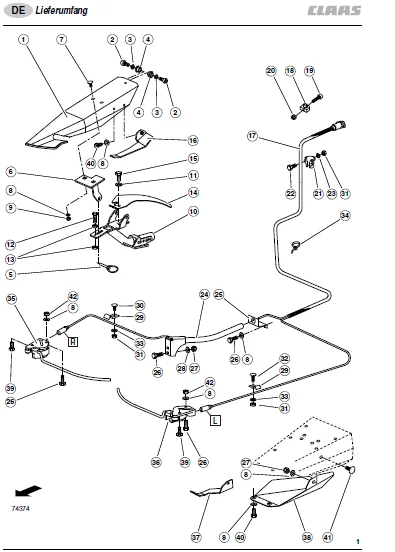

4 Shipping package
Shipping package for autopilot mounting kit for RU 600 Contour /
Xtra and RU 450 Xtra 43
Mounting kit: 0498 7640 43
5 Mounting autopilot
Removing deflector fingers 51

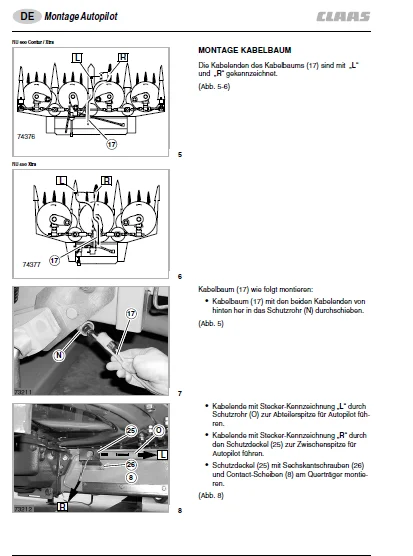

Installation of wiring harness 53
Mounting intermediate tip 54
Mounting right maize sensor 55
Mounting left maize sensor 56
Fixing wiring harness to rear panel 57
Adjusting intermediate tip and divider tip 57
Transport on public roads 58
Check and observe the following before putting into operation 59

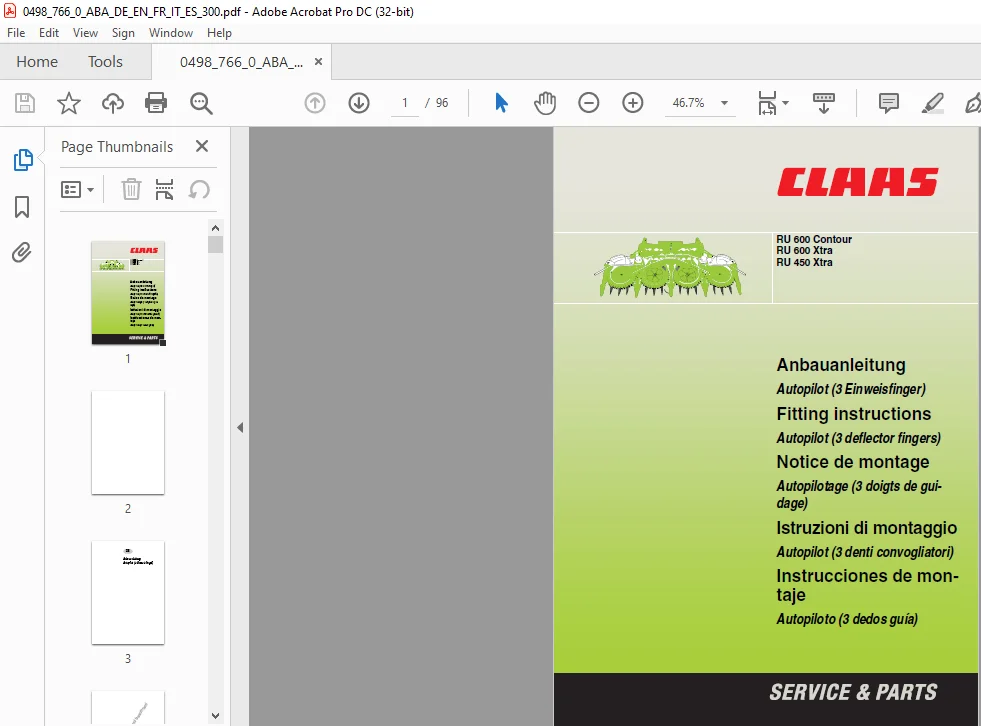

IMAGES PREVIEW OF THE MANUAL:

CLAAS RU 600 CONTOUR RU 600 XTRA RU 450 XTRA AUTOPILOT (3 DEFLECTOR FINGERS) FITTING INSTRUCTIONS MANUAL_DE_EN_FR_IT_ES:

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.M
