This manual describes the mounting of the CLAAS guide finger accessory to the RU 600 maize header. Carefully read and understand these instructions before starting work! Observe especially the section “General instructions”. The package list is mentioned on page 4.2. Before starting work make sure that the installation kit is complete. The “Package list” can also be used as a supplement to the spare parts list.

General
instructions
OF SPECIAL IMPORTANCE

The instructions set forth in this manual must be read carefully and followed by all persons concerned with the operation, maintenance, repair or inspection of this machine in order to prevent accidents. Read and understand especially the “General instructions” section in your operator’s manual and observe the pertinent accident prevention regulations of your country. Before starting work make sure that all necessary tools and devices are at hand. Make a comparison between the present type of machine/ implement, the list in section “Package list” and the delivered kit. For the specification of parts, e.g. screws, see the “Package list”. In this list every mounting part has an item number. Further details regarding these parts are the spare parts no., the designation, dimension, DIN and quantity. As a guideline, the existent parts in the installation instructions are marked with letters, while new parts are marked with numbers (item numbers). Texts and figures are formulated neutrally, as far as possible. The differences between the models are pointed out by notes in the text. Technical specifications, dimensions and weights are understood with the usual tolerances. Front, rear, right and left refer to the direction of travel.
TABLE OF CONTENTS:

CLAAS RU 600 Guide fingers Fitting Instruction Manual_DE_EN_FR_IT_ES – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and danger signs 32
Designated use 32
4 Package list
Package list / parts overview 42
Package list / mounting kit 0999 7390 44
5 Mounting procedure
Safety prop 51
Removing the skid 51
Mounting guide fingers 52

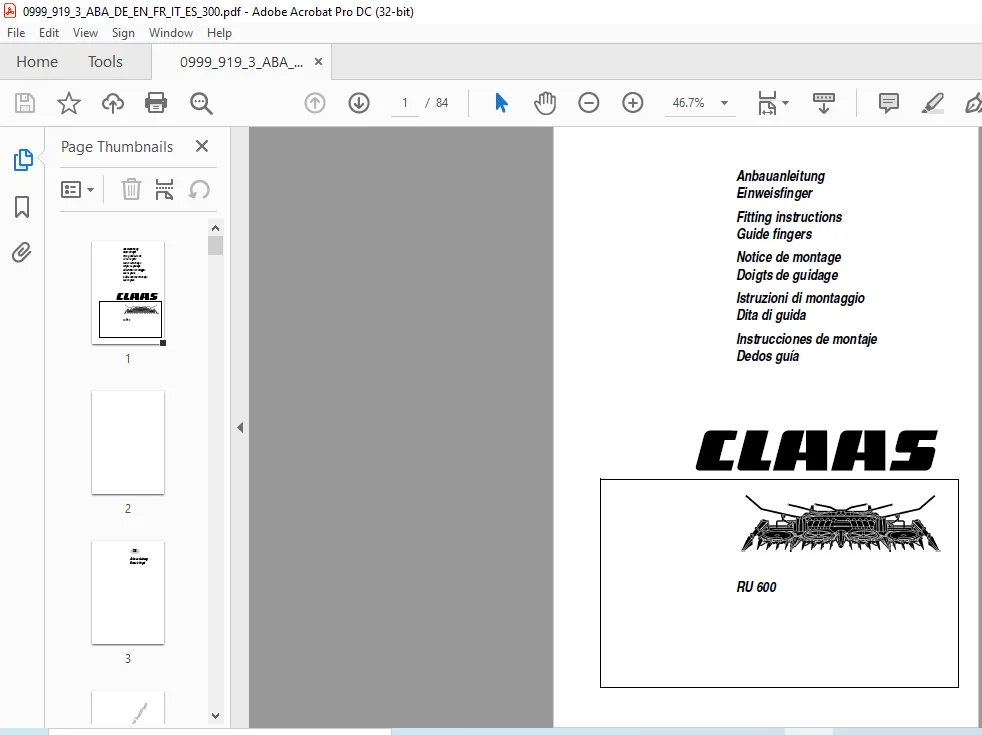

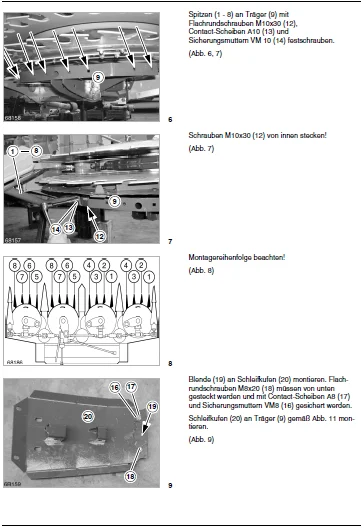

IMAGES PREVIEW OF THE MANUAL:
