CLAAS SCHNEIDWERK 5.4 M -9.00 M LEXION Rape seed extension plate Fitting instructions Manual_DE_EN_FR
DESCRIPTION:
CLAAS SCHNEIDWERK 5.4 M -9.00 M LEXION Rape seed extension plate Fitting instructions Manual_DE_EN_FR
INTRODUCTION
These instructions describe a safe and timesaving procedure for retrofitting rape seed extension plate to the LEXION cutterbar types 716, 715, 714, 712 or 711.’
The installation of following retrofitting kits is covered
| Cutterbar width | Retrofitting kit |
| 5.4 m | 0518 431.0 |
| 6.0 m | 0518 432.0 |
| 6.6 m | 0518 433.0 |
| 7.5 m | 0518 434.0 |
| 9.0 m | 0518 435.0 |
- The installation time is approx. 1.5 man-hours.
- See page 4.1 for the shipping package
- The Β«Safety RulesΒ» contained in the applicable Operator’s Manual must be observed.
- CLAAS Service Department
TABLE OF CONTENTS:
CLAAS SCHNEIDWERK 5.4 M -9.00 M LEXION Rape seed extension plate Fitting instructions Manual_DE_EN_FR
DE 3
Anbauanleitung 3
Rapsaufsatzblech 3
Einleitung 5
Inhalt 7
Besonders zu beachten 9
Kennzeichnung von Warn- und Gefahrenhinweisen 10
BestimmungsgemΓ€Γe Verwendung 10
Lieferumfang 11
Rapsaufsatzblech anbauen 13
Probelauf vorbereiten und durchfΓΌhren 15
EN 17
Fitting instructions 17
Rape seed extension plate 17
Introduction 19
Table of contents 21
Important information 23
Identification of warning and danger signs 24
Correct use 24
Shipping package 25
Installing the rape seed extension plate 27
Preparing and performing the test run 29
FR 31
Notice de montage 31
TΓ΄le de carΓ©nage pour colza 31
Introduction 33
Table des matières 35
Important 37
Marquage des avertissements et des dangers 38
Utilisation conforme aux prescriptions 38
Pièces fournies 39
Pose de la tΓ΄le de carΓ©nage pour colza 41
PrΓ©paration et exΓ©cution d’un marche d’essai 43

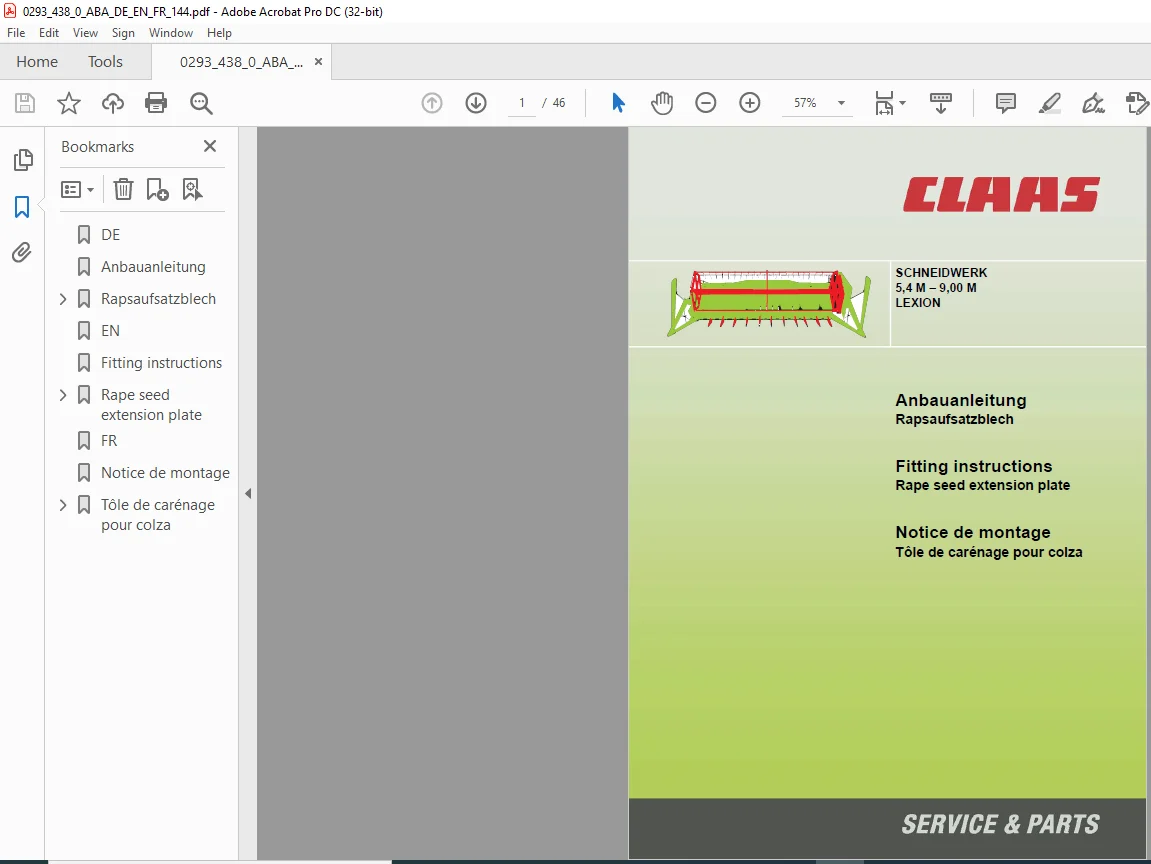

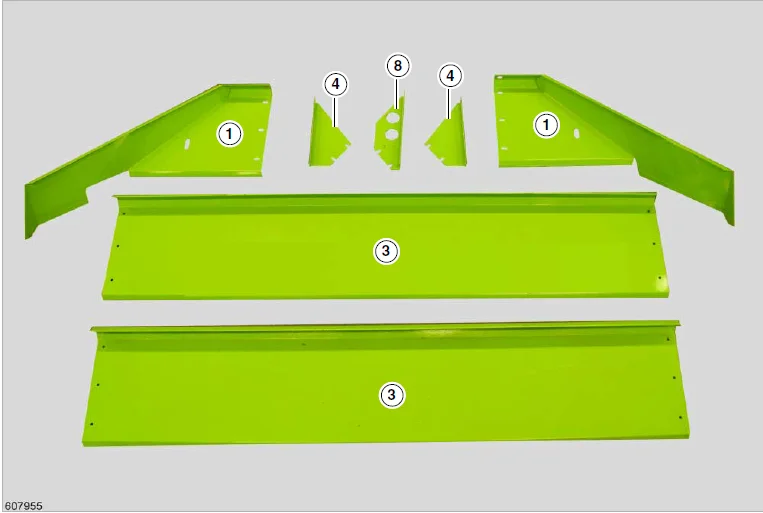

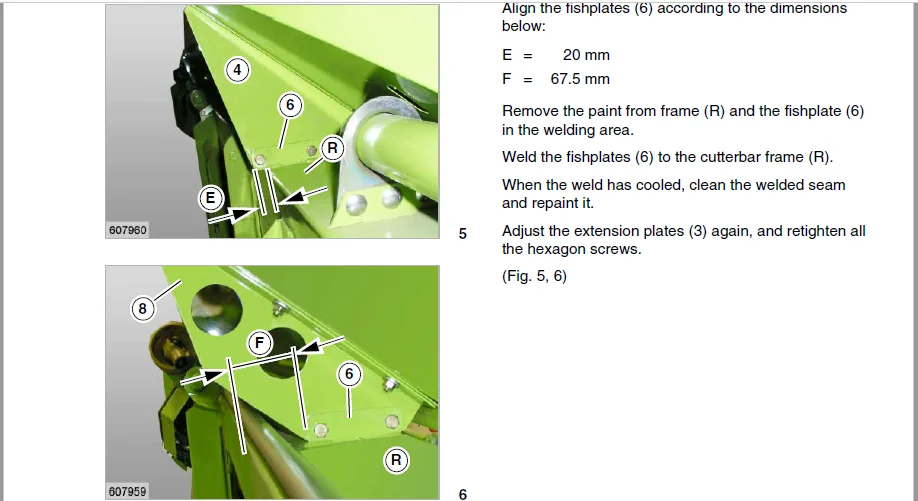

IMAGES PREVIEW OF THE MANUAL:
