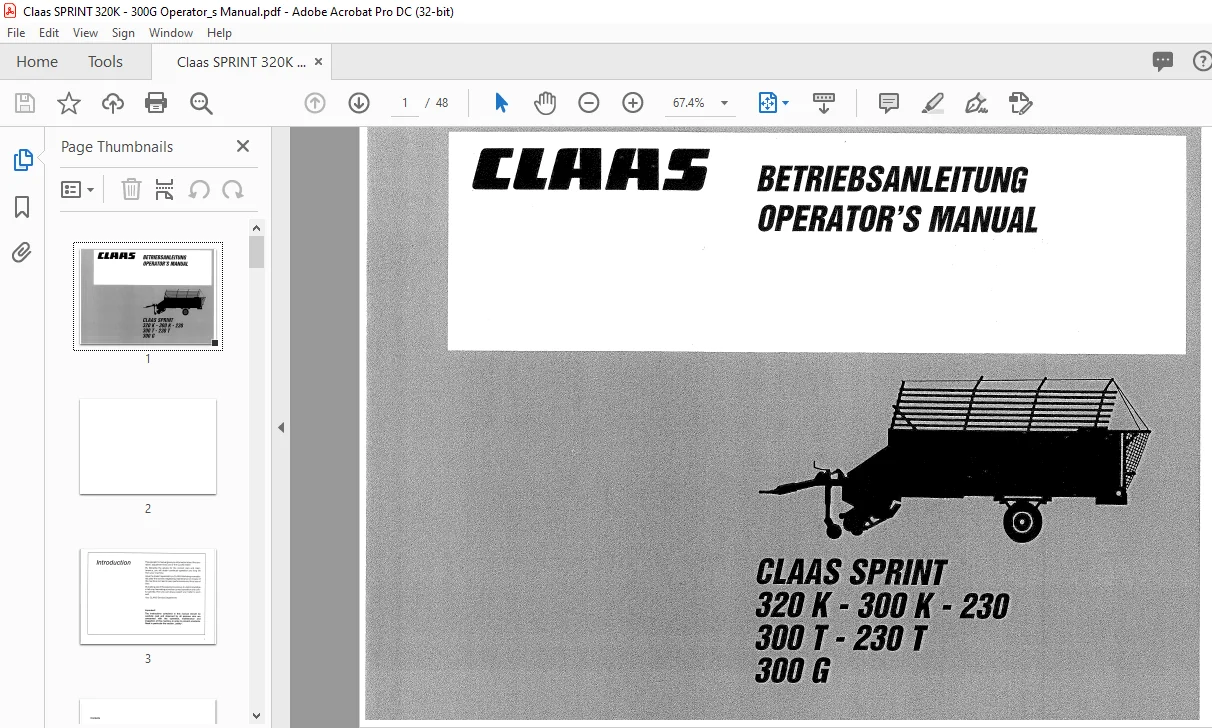

Claas Sprint 320K 300K 230 300T 230T 300G Operator’s Manual – PDF DOWNLOAD

Description

Claas Sprint 320K 300K 230 300T 230T 300G Operator’s Manual – PDF DOWNLOAD

DESCRIPTION:

Claas Sprint 320K 300K 230 300T 230T 300G Operator’s Manual – PDF DOWNLOAD

Safety rules :

Before putting the machine into operation, read the operating instructions and observe the safety regulations. In this operator’s manual, we’ve marked all the places that concern your safety with this sign. Pass on all the safety instructions to all those who use the machine. The warning and information labels on the trailer are intended to make operation as safe as possible. Observing these will ensure your safety.

Use in accordance with the regulations :

The machine is built solely for use in the agricultural industry (specified use). Any other use beyond this is considered unspecified. Liability for resulting damages will be rejected by the manufacturer. The user alone will take responsibility. Use for the purpose specified also includes observing the operation and repair conditions determined by the manufacturer.

• The machine may only be operated, repaired and maintained by persons who are familiar with it and are instructed about the dangers. The relevant accident prevention regulations as well as other recognised technical safety, industrial medicine and road traffic regulations are to be maintained.
• Unauthorized alterations to the machine will result in rejection of liability by the manufacturer for resulting damages. Should any parts be changed that are either of a specific composition or could endanger other road users, then the licence becomes invalid and another one must be applied for. It is necessary that the machine should be taken to the appropriate vehicle testing centre to be issued with the necessary certificate.

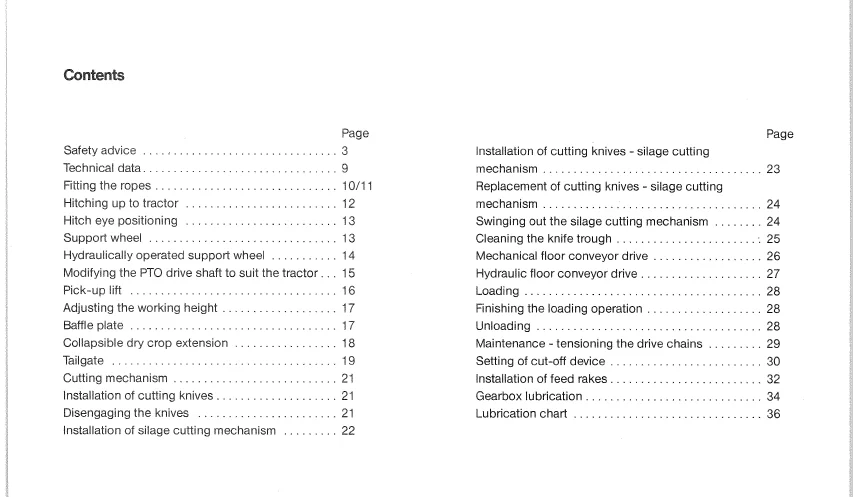

TABLE OF CONTENTS:

Claas Sprint 320K 300K 230 300T 230T 300G Operator’s Manual – PDF DOWNLOAD

Safety advice 3
Technical data 9
Fitting the ropes 10/11
Hitching up to tractor 12
Hitch eye positioning 13
Support wheel 13
Hydraulically operated support wheel 14
Modifying the PTO drive shaft to suit the tractor 15
Pick-up lift 16
Adjusting the working height 17
Baffle plate 17
Collapsible dry crop extension 18
Tailgate 19
Cutting mechanism 21
Installation of cutting knives 21
Disengaging the knives 21
Installation of silage cutting mechanism 22
Installation of cutting knives – silage cutting
mechanism 23
Replacement of cutting knives – silage cutting
mechanism 24
Swinging out the silage cutting mechanism 24
Cleaning the knife trough · 25
Mechanical floor conveyor drive 26
Hydraulic floor conveyor drive 27
Loading 28
Finishing the loading operation 28
Unloading 28
Maintenance – tensioning the drive chains 29
Setting of cut-off device 30
Installation of feed rakes 32
Gearbox lubrication 34
Lubrication chart 36

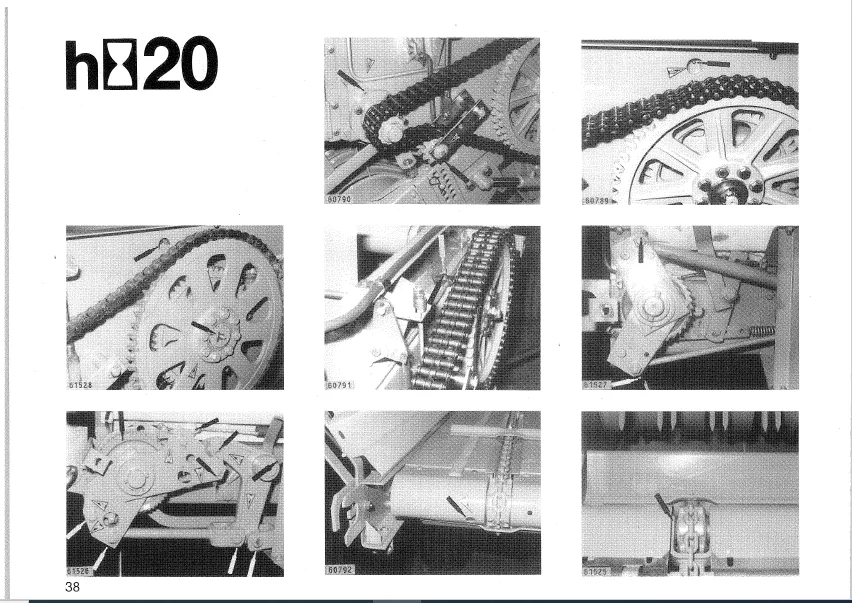

IMAGES PREVIEW OF THE MANUAL:
