CLAAS Telehandler SCORPION 7035 7030 6035 6030 Cardan shaft joint guard Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Description

CLAAS Telehandler SCORPION 7035 7030 6035 6030 Cardan shaft joint guard Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

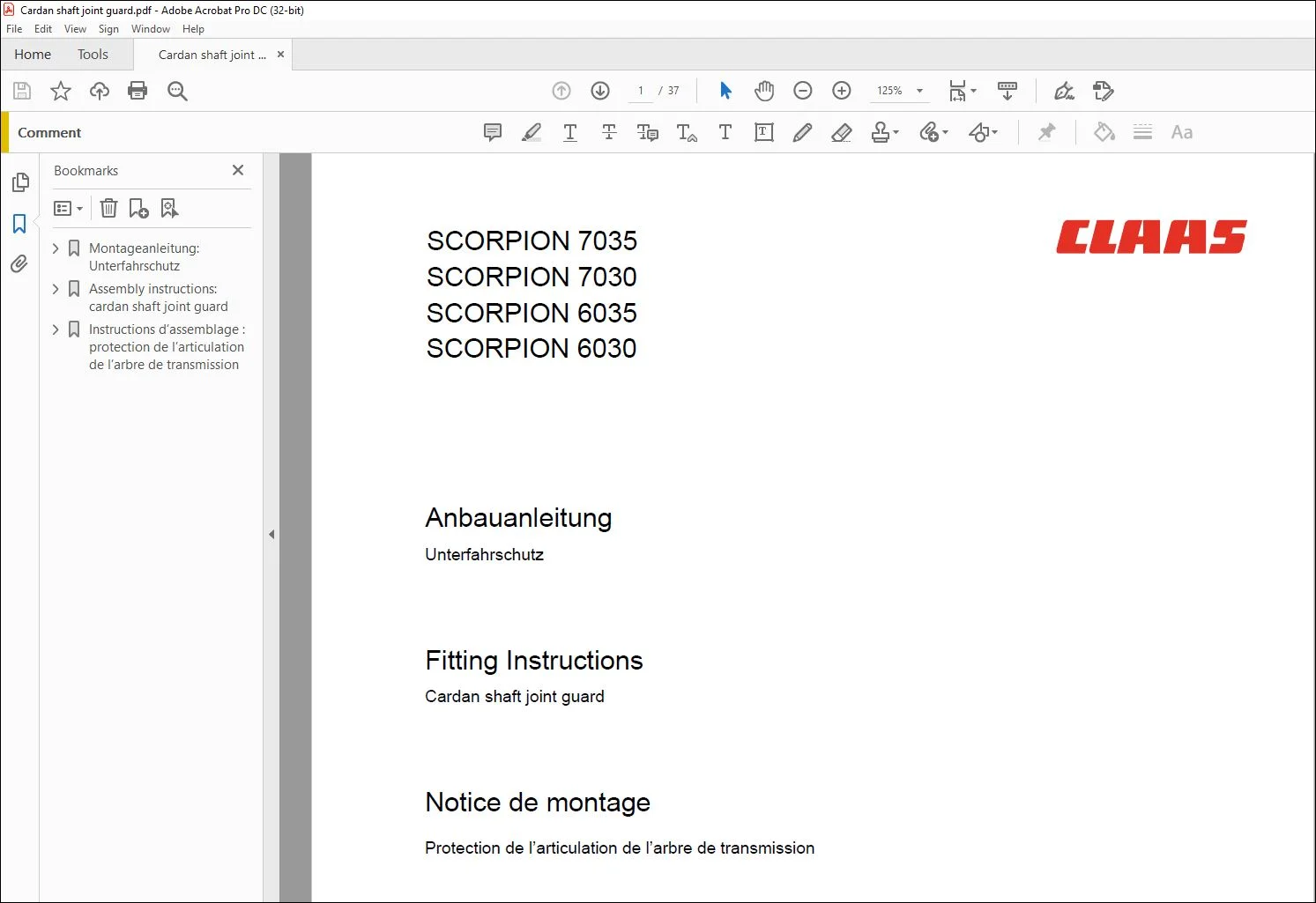

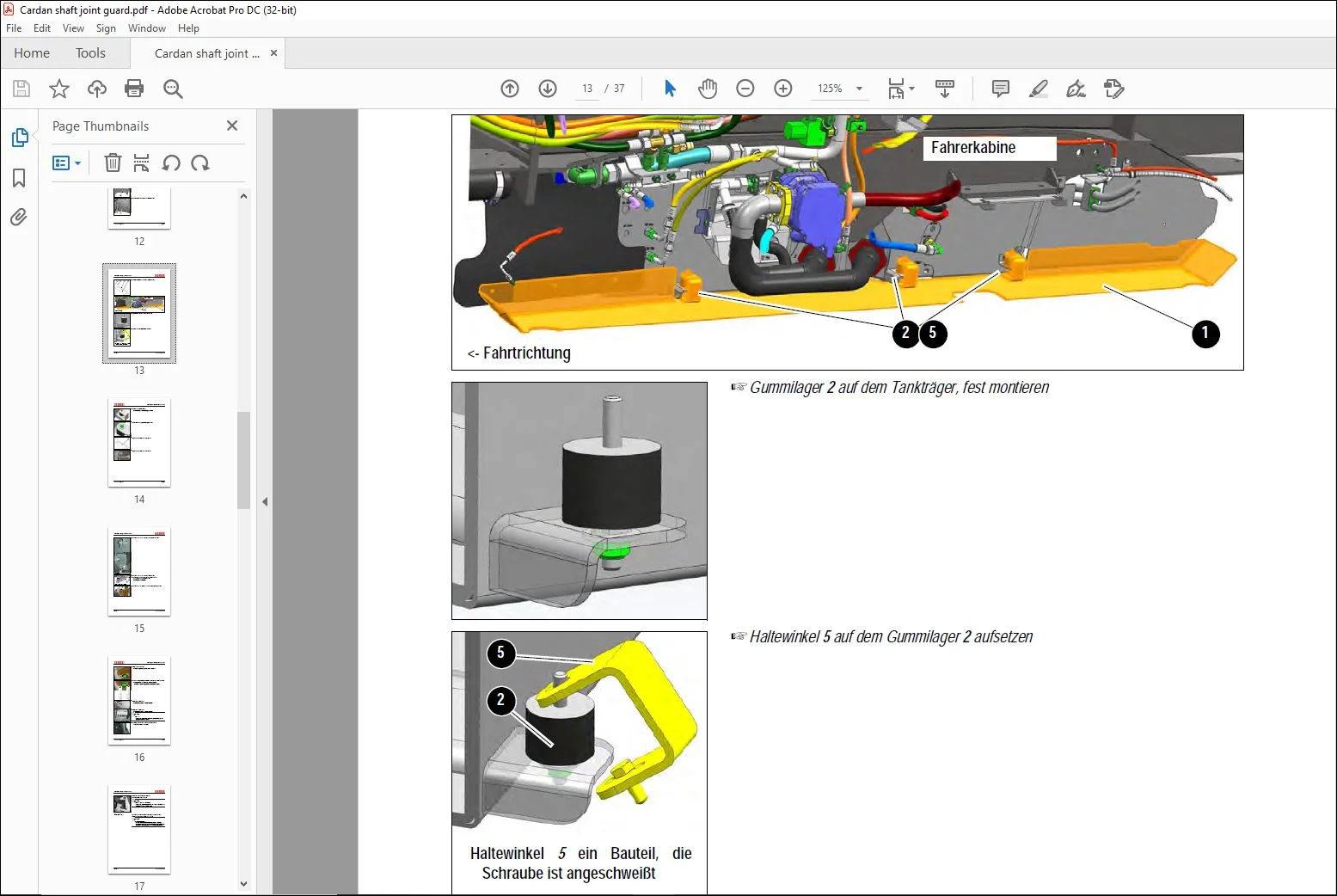

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Telehandler SCORPION 7035 7030 6035 6030 Cardan shaft joint guard Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

SCORPION 7035
SCORPION 7030
SCORPION 6035
SCORPION 6030
Anbauanleitung
Unterfahrschutz
Fitting Instructions
Cardan shaft joint guard
Notice de montage
Protection de l’articulation de l’arbre de transmission

Safety precautions
Work may be carried out only by specialist
workshops authorised by CLAAS and having
qualified personnel.
Observe the general safety, accident prevention and
environmental regulations.
Read and observe the Safety chapter in the
Operator’s manual.
Carry out work under the jacked-up/raised machine/
front attachment or under raised components only if
a safe support is provided.
Lower hydraulically actuated components down to
the ground before working on the hydraulic system.
Relieve the system pressure.
Carry out work on the machine only with the drive
disengaged and the engine stopped! Remove the
ignition key.
Relieve the pressure of pre-loaded accumulators
(springs, pressure accumulators, hydraulic cylinders)
or components loaded/pressurised by accumulators
properly prior to installation work.
After installation check if all bolts are tightly
seated.Carry out a function test.
