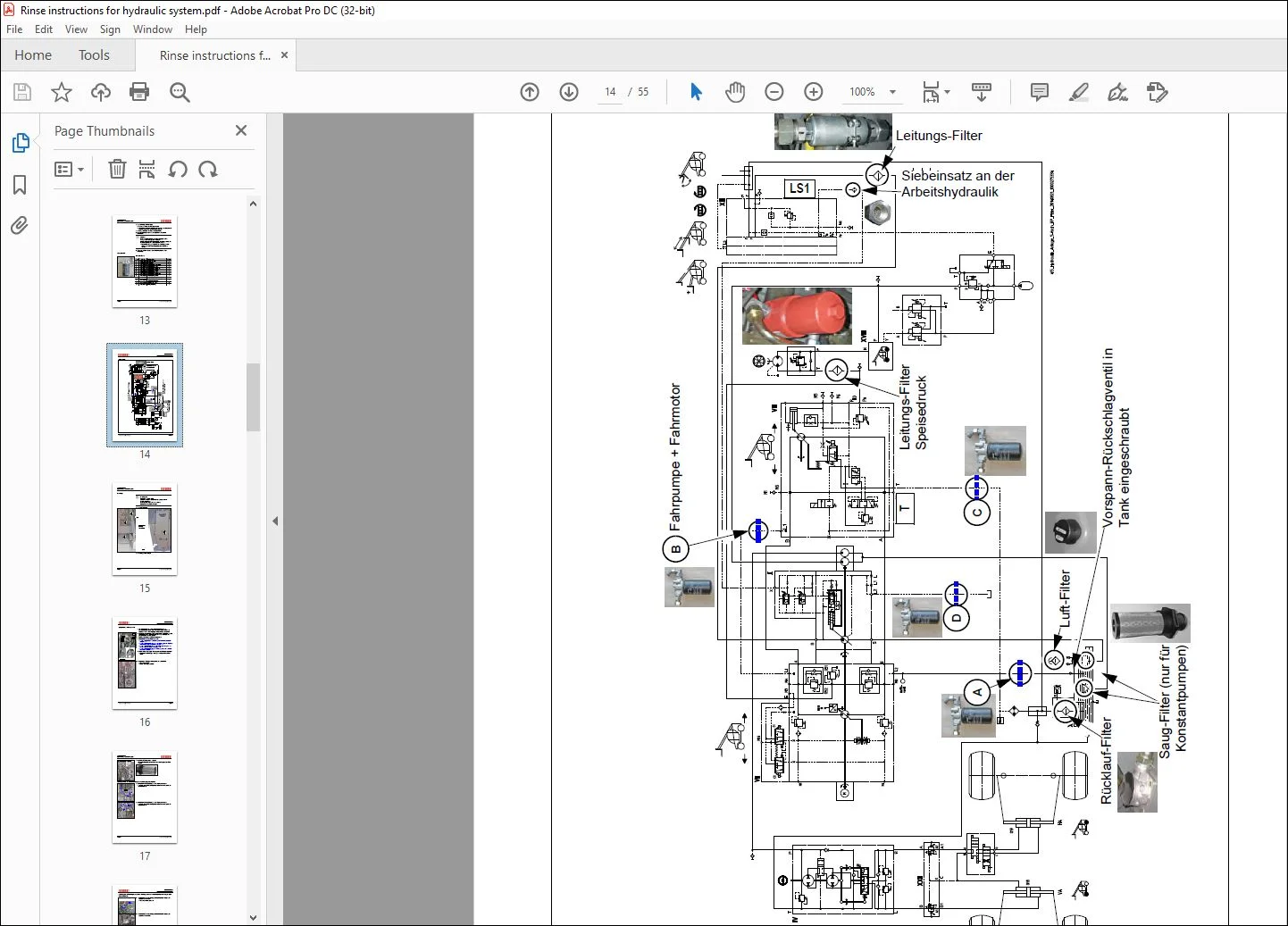

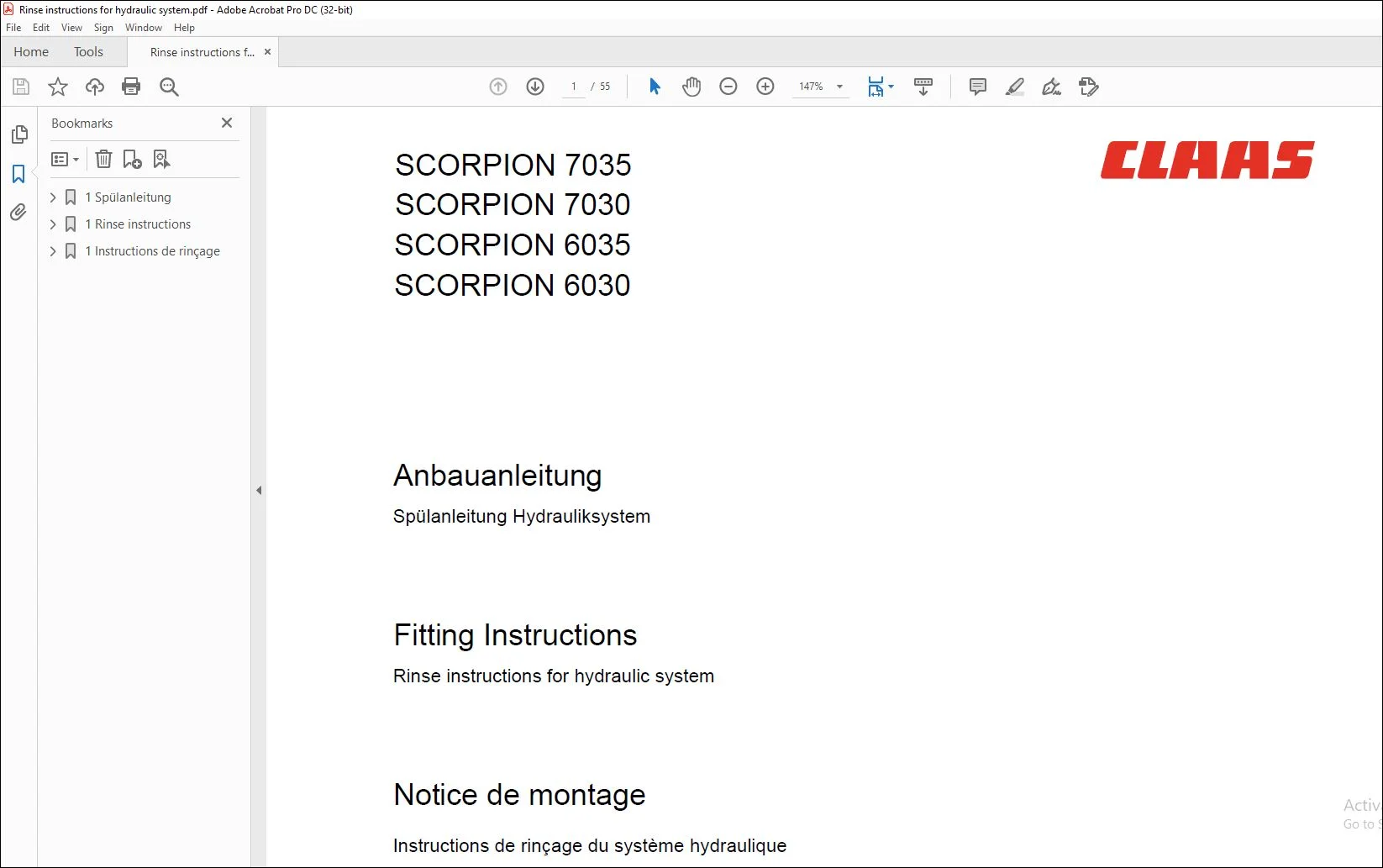

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Telehandler SCORPION 7035 7030 6035 6030 Rinse instructions for hydraulic system Fitting Instructions Manual_DE_EN_FR_IT_ES_RU – PDF DOWNLOAD
SCORPION 7035
SCORPION 7030
SCORPION 6035
SCORPION 6030
Anbauanleitung
Spülanleitung Hydrauliksystem
Fitting Instructions
Rinse instructions for hydraulic system
Notice de montage
Instructions de rinçage du système hydraulique

Safety precautions
Work may be carried out only by specialist
workshops authorised by CLAAS and having
qualified personnel.
Observe the general safety, accident prevention and
environmental regulations.
Read and observe the Safety chapter in the
Operator’s manual.
Carry out work under the jacked-up/raised machine/
front attachment or under raised components only if
a safe support is provided.
Lower hydraulically actuated components down to
the ground before working on the hydraulic system.
Relieve the system pressure.
Carry out work on the machine only with the drive
disengaged and the engine stopped! Remove the
ignition key.
Relieve the pressure of pre-loaded accumulators
(springs, pressure accumulators, hydraulic cylinders)
or components loaded/pressurised by accumulators
properly prior to installation work.
After installation check if all bolts are tightly
seated.Carry out a function test.

TABLE OF CONTENTS:

CLAAS Telehandler SCORPION 7035 7030 6035 6030 Rinse instructions for hydraulic system Fitting Instructions Manual_DE_EN_FR_IT_ES_RU – PDF DOWNLOAD

1 Spülanleitung10
11 Spülanleitung Hydrauliksystem10
Dokument:10
Gültig für Fahrzeug-Typ:10
Beschreibung10
Qualifikation10
Übersicht: Hilfsmittel Filter11
Vorbereitungsarbeiten12
Spülsatz-Nr13
Übersicht14
Montage15
Eingebaute Filter prüfen16
Leitungsfilter in Leckölleitung der Fahrpumpe montieren17
Leitungsfilter-Montage in Lecköl-Leitung von der Arbeitshydraulik-Pumpe zum Hydrauliktank18
Leitungsfilter-Montage in Querspülungs-Leitung von der Fahrpumpe zum Fahrmotor19
Leitungsfilter-Montage in Tankleitung von dem Fahrmotor zum Kühler20
Spülablauf21
Abschluss Spüllauf21
Inbetriebnahme22
1 Rinse instructions24
11 Rinse instructions for hydraulic system24
Document:24
Valid for machine model:24
Description24
Qualification24
Tools for filter (overview)25
Preparatory work26
Rinsing set no27
Overview28
Assembly29
Checking the installed filters30
Installing the line filter in the leak-oil line of the hydraulic pump31
Installing the line filter in the leak-oil line from the operating hydraulics pump to the hydraulic oil reservoir32
Installing the line filter in the case flushing line from the hydraulic pump to the hydraulic motor33
Installing the line filter in the reservoir line from the hydraulic motor toward the radiator34
Rinsing35
End of rinsing35
Putting into operation36
1 Instructions de rinçage38
11 Instructions de rinçage du système hydraulique38
Document :38
Valable pour modèle :38
Description38
Qualification38
Vue d’ensemble des outils pour le filtre39
Travaux préparatoires40
N° de jeu de rinçage41
Vue d’ensemble42
Montage43
Vérifier les filtres installés44
Monter le filtre de conduite dans la conduite de fuite de la pompe de transmission45
Monter le filtre de conduite dans la conduite d’huile de fuite, depuis la pompe de l’hydraulique de travail vers le réservoir d’huile hydraulique46
Monter le filtre de conduite dans la conduite de balayage transversal, depuis la pompe de transmission vers le moteur de transmission47
Monter le filtre de conduite dans la conduite du réservoir, depuis le moteur de transmission vers le radiateur48
Le rinçage49
Fin du rinçage49
Mise en marche51
