CLAAS Telehandler SCORPION 9055 7055 7050 7044 7035 7030 6035 6030 Tilt ram lock Fitting Instructions Manual_DE_EN_FR_IT_ES_RU

Description

CLAAS Telehandler SCORPION 9055 7055 7050 7044 7035 7030 6035 6030 Tilt ram lock Fitting Instructions Manual_DE_EN_FR_IT_ES_RU

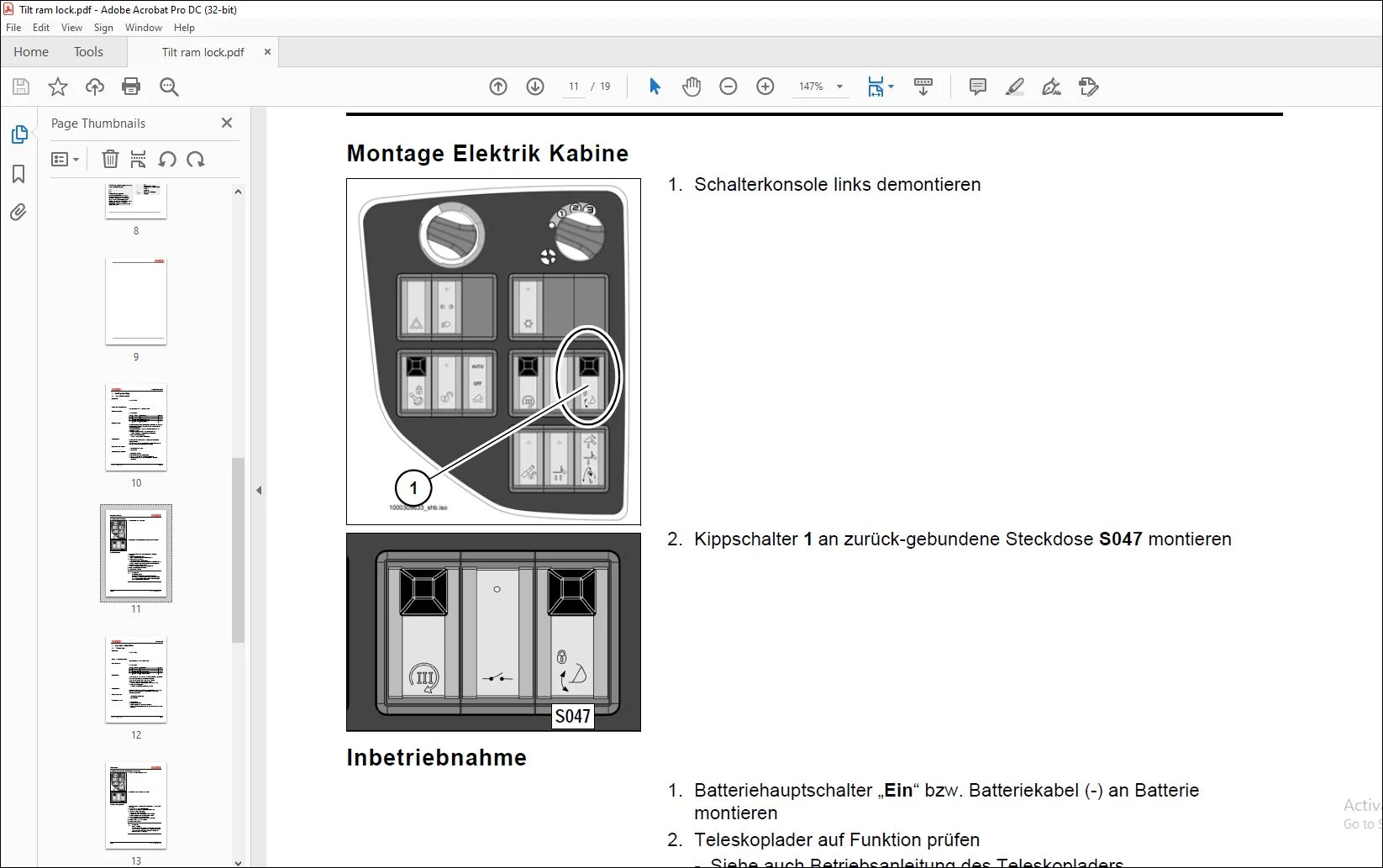

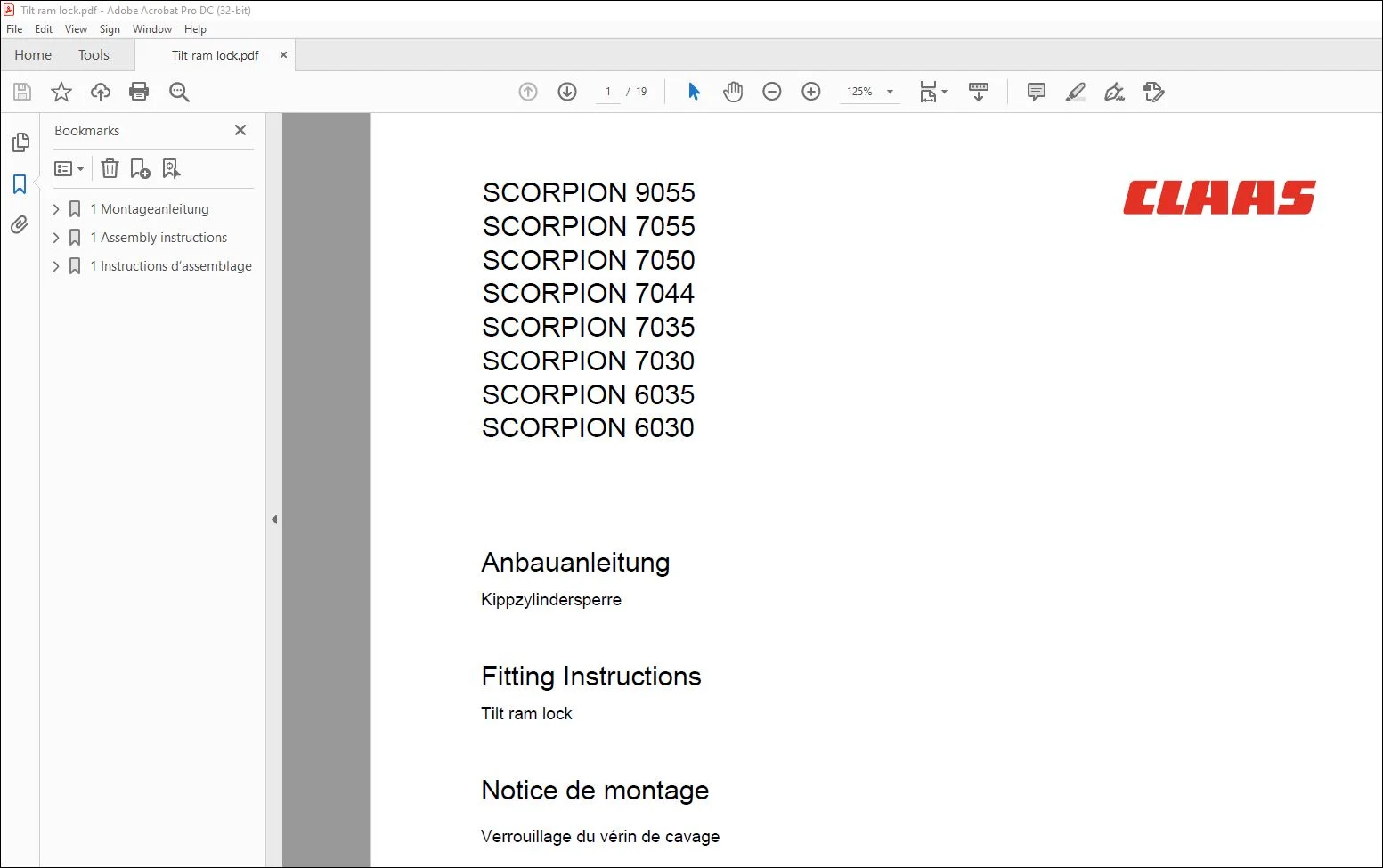

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Telehandler SCORPION 9055 7055 7050 7044 7035 7030 6035 6030 Tilt ram lock Fitting Instructions Manual_DE_EN_FR_IT_ES_RU

SCORPION 9055
SCORPION 7055
SCORPION 7050
SCORPION 7044
SCORPION 7035
SCORPION 7030
SCORPION 6035
SCORPION 6030
Anbauanleitung
Kippzylindersperre
Fitting Instructions
Tilt ram lock
Notice de montage
Verrouillage du vérin de cavage

Safety precautions
Work may be carried out only by specialist
workshops authorised by CLAAS and having
qualified personnel.
Observe the general safety, accident prevention and
environmental regulations.
Read and observe the Safety chapter in the
Operator’s manual.
Carry out work under the jacked-up/raised machine/
front attachment or under raised components only if
a safe support is provided.
Lower hydraulically actuated components down to
the ground before working on the hydraulic system.
Relieve the system pressure.
Carry out work on the machine only with the drive
disengaged and the engine stopped! Remove the
ignition key.
Relieve the pressure of pre-loaded accumulators
(springs, pressure accumulators, hydraulic cylinders)
or components loaded/pressurised by accumulators
properly prior to installation work.
After installation check if all bolts are tightly
seated.Carry out a function test.

TABLE OF CONTENTS:

CLAAS Telehandler SCORPION 9055 7055 7050 7044 7035 7030 6035 6030 Tilt ram lock Fitting Instructions Manual_DE_EN_FR_IT_ES_RU

1 Montageanleitung10
11 Kippzylindersperre10
Dokument:10
Version10
Gültig für Fahrzeug-Typ:10
Nachrüstsatz-Nr10
Beschreibung10
Qualifikation10
Übersicht: Hilfsmittel10
Vorbereitungsarbeiten10
Montage Elektrik Kabine11
Inbetriebnahme11
1 Assembly instructions12
11 Tilt ram lock12
Document:12
Version12
Valid for machine model:12
Retrofit kit no12
Description12
Qualification12
Tools (overview)12
Preparatory work12
Installing the electrical components of the cabin13
Putting into operation13
1 Instructions d’assemblage14
11 Verrouillage du vérin de cavage14
Document :14
Version14
Valable pour modèle :14
N° du kit de rattrapage14
Description14
Qualification14
Vue d’ensemble des outils14
Travaux préparatoires14
Installer les composants électriques de la cabine15
Mise en marche15
