Claas Telehandler SCORPION 9055 (Australian version) Operator’s Manual – PDF DOWNLOAD

Description

Claas Telehandler SCORPION 9055 (Australian version) Operator’s Manual – PDF DOWNLOAD

DESCRIPTION:

Claas Telehandler SCORPION 9055 (Australian version) Operator’s Manual – PDF DOWNLOAD

1 Foreword
1.1 Operator’s Manual
Important information on the operating personnel

• This Operator’s Manual applies to the 416-05 telehandler and is only intended for use by the operator. It provides instructions on the use, the adjustment, the operation and the maintenance of the machine. Before performing machine travel or operation for the first time, the user must be briefed on this machine and must carefully read and understand this
• Operator’s Manual, in particular chapter “Safety instructions”. Work on the machine may only be performed by trained and instructed personnel that has been authorized by the operating company. Any person involved in operation, inspection, maintenance, servicing, repair work or transport of the machine must read, understand and follow the complete
• instructions in the Operator’s Manual and in particular the safety instructions. The buyer/operating company is responsible for the operators’ training in safe working on and with the machine. CLAAS KGaA mbH recommends repeating training at regular intervals. The buyer/operating company is responsible for ensuring that any additional safety regulations applicable
• in the country of use of the machine are followed. The machine may only be operated by persons who are physically, mentally and professionally suited for this work. Persons under the influence of alcohol or drugs may not use the machine. The operator is the person performing machine operation and/or travel.

• Before putting the machine into operation, the operator of the machine must ensure that it is in a perfect condition, and during operation he must pay attention to the regulations regarding operation.

• The operator is responsible for ensuring that the machine and its use do not constitute a risk.

• Before working with the machine, the operator must familiarize himself with all the control elements and their functions, and with the handling of the machine.

Important information on this Operator’s Manual

• The Operator’s Manual and amendments form part of the machine and must always be available at the place of use of the machine.

• Store this Operator’s Manual in the storage compartment or net provided for this in the cabin.

• Immediately replace an incomplete or illegible Operator’s Manual by a new one.

• In addition to the Operator’s Manual, observe and instruct the operator in all other generally applicable, legal and other mandatory regulations relevant to accident prevention and environmental protection.

• Please contact CLAAS KGaA mbH if you require more information on the machine and the Operator’s Manual.

• CLAAS KGaA mbH keep abreast of the latest technical developments and constantly improve their products. For this reason, we may from time to time need to make changes to figures and descriptions in this documentation which do not reflect products that have already been delivered and that will not be implemented on these machines.

• Technical data, dimensions and weights are only given as an indication. Responsibility for errors or omissions not accepted.

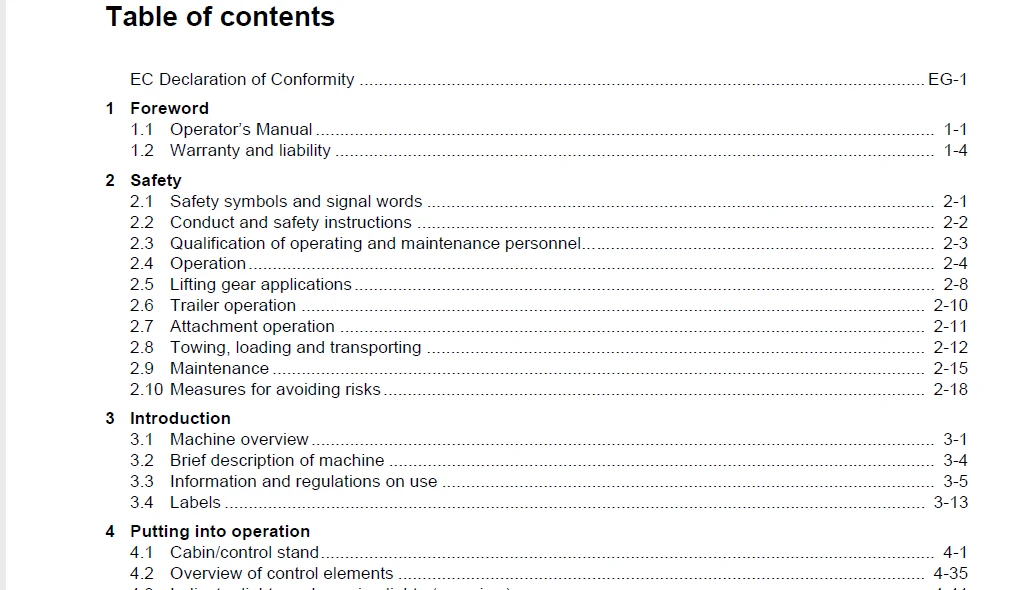

TABLE OF CONTENTS:
