CLAAS Telehandler SCORPION 9055 Cardan shaft joint guard Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Description

CLAAS Telehandler SCORPION 9055 Cardan shaft joint guard Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

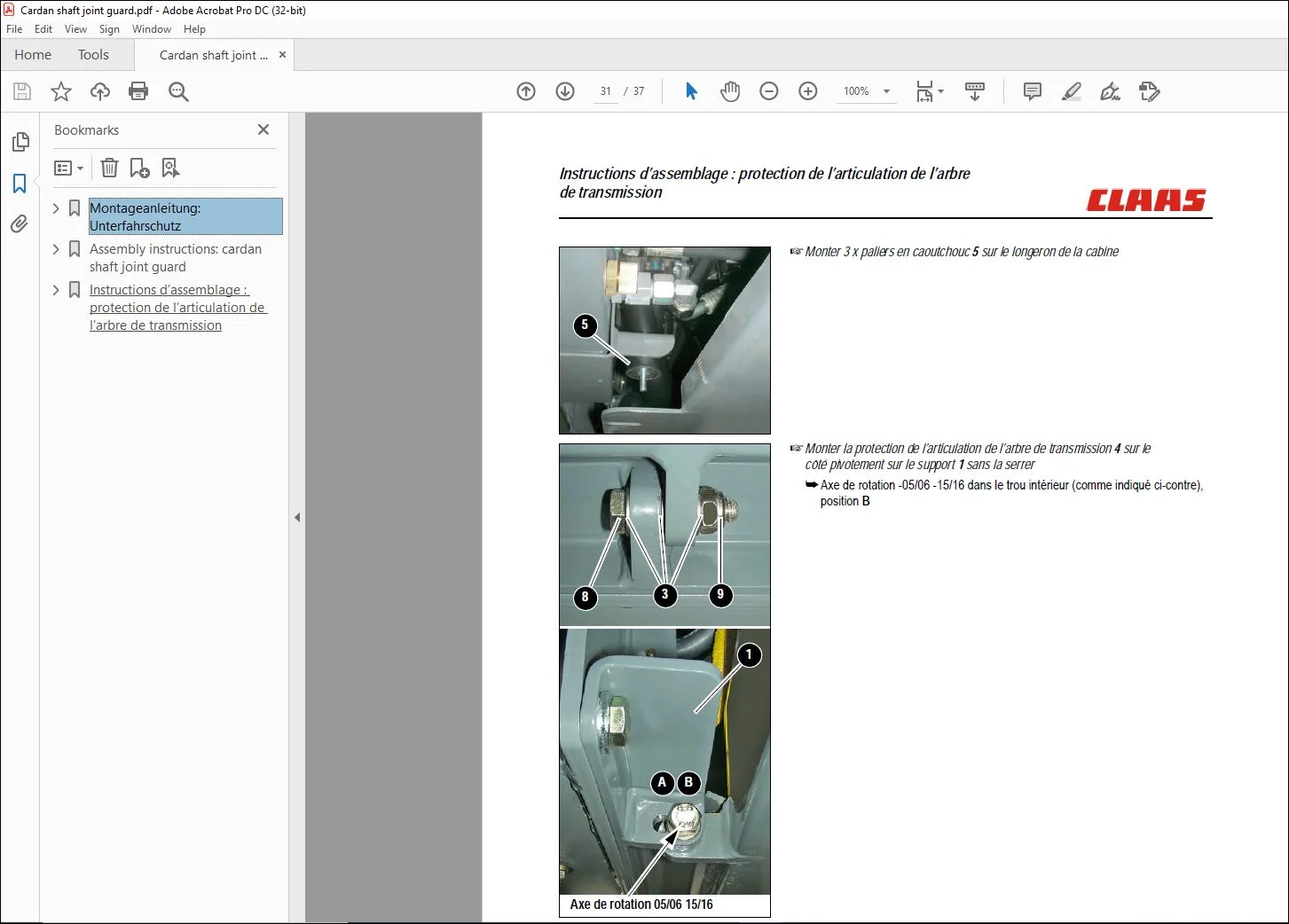

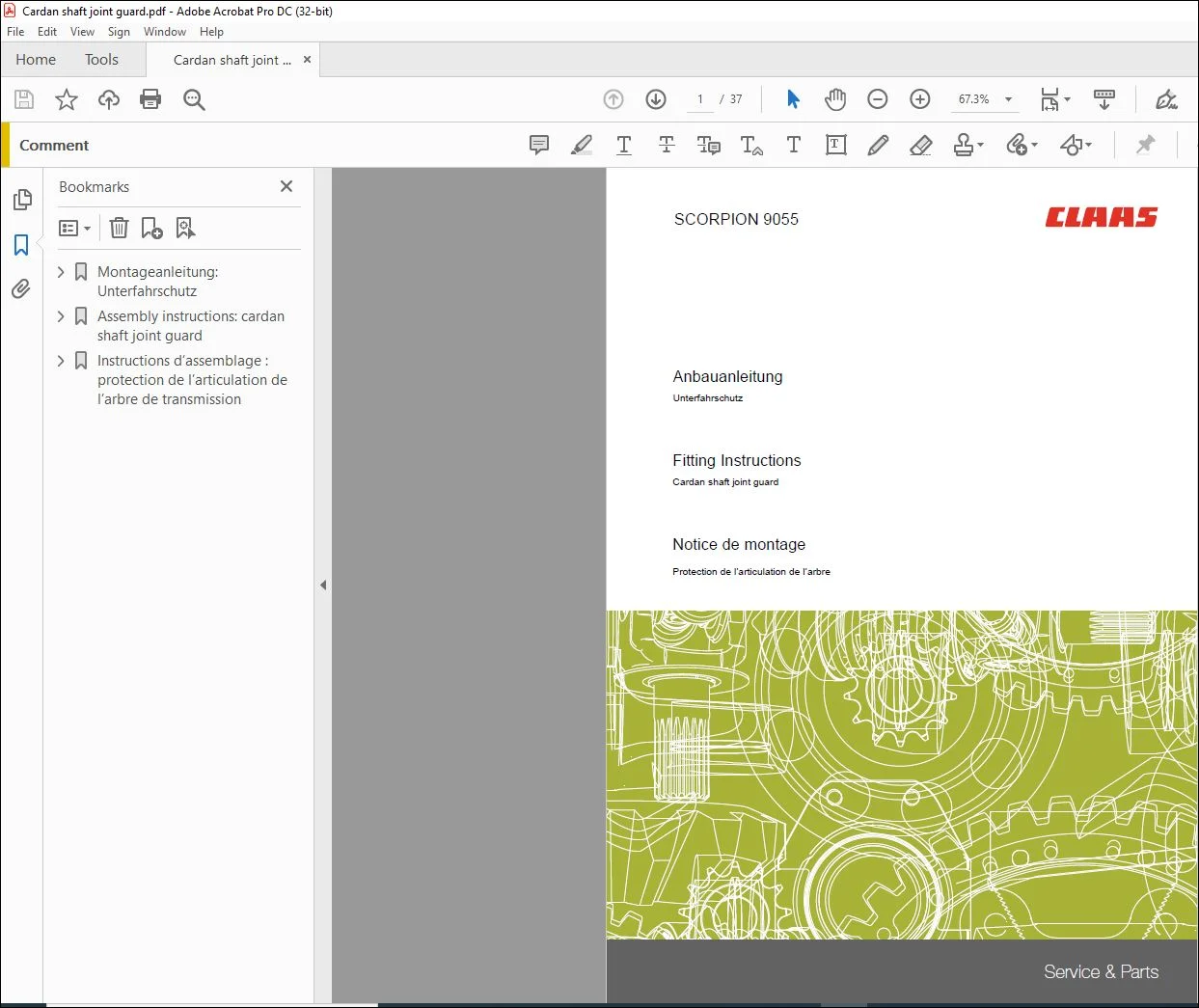

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Telehandler SCORPION 9055 Cardan shaft joint guard Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Safety

• Work may only be carried out by a qualified specialist workshop employing trained specialist workers. The general safety, accident prevention and environmental protection regulation must be observed. Before starting work on the machine, read and observe the safety precautions in the Operator’s Manual and the safety decals on the machine.
• All work must be carried out with the drive disengaged and the engine stopped! – Remove the ignition key! Carry out work beneath a raised machine/front attachment or raised components only if a safe support is provided. Before carrying out work on the hydraulic system, lower the machine/front attachment and hydraulically actuated components to the ground.
• Depressurise the system. Relieve the tension of pre-loaded energy accumulators (springs, accumulators, hydraulic cylinders) and of components which are pre-loaded by energy accumulators properly prior to starting installation work! When parts with safety decals on them are replaced, ensure that the relevant safety decals are applied again to the new
• parts. Refit any dismounted safety guards and other parts before putting back into operation and move them to their protective position. Check the tight seat of all bolts after assembly. Carry out a function test. The dimensions given follow the metric system. The corresponding U.S. dimensions are added in brackets.

TABLE OF CONTENTS:

CLAAS Telehandler SCORPION 9055 Cardan shaft joint guard Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Montageanleitung: Unterfahrschutz10
Beschreibung10
Qualifikation10
Benötigte Werkzeuge10
Übersicht11
Vorbereitungsarbeiten11
Montage12
Inbetriebnahme17
Assembly instructions: cardan shaft joint guard18
Description18
Qualification18
Necessary tools18
Overview19
Preparatory work19
Assembly20
Putting into operation25
Instructions d’assemblage : protection de l’articulation de l’arbre de transmission26
Description26
Qualification26
Outils nécessaires26
Vue d’ensemble27
Travaux préparatoires27
Montage28
Mise en marche33
