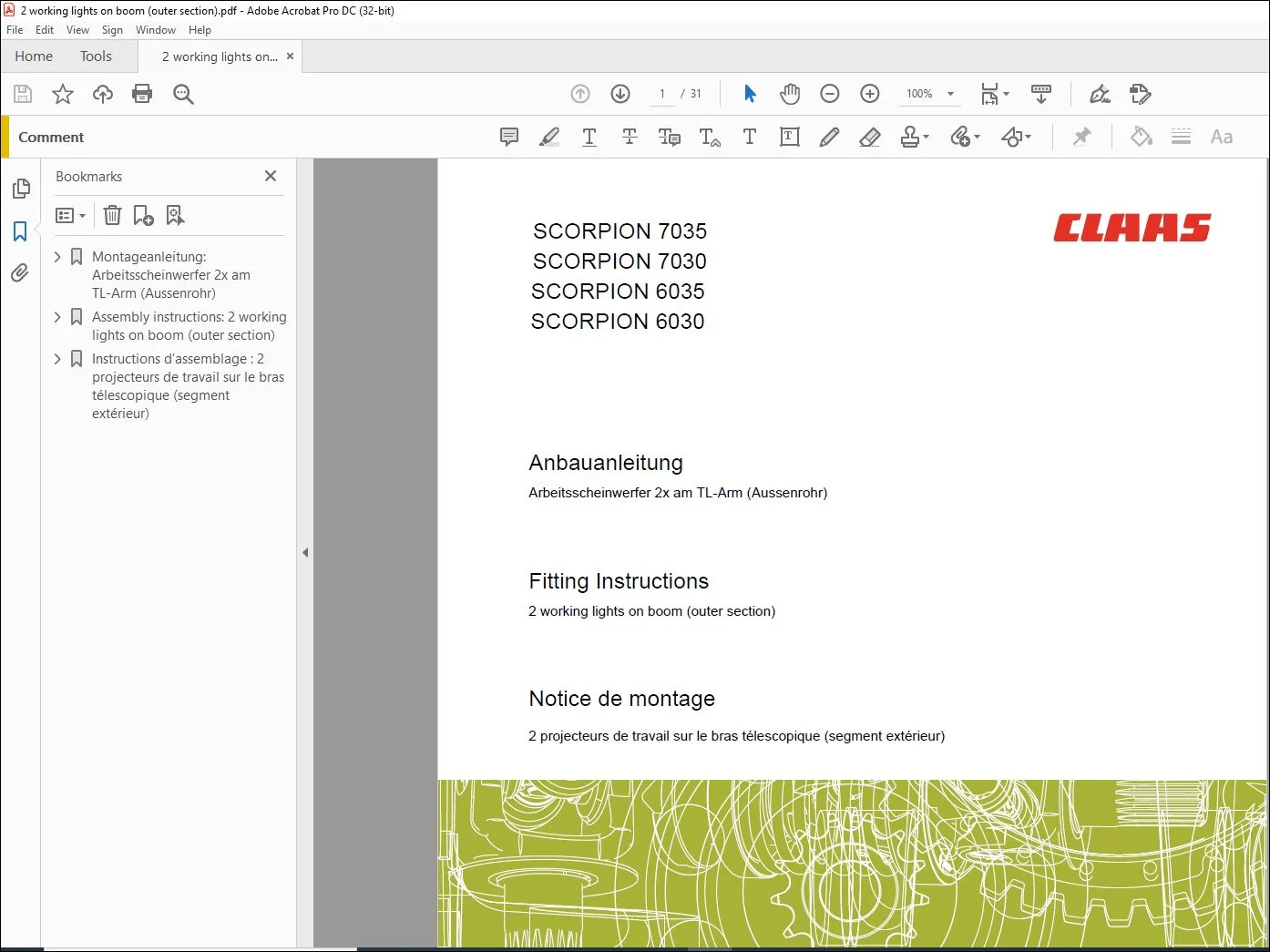

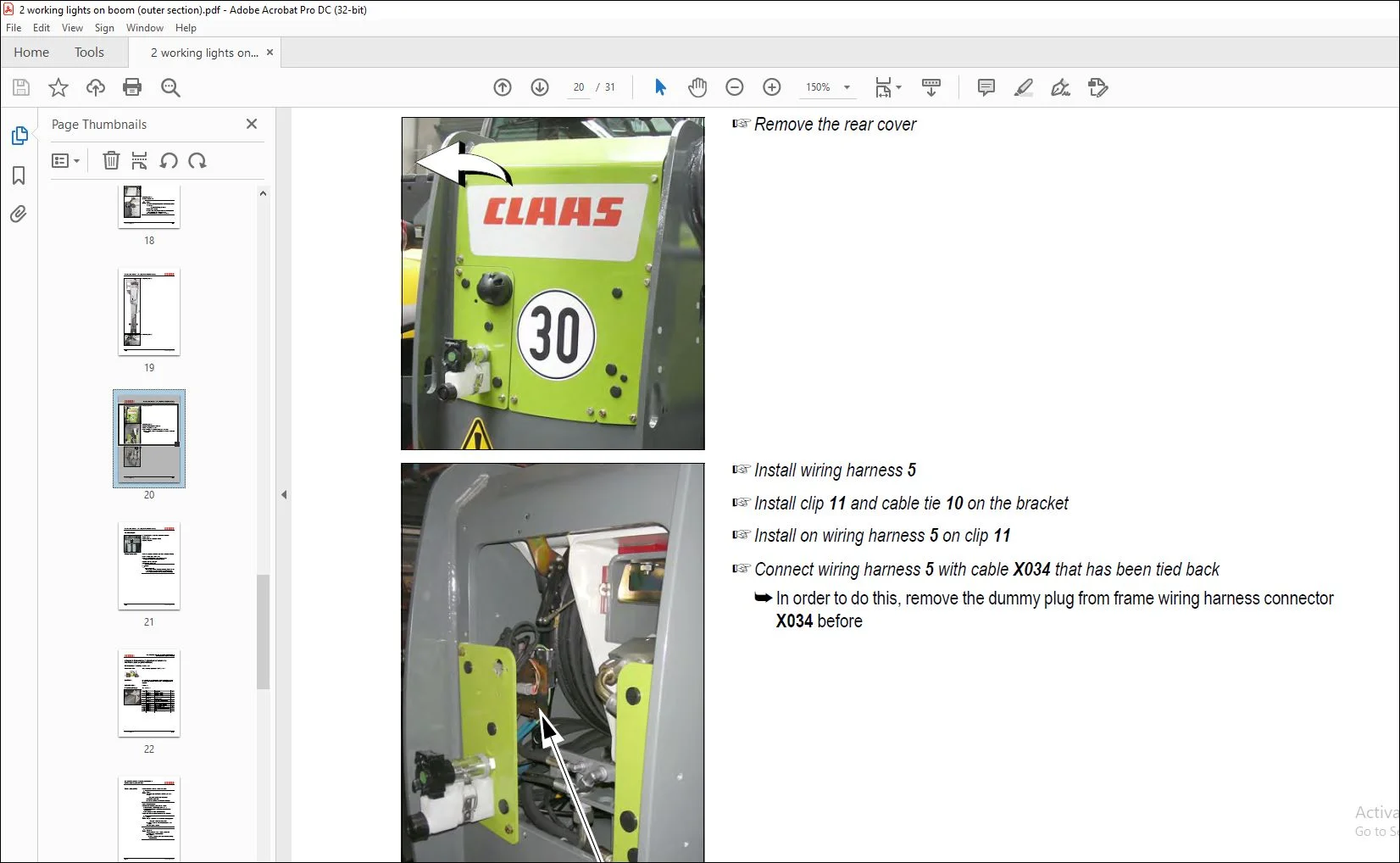

IMAGES PREVIEW OF THE MANUAL:

DESRIPTION:

CLaas Telehandlers SCORPION 7035 7030 6035 6030 2 working lights on boom (outer section)Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

SCORPION 7035
SCORPION 7030
SCORPION 6035
SCORPION 6030
Anbauanleitung
Arbeitsscheinwerfer 2x am TL-Arm (Aussenrohr)
Fitting Instructions
2 working lights on boom (outer section)
Notice de montage
2 projecteurs de travail sur le bras télescopique (segment extérieur)

Safety precautions

• Work may be carried out only by specialist workshops authorised by CLAAS and having qualified personnel. Observe the general safety, accident prevention and environmental regulations. Read and observe the Safety chapter in the Operator’s manual. Carry out work under the jacked-up/raised machine/ front attachment or under raised components only if a safe
• support is provided. Lower hydraulically actuated components down to the ground before working on the hydraulic system. Relieve the system pressure. Carry out work on the machine only with the drive disengaged and the engine stopped! Remove the ignition key. Relieve the pressure of pre-loaded accumulators (springs, pressure accumulators, hydraulic
• cylinders) or components loaded/pressurised by accumulators properly prior to installation work. After installation check if all bolts are tightly seated.Carry out a function test

TABLE OF CONTENTS:

CLaas Telehandlers SCORPION 7035 7030 6035 6030 2 working lights on boom (outer section)Fitting lnstructions Manual_DE_EN_FR – PDF DOWNLOAD

Montageanleitung: Arbeitsscheinwerfer 2x am TL-Arm (Aussenrohr)10
Qualifikation10
Benötigte Werkzeuge10
Vorbereitungsarbeiten11
Montage12
Montage in Fahrerkabine15
Inbetriebnahme15
Assembly instructions: 2 working lights on boom (outer section)16
Qualification16
Necessary tools16
Preparatory work17
Assembly18
Assembly in cabin21
Putting into operation21
Instructions d’assemblage : 2 projecteurs de travail sur le bras télescopique (segment extérieur)22
Qualification22
Outils nécessaires22
Travaux préparatoires23
Montage24
Montage dans la cabine27
Mise en marche27
