CLAAS Telehandlers SCORPION 9055 7055 7050 7044 Rinse instructions for hydraulic system Fitting Instructions Manual_DE_EN_FR

Description

CLAAS Telehandlers SCORPION 9055 7055 7050 7044 Rinse instructions for hydraulic system Fitting Instructions Manual_DE_EN_FR

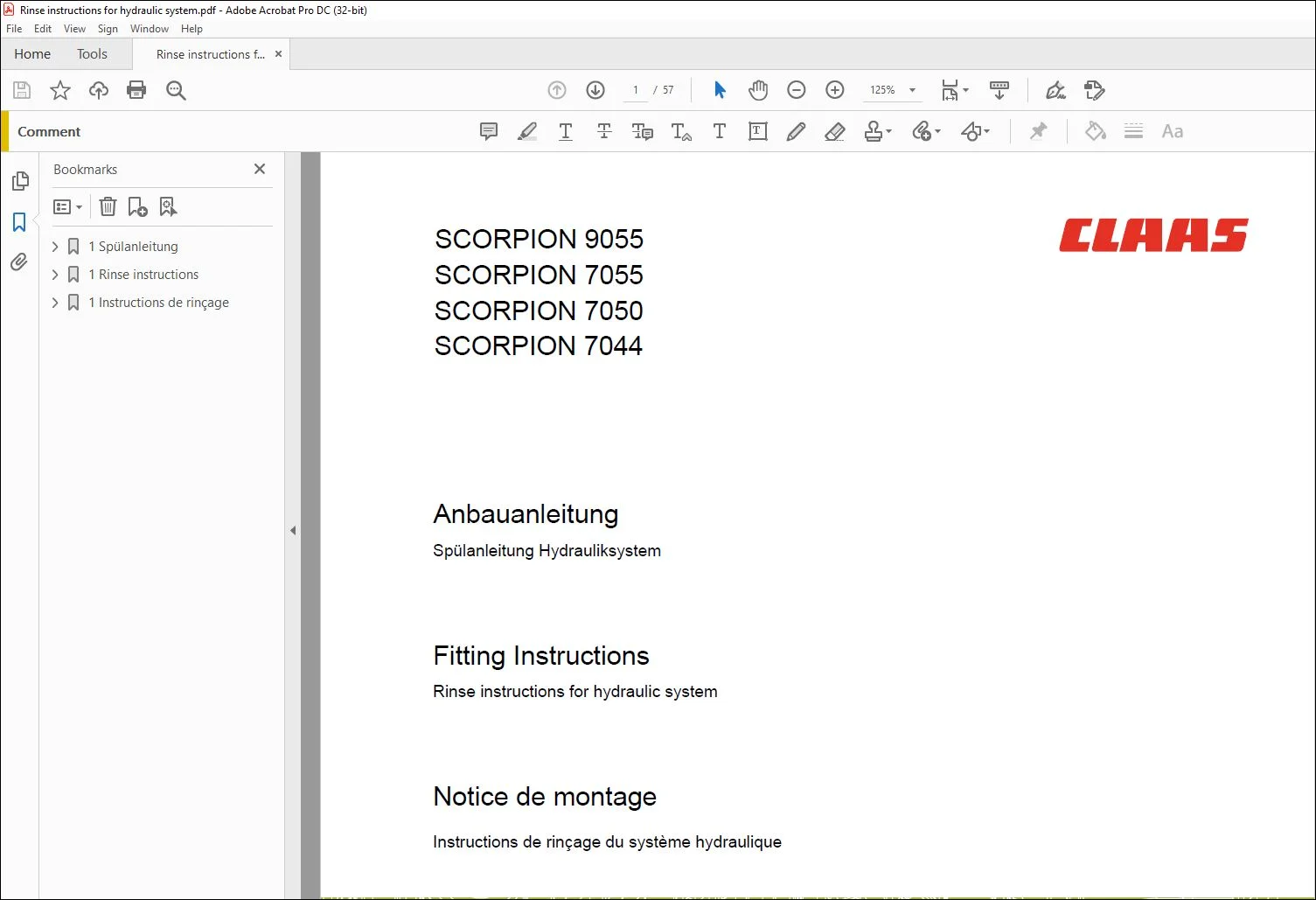

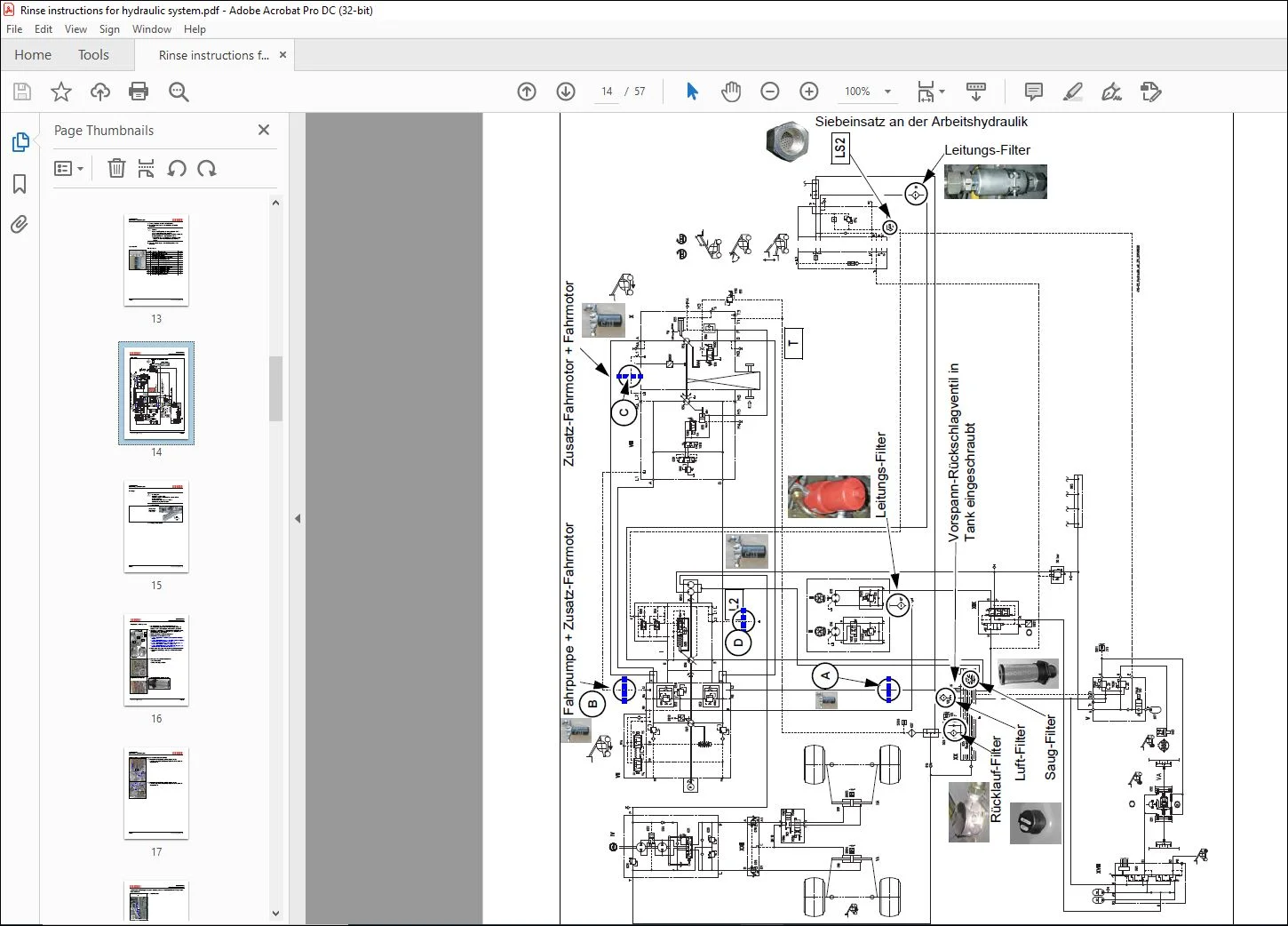

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Telehandlers SCORPION 9055 7055 7050 7044 Rinse instructions for hydraulic system Fitting Instructions Manual_DE_EN_FR

Anbauanleitung
Spülanleitung Hydrauliksystem
Fitting Instructions
Rinse instructions for hydraulic system
Notice de montage
Instructions de rinçage du système hydraulique

Safety

• Work may only be carried out by a qualified specialist workshop employing trained specialist workers. The general safety, accident prevention and environmental protection regulation must be observed. Before starting work on the machine, read and observe the safety precautions in the Operator’s Manual and the safety decals on the machine.
• All work must be carried out with the drive disengaged and the engine stopped! – Remove the ignition key! Carry out work beneath a raised machine/front attachment or raised components only if a safe support is provided. Before carrying out work on the hydraulic system, lower the machine/front attachment and hydraulically actuated components to the ground.
• Depressurise the system. Relieve the tension of pre-loaded energy accumulators (springs, accumulators, hydraulic cylinders) and of components which are pre-loaded by energy accumulators properly prior to starting installation work! When parts with safety decals on them are replaced, ensure that the relevant safety decals are applied again to the new
• parts. Refit any dismounted safety guards and other parts before putting back into operation and move them to their protective position. Check the tight seat of all bolts after assembly. Carry out a function test. The dimensions given follow the metric system. The corresponding U.S. dimensions are added in brackets.

TABLE OF CONTENTS:

CLAAS Telehandlers SCORPION 9055 7055 7050 7044 Rinse instructions for hydraulic system Fitting Instructions Manual_DE_EN_FR

1 Spülanleitung10
11 Spülanleitung Hydrauliksystem10
Dokument:10
Gültig für Fahrzeug-Typ:10
Beschreibung10
Qualifikation10
Übersicht: Hilfsmittel Filter11
Vorbereitungsarbeiten12
Spülsatz-Nr13
Übersicht14
Montage15
Eingebaute Filter prüfen16
Leitungsfilter in Leckölleitung der Fahrpumpe montieren17
Leitungsfilter-Montage in Lecköl-Leitung von der Arbeitshydraulik-Pumpe zum Hydrauliktank18
Leitungsfilter-Montage in Querspülungs-Leitung von der Fahrpumpe zum Zusatz-Fahrmotor19
Leitungsfilter-Montage in Querspülungs-Leitung von dem Zusatz-Fahrmotor zum Fahrmotor21
Spülablauf22
Abschluss Spüllauf22
Inbetriebnahme23
1 Rinse instructions24
11 Rinse instructions for hydraulic system24
Document:24
Valid for machine model:24
Description24
Qualification24
Tools for filter (overview)25
Preparatory work26
Rinsing set no27
Overview28
Assembly29
Checking the installed filters30
Installing the line filter in the leak-oil line of the hydraulic pump31
Installing the line filter in the leak-oil line from the operating hydraulics pump to the hydraulic oil reservoir32
Installing the line filter in the case flushing line from the hydraulic pump to the additional hydraulic motor33
Installing the line filter in the case flushing line from the additional hydraulic motor to the hydraulic motor35
Rinsing36
End of rinsing36
Putting into operation37
1 Instructions de rinçage38
11 Instructions de rinçage du système hydraulique38
Document :38
Valable pour modèle :38
Description38
Qualification38
Vue d’ensemble des outils pour le filtre39
Travaux préparatoires40
N° de jeu de rinçage41
Vue d’ensemble42
Montage43
Vérifier les filtres installés44
Monter le filtre de conduite dans la conduite de fuite de la pompe de transmission45
Monter le filtre de conduite dans la conduite d’huile de fuite, depuis la pompe de l’hydraulique de travail vers le réservoir d’huile hydraulique46
Monter le filtre de conduite dans la conduite de balayage transversal, depuis la pompe de transmission vers le moteur de transmission supplémentaire47
Monter le filtre de conduite dans la conduite de balayage transversal, depuis le moteur de transmission supplémentaire vers le moteur de transmission49
Le rinçage50
Fin du rinçage50
Mise en marche52

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
