Claas TRAILER DIRECT DISC 610, 520 Contour, 520 Comfort Operator’s Manual

Description

Claas TRAILER DIRECT DISC 610, 520 Contour, 520 Comfort Operator’s Manual – PDF DOWNLOAD

DESCRIPTION:

Claas TRAILER DIRECT DISC 610, 520 Contour, 520 Comfort Operator’s Manual – PDF DOWNLOAD

INTRODUCTION :

This operator’s manual provides information concerning the use, adjustment and operation of the CLAAS trailer for the CLASS front attachment “DIRECT DISC 610 / 520”.

• Please read this manual thoroughly before starting work! Pay particular attention to the section “Safety rules” and the notes concerning dangers in the operator’s manual for the front attachment or chopper.
• Follow the advice on correct maintenance and servicing in order to ensure maximum performance and a long service life of your transport wagon. This manual is only valid in combination with the “DIRECT DISC 610 / 520” operator’s manual and the applicable chopper operator’s manual.

Validity
This operator’s manual is valid for:
TRAILER DIRECT
DISC 610 / 520 Contour / 520 Comfort
Type 469
from serial number 469 0 0001.

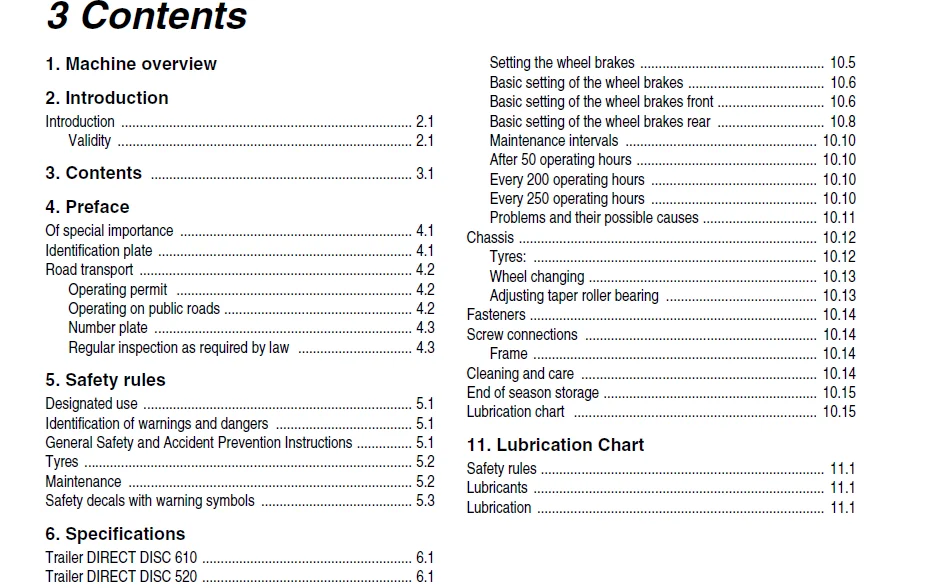

TABLE OF CONTENTS:

Claas TRAILER DIRECT DISC 610, 520 Contour, 520 Comfort Operator’s Manual – PDF DOWNLOAD

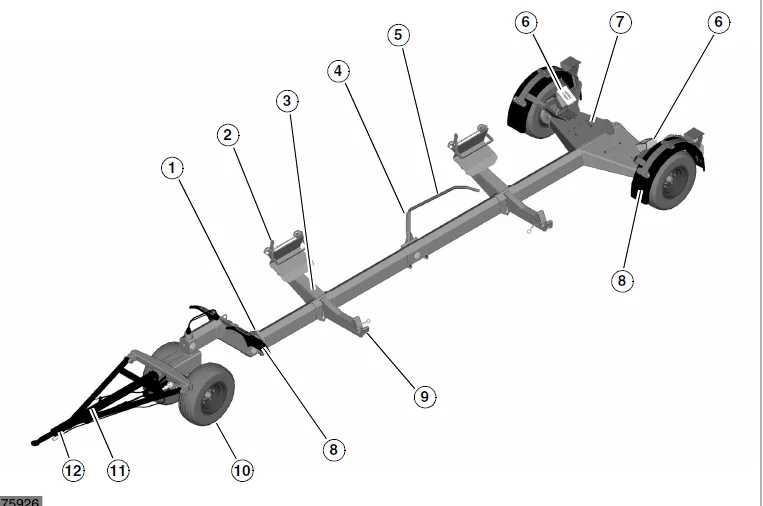

1 Machine overview
2 Introduction
Introduction 2 1
Validity 2 1
3 Contents 3 1
4 Preface
Of special importance 4 1
Identification plate 4 1
Road transport 4 2
Operating permit 4 2
Operating on public roads 4 2
Number plate 4 3
Regular inspection as required by law 4 3
5 Safety rules
Designated use 5 1
Identification of warnings and dangers 5 1
General Safety and Accident Prevention Instructions 5 1
Tyres 5 2
Maintenance 5 2
Safety decals with warning symbols 5 3
6 Specifications
Trailer DIRECT DISC 610 6 1
Trailer DIRECT DISC 520 6 1
7 Assembly
Loading/unloading trailer 7 1
Assembling trailer 7 2
Check dimensions 7 4
8 Prior to operation
Check and observe the following before operation 8 1
9 Operation
Place the front attachment on the trailer 9 1
Removing the front attachment from the trailer 9 5
Hitching transport wagon 9 6
Unhitching transport wagon 9 7
Wheel chocks 9 8
10 Maintenance
Important Maintenance Instructions 10 1
Wheels / tyres 10 1
Brakes and axles 10 1
Chassis 10 1
Bolts 10 1
Fasteners 10 1
Lubrication 10 1
Braking system 10 2
General information 10 2
Function of reverse automatic system 10 3
Operating and handling 10 4
Setting the wheel brakes 10 5
Basic setting of the wheel brakes 10 6
Basic setting of the wheel brakes front 10 6
Basic setting of the wheel brakes rear 10 8
Maintenance intervals 10 10
After 50 operating hours 10 10
Every 200 operating hours 10 10
Every 250 operating hours 10 10
Problems and their possible causes 10 11
Chassis 10 12
Tyres: 10 12
Wheel changing 10 13
Adjusting taper roller bearing 10 13
Fasteners 10 14
Screw connections 10 14
Frame 10 14
Cleaning and care 10 14
End of season storage 10 15
Lubrication chart 10 15
11 Lubrication Chart
Safety rules 11 1
Lubricants 11 1
Lubrication 11 1

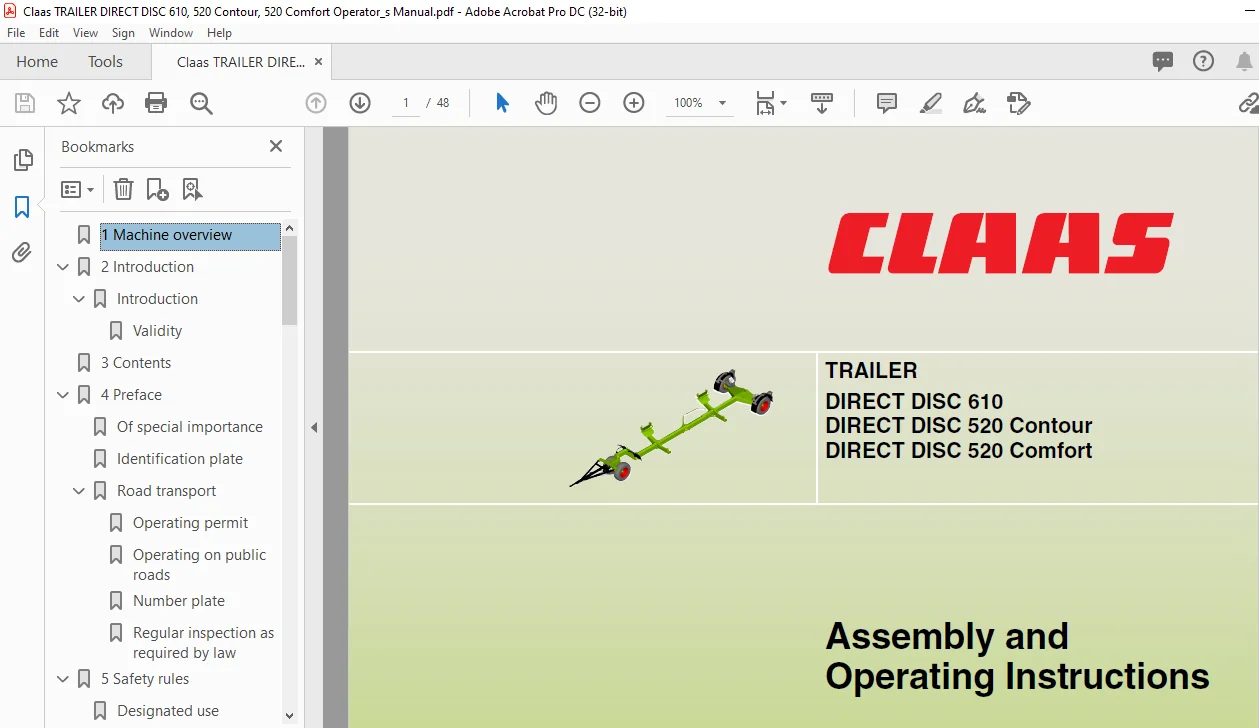

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
