Claas Tucano 480 470 Straw chopper for maize grain Operator’s Manual – PDF DOWNLOAD

Description

Claas Tucano 480 470 Straw chopper for maize grain Operator’s Manual – PDF DOWNLOAD

DESCRIPTION:

Claas Tucano 480 470 Straw chopper for maize grain Operator’s Manual – PDF DOWNLOAD

The present fitting and operating instructions are primarily intended for the machine operator and provide information about how to fit and operate the product. Moreover, they describe how to fit the parts listed in the shipping package chapter. In the Installation chapter, existing parts are marked by letters and new parts by numbers to provide better orientation.

• Provided you follow the advice on care and servicing of your product, you will be rewarded with reliable and long service from your product. Please have the regular inspections carried out by your CLAAS specialist workshop.
• Omissions of parts of the maintenance schedule or incorrect operation lead to a drop in performance and cost valuable time. By correct operation and servicing you can make full use of our sound experience and of the latest technical knowledge with which your product has been designed, thus ensuring reliability of your product.

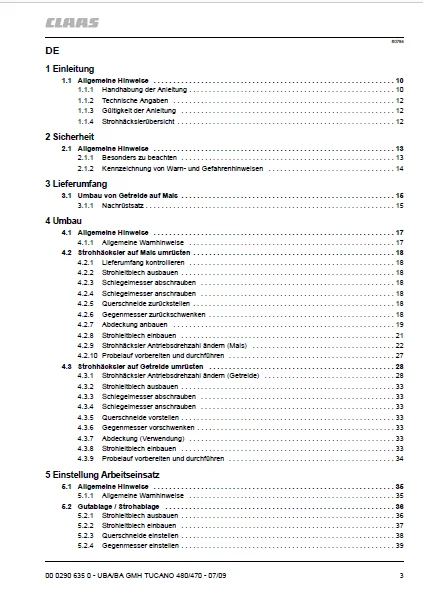

TABLE OF CONTENTS:

Claas Tucano 480 470 Straw chopper for maize grain Operator’s Manual – PDF DOWNLOAD

1 Introduction
1 1 General Information 42
1 1 1 How to use this manual 42
1 1 2 Specifications 44
1 1 3 Validity of manual 44
1 1 4 Straw chopper overview 44
2 Safety
2 1 General Information 45
2 1 1 Important information 45
2 1 2 Identification of warning and danger signs 46
3 Package list
3 1 Conversion from grain to maize 47
3 1 1 Supplementary kit 47
4 Conversion
4 1 General Information 49
4 1 1 General warnings 49
4 2 Converting the straw chopper to maize 50
4 2 1 Checking the shipping package 50
4 2 2 Removing the straw guide plate 50
4 2 3 Unscrewing the free-swinging knives 50
4 2 4 Bolting down the free-swinging knives 50
4 2 5 Setting the cross blade back 50
4 2 6 Swinging back the stationary knives 50
4 2 7 Fitting the cover 51
4 2 8 Installing the straw guide plate 53
4 2 9 Changing the straw chopper drive speed (maize) 54
4 2 10 Prepare and carry out a test run 59
4 3 Converting the straw chopper to grain 60
4 3 1 Changing the straw chopper drive speed (grain) 60
4 3 2 Removing the straw guide plate 65
4 3 3 Unscrewing the free-swinging knives 65
4 3 4 Bolting down the free-swinging knives 65
4 3 5 Setting the cross blade forward 65
4 3 6 Setting the stationary knives forward 65
4 3 7 Cover (use) 65
4 3 8 Installing the straw guide plate 65
4 3 9 Prepare and carry out a test run 66
5 Fieldwork settings
5 1 General Information 67
5 1 1 General warnings 67
5 2 Crop receptacle / straw receptacle 68
5 2 1 Removing the straw guide plate 68
5 2 2 Installing the straw guide plate 69
5 2 3 Adjusting the cross blade 70
5 2 4 Adjusting the stationary knives 71
