CLAAS VARIANT 260 VARIANT 280 ACTIV HYDRAULICS ASSEMBLY INSTRUCTIONS Manual_DE_EN_FR_IT

Description

CLAAS VARIANT 260 VARIANT 280 ACTIV HYDRAULICS ASSEMBLY INSTRUCTIONS Manual_DE_EN_FR_IT – PDF DOWNLOAD

DESCRIPTION:

CLAAS VARIANT 260 VARIANT 280 ACTIV HYDRAULICS ASSEMBLY INSTRUCTIONS Manual_DE_EN_FR_IT – PDF DOWNLOAD

Introduction

These instructions describe the work to do to fit the balers Variant 260/280 with activ hydraulics. The »SAFETY RULES« in the operator’s manual must be observed

Important note

• In order to avoid any dangers all information in these instructions must be read and applied by all persons using, servicing, repairing or inspecting this machine/attachment. Especially the »SAFETY RULES« in this manual should be read with the utmost care and the accident prevention regulations of your country should be observed. Before starting the work, establish
• if all tools and equipment are at hand. Compare the machine type/attachment type at hand with the list in section »Delivery list« and the delivered spare parts set. The specifications of the parts, e.g. for bolts, can be found in the »Delivery list«. In this list, every mounting part has a position number (pos.-no.). Parts such as nuts and contact washers do not have a position number. These parts belong to the position number of the bolt with which they are mounted.
• Further data describing these parts are the spare part-no., the designation, the dimensions, the DIN and the quantity. In the installation instructions, the current parts are marked with letters and the new parts with numbers (position numbers) for easier orientation.
• Texts and pictures have been kept neutral whenever possible. Text references point out the differences between the individual types.
• Technical data, dimensions and weights are given as an indication only. Following the policy of CLAAS to improve their products as technical developments continue, CLAAS reserve the right to make alterations. Responsibility for errors or omissions not accepted. Front, rear, right hand and left hand always refer to the machine as seen in the direction of forward travel.

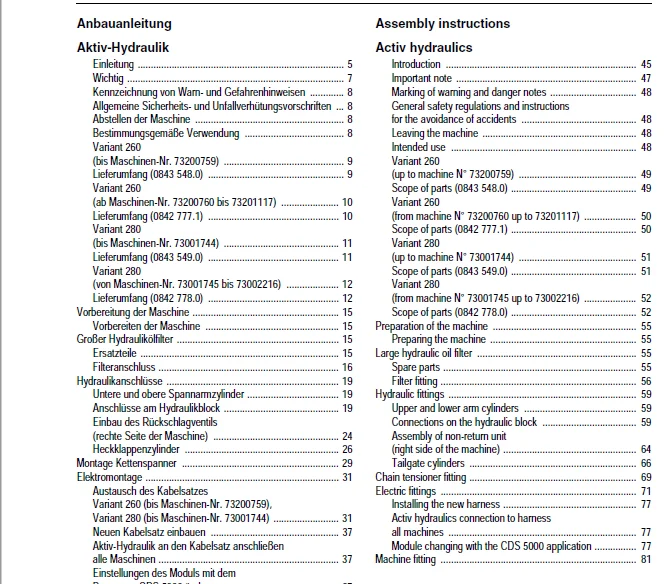

TABLE OF CONTENTS:

CLAAS VARIANT 260 VARIANT 280 ACTIV HYDRAULICS ASSEMBLY INSTRUCTIONS Manual_DE_EN_FR_IT – PDF DOWNLOAD

Introduction 45
Important note 47
Marking of warning and danger notes 48
General safety regulations and instructions
for the avoidance of accidents 48
Leaving the machine 48
Intended use 48
Variant 260
(up to machine N° 73200759) 49

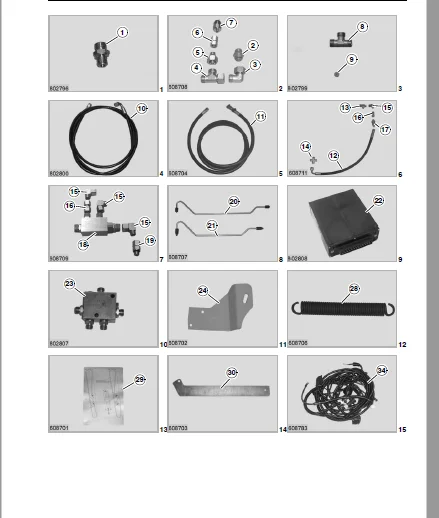

Scope of parts (0843 5480) 49
Variant 260
(from machine N° 73200760 up to 73201117) 50
Scope of parts (0842 7771) 50
Variant 280
(up to machine N° 73001744) 51
Scope of parts (0843 5490) 51
Variant 280
(from machine N° 73001745 up to 73002216) 52
Scope of parts (0842 7780) 52
Preparation of the machine 55
Preparing the machine 55
Large hydraulic oil filter 55
Spare parts 55
Filter fitting 56
Hydraulic fittings 59
Upper and lower arm cylinders 59
Connections on the hydraulic block 59
Assembly of non-return unit
(right side of the machine) 64
Tailgate cylinders 66
Chain tensioner fitting 69
Electric fittings 71
Installing the new harness 77
Activ hydraulics connection to harness
all machines 77
Module changing with the CDS 5000 application 77
Machine fitting

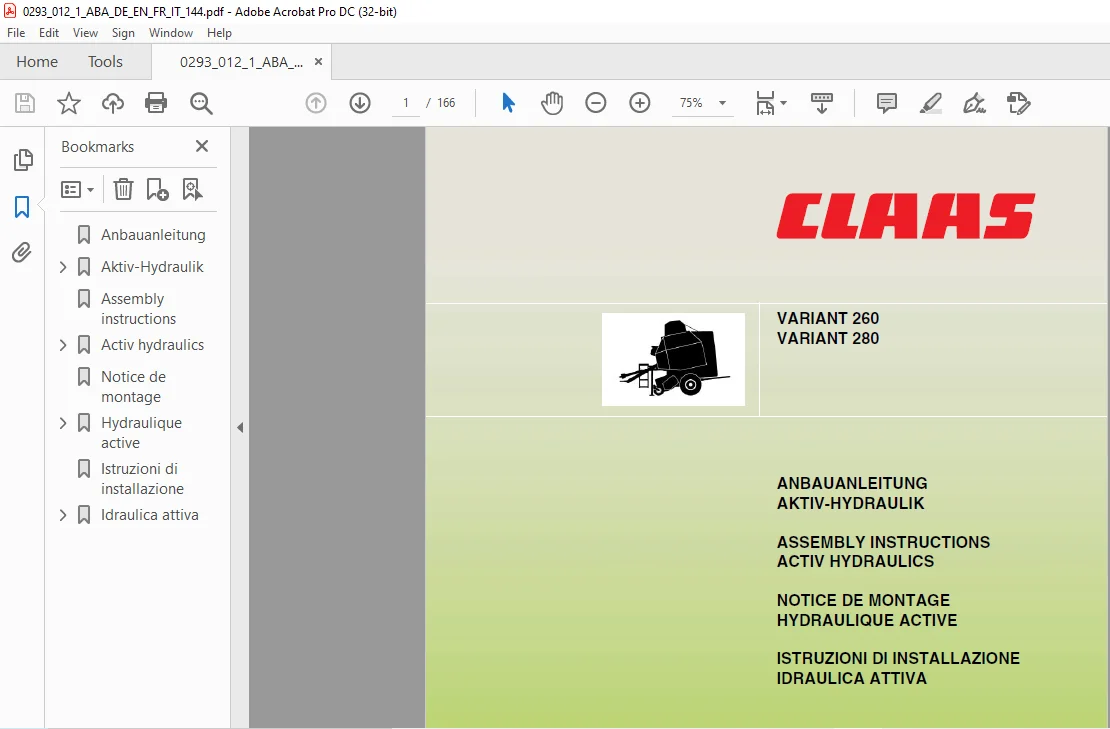

IMAGES PREVIEW OF THE MANUAL:
