Claas VARIANT 350 VARIANT 370 VARIANT 360 – 365 VARIANT 380 – 385 Guard rail kit Fitting Instructions Manual_FR_EN_DE_ES_RU

Description

Claas VARIANT 350 VARIANT 370 VARIANT 360 – 365 VARIANT 380 – 385 Guard rail kit Fitting Instructions Manual_FR_EN_DE_ES_RU

DESCRIPTION:

Claas VARIANT 350 VARIANT 370 VARIANT 360 – 365 VARIANT 380 – 385 Guard rail kit Fitting Instructions Manual_FR_EN_DE_ES_RU

Introduction
1.1 General points

This manual describes the procedure to follow to modify the following balers:
– VARIANT 350
– VARIANT 370
– VARIANT 360 and 365
– VARIANT 380 and 385

It is essential to follow the safety advice given in the baler manual

Safety advice
2.1 Important
2.1.1 General points

• To prevent accidents, these instructions must be read by everyone who uses the machine and who deals with maintenance, servicing or inspection. In particular, read the “For your safety” section in the operator’s manual with the utmost care.
• and observe the accident prevention regulations applicable in the country of use. Before starting work, establish that all tools and equipment are to hand. Compare the machine type (or existing accessories) with the list in the “Parts kit” section and the spare parts kit provided. The specification of the parts, e.g. for bolts, can be found in the list headed “Parts kit”.
• In this list, every part to be fitted has a position number (pos.-no.). In the assembly instructions, the existing parts are marked with letters and the new parts with numbers (position numbers) for easier orientation. Texts and pictures have been kept neutral whenever possible. Text references point out the differences between the individual types.
• Technical data, dimensions and weights are given as an indication only. Following CLAAS’s policy to improve its products as technical developments continue, CLAAS reserves the right to make alterations. Responsibility for errors or omissions not accepted. Front, rear, right-hand and left-hand always refer to the machine as seen in the direction of forward travel

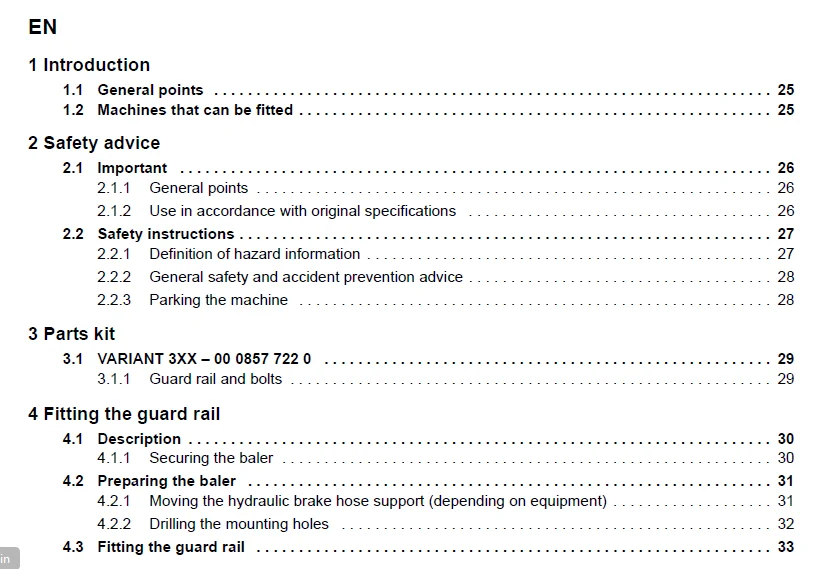

TABLE OF CONTENTS:

Claas VARIANT 350 VARIANT 370 VARIANT 360 – 365 VARIANT 380 – 385 Guard rail kit Fitting Instructions Manual_FR_EN_DE_ES_RU

1 Introduction
11 General points 25
12 Machines that can be fitted 25
2 Safety advice
21 Important 26
211 General points 26
212 Use in accordance with original specifications 26
22 Safety instructions 27
221 Definition of hazard information 27
222 General safety and accident prevention advice 28
223 Parking the machine 28
3 Parts kit
31 VARIANT 3XX – 00 0857 722 0 29
311 Guard rail and bolts 29
4 Fitting the guard rail
41 Description 30
411 Securing the baler 30
42 Preparing the baler 31
421 Moving the hydraulic brake hose support (depending on equipment) 31
422 Drilling the mounting holes 32
43 Fitting the guard rail 33

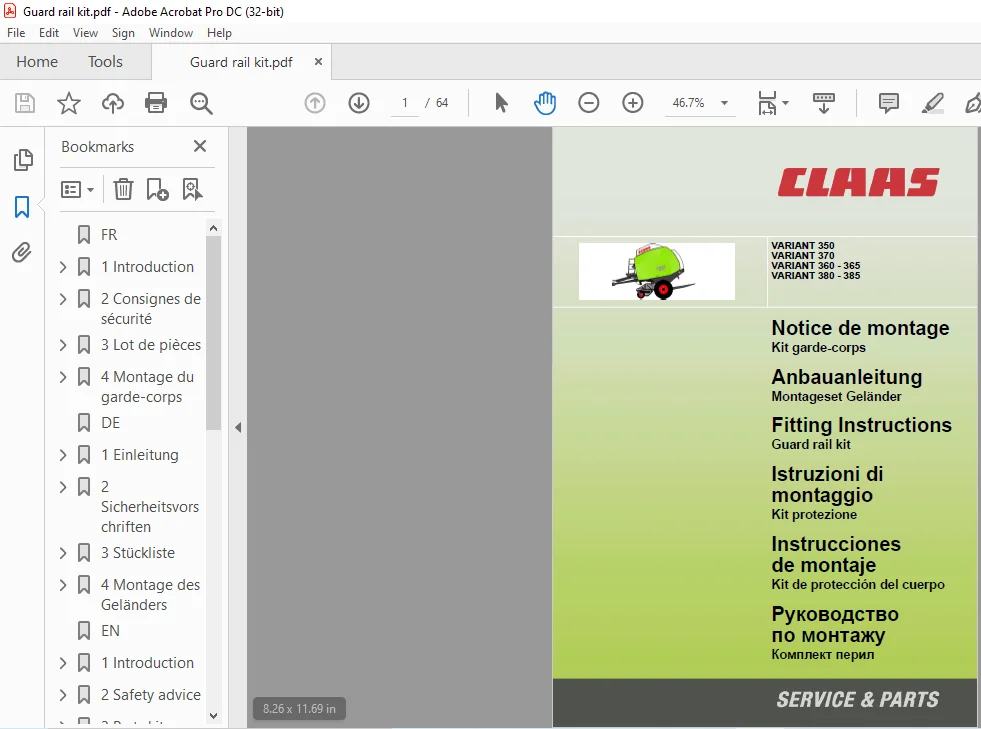

IMAGES PREVIEW OF THE MANUAL:

CLAAS VARIANT 350 VARIANT 370 VARIANT 360 – 365 VARIANT 380 – 385 GUARD RAIL KIT FITTING INSTRUCTIONS MANUAL_FR_EN_DE_ES_RU:
