CLAAS VARIO 5.40 – 9.00 M LEXION 480 – 410 Multi Coupling Conversion instructions Manual_DE_FR_GB

Description

CLAAS VARIO 5.40 – 9.00 M LEXION 480 – 410 Multi Coupling Conversion instructions Manual_DE_FR_GB

DESCRIPTION:

CLAAS VARIO 5.40 – 9.00 M LEXION 480 – 410 Multi Coupling Conversion instructions Manual_DE_FR_GB

INTRODUCTION

These instructions describe the safe and timesaving work sequence for conversion of the multi coupling. Retrofitting the Vario cutterbars 5.40 – 9.00 m for the LEXION 480 – 410 combine harvesters, with the supplementary kit part no. 0517 930.0, is possible from the machine number range 71600011. The standard mounting time is approx. 1.5 man hour. See page 4.1 for the shipping package. Observe the „Safety Rules“ in the applicable operator’s manual

General information
IMPORTANT

• The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the „Safety Rules“ in the operator’s manual should be read with the utmost care and adhered to. In addition, please also observe
• the accident prevention regulations that apply for your own country. Before commencing with the job, ensure that all the tools and service aids are available. Compare existing machine type/front attachment type with the list in the chapter
• „Shipping Package“ and the parts kit supplied. The specification of the components, e.g. bolts, is shown on the shipping package. The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number.
• Additional part specifications are the parts no., description, measurements, DIN and the quantity. In order to help with the assembly, existing components in the instructions are identified with letters, whereas new parts have been identified with a number (position number).
• The text and pictures were kept neutral as far as possible. Differences between the individual types are mentioned in the text. Technical data, dimensions and weights are given as an indication only. CLAAS reserve the right to make changes subsequently as technical developments continue. Responsibility for errors or omissions not accepted. Front, rear, right and left refer to the direction of forward travel.

TABLE OF CONTENTS:

CLAAS VARIO 5.40 – 9.00 M LEXION 480 – 410 Multi Coupling Conversion instructions Manual_DE_FR_GB

1 Introduction
Introduction 1 1
2 Contents
Contents 2 1
3 General information
Important 3 1
Identification of warnings and danger signs 3 2
Correct use 3 2
4 Shipping Package
Shipping Package 4 1
Conversion kit 0517 930 0 4 1
5 Conversion
Converting the multi coupling 5 1
Converting the inductive sender 5 1
Converting the hydraulic equipment of the multi coupling 5 3
Converting the multi coupling 5 4
Replacing the wiring loom 5 6
Preparing and performing the test run 5 8

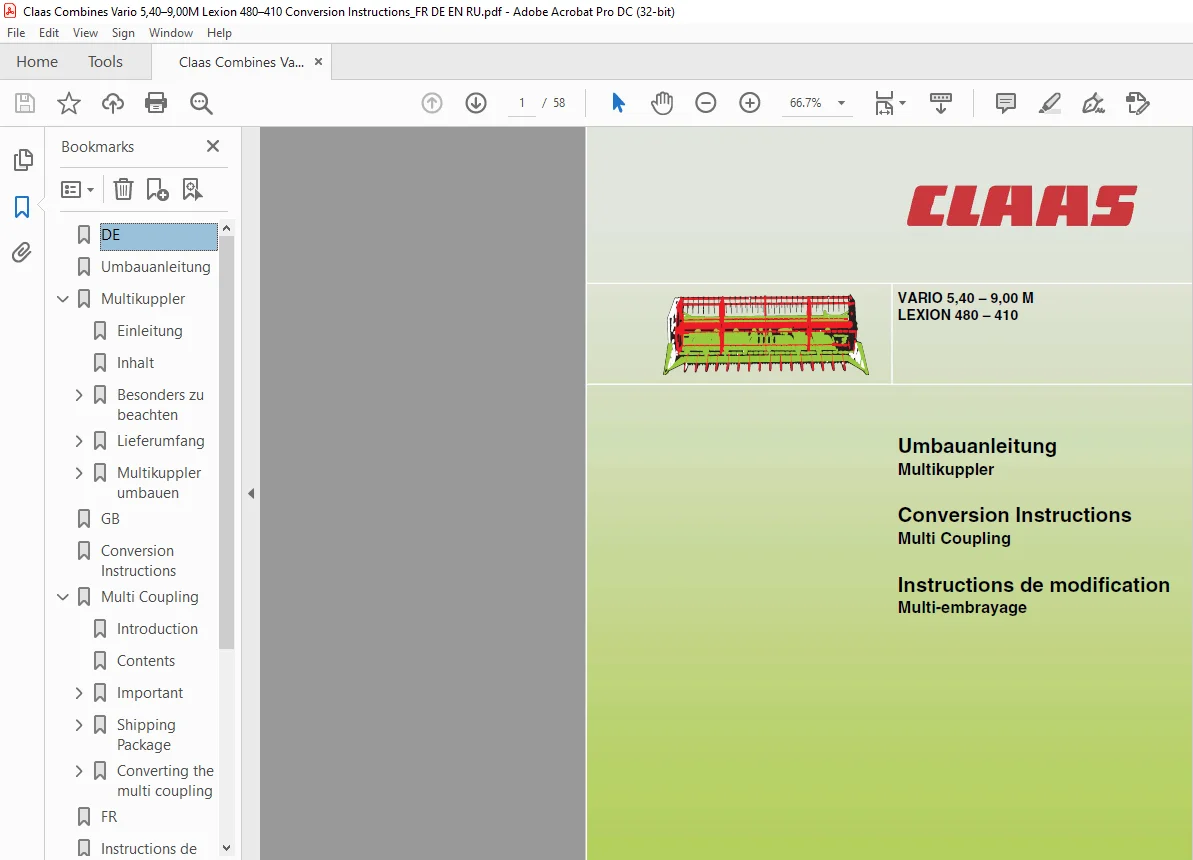

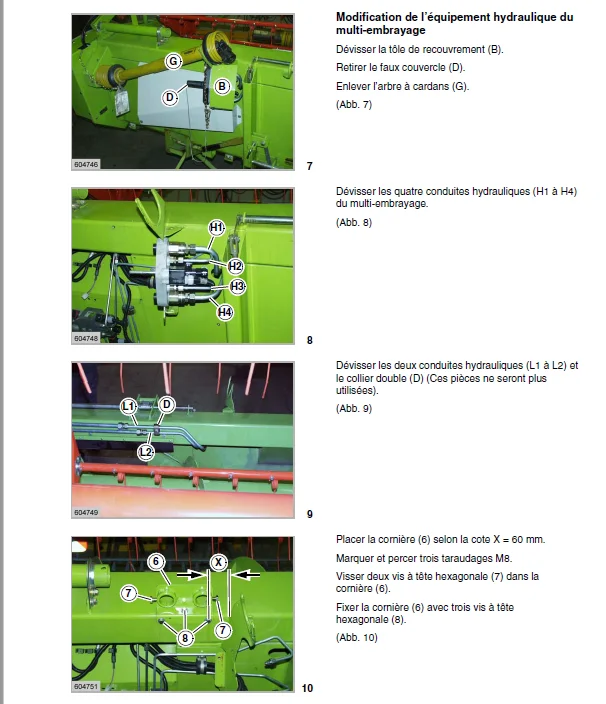

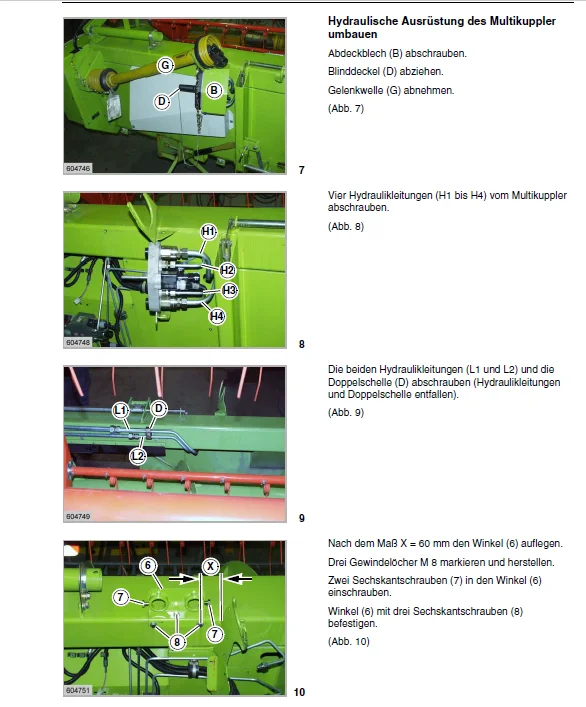

IMAGES PREVIEW OF THE MANUAL:

CLAAS VARIO 5.40 – 9.00 M LEXION 480 – 410 MULTI COUPLING CONVERSION INSTRUCTIONS MANUAL_DE_FR_GB:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.M
