CLARK FORKLIFT C 40 45 50s 55s D C 40 45 50s 55s L SERVICE MANUAL

Description

CLARK FORKLIFT C 40 45 50s 55s D C 40 45 50s 55s L SERVICE MANUAL – PDF DOWNLOAD

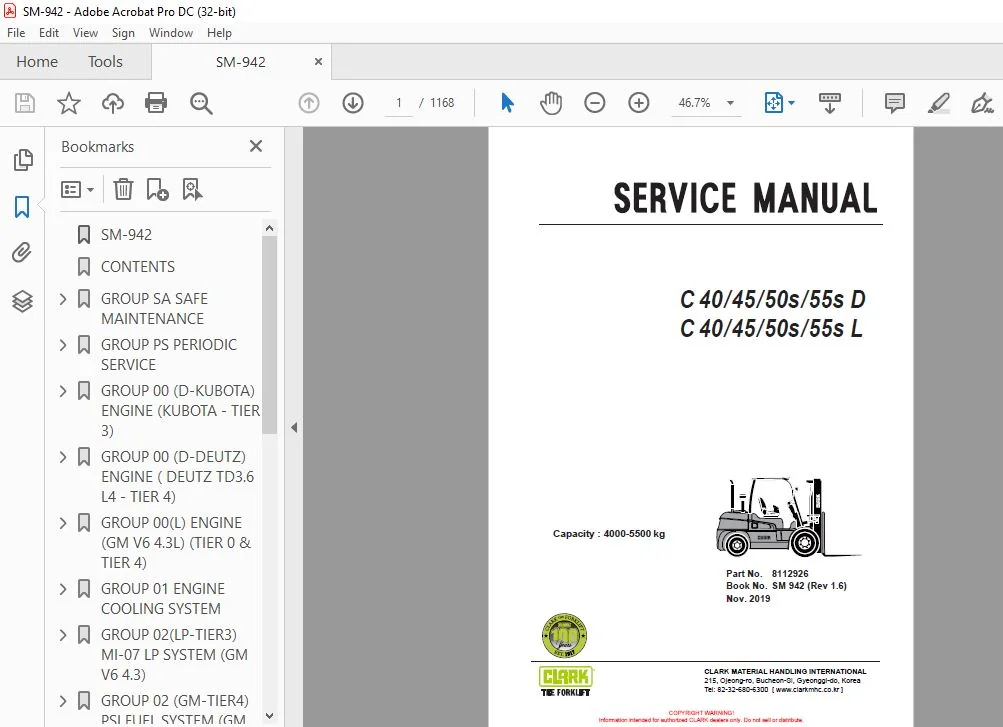

Image Preview:

Description:

CLARK FORKLIFT C 40 45 50s 55s D C 40 45 50s 55s L SERVICE MANUAL – PDF DOWNLOAD

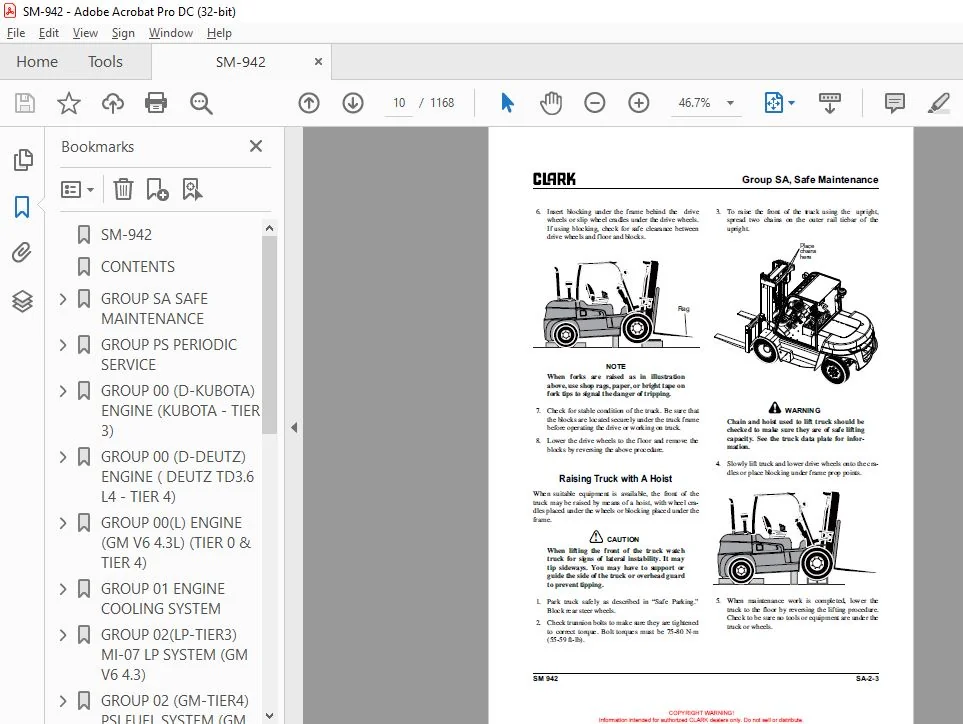

• The following instructions have been prepared from current industry and government safety standards applicble to industrial truck operation and maintenance. These recommended procedures specify conditions, methods, and accepted practices that aid in the safe maintenance of industrial trucks. They are listed here for the reference and safety of all workers during maintenance operations.
• Carefully read and understand these instructions and the specific maintenance procedures before attempting to do any repair work. When in doubt of any maintenance procedure, please contact your local CLARK dealer. 1. Powered industrial trucks can become hazardous if maintenance is neglected. Therefore, suitable mainte-nance facilities, trained personnel, and procedures must be provided.
• 2. Maintenance and inspection of all powered industrial trucks shall be done in conformance with the manufacturer’s recommendations. 3. A scheduled planned maintenance, lubrication, and inspection program shall be followed. 4. Only trained and authorized personnel shall be permit- ted to maintain, repair, adjust, and inspect industrial trucks. Work should be performed in accordance with the manufacturer’s specifications.
• 5. Properly ventilate work area, vent exhaust fumes, and keep shop clean and floor dry. 6. Avoid fire hazards and have fire protection equipment present in the work area. Do not use an open flame to check for level or leakage of fuel, electrolyte, oil, or coolant.
• Do not use open pans of fuel or flammable cleaning fluids for cleaning parts. 7. Before starting work on truck: a. Raise drive wheels off of floor and use blocks or other positive truck positioning devices.
• b. Disconnect battery before working on the electrical system. 8. Before working on engine fuel system of gasoline- or diesel-powered trucks, be sure the fuel shut-off valve is closed.

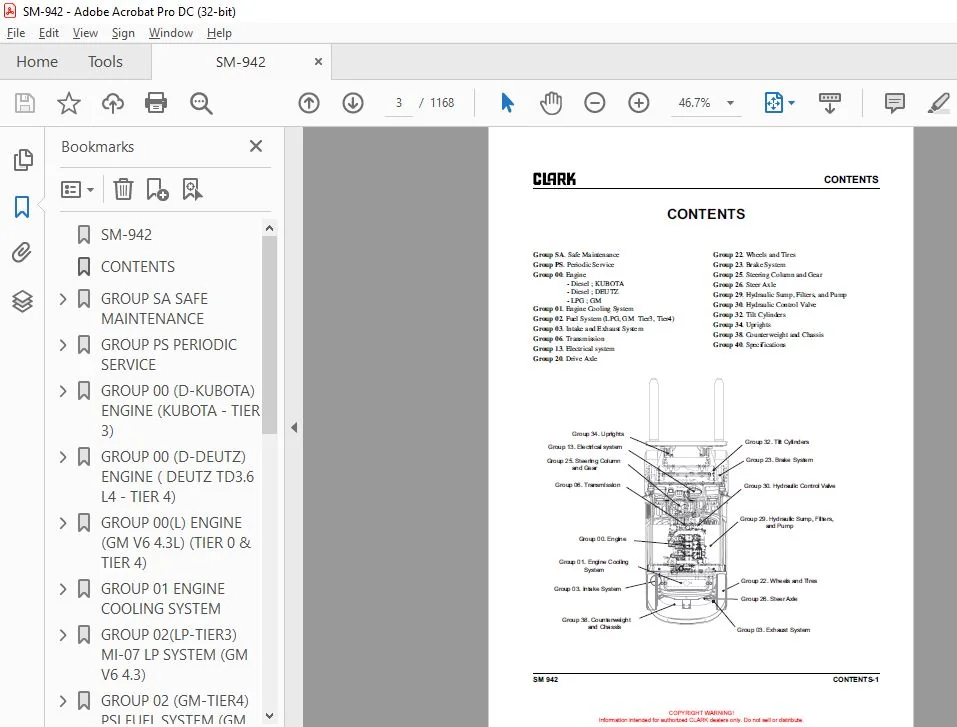

Table Of Contents:

CLARK FORKLIFT C 40 45 50s 55s D C 40 45 50s 55s L SERVICE MANUAL – PDF DOWNLOAD

Group SA. Safe Maintenance
Group PS. Periodic Service
Group 00. Engine
– Diesel ; KUBOTA
– Diesel ; DEUTZ
– LPG ; GM
Group 01. Engine Cooling System
Group 02. Fuel System (LPG, GM Tier3, Tier4)
Group 03. Intake and Exhaust System
Group 06. Transmission
Group 13. Electrical system
Group 20. Drive Axle
Group 22. Wheels and Tires
Group 23. Brake System
Group 25. Steering Column and Gear
Group 26. Steer Axle
Group 29. Hydraulic Sump, Filters, and Pump
Group 30. Hydraulic Control Valve
Group 32. Tilt Cylinders
Group 34. Uprights
Group 38. Counterweight and Chassis
Group 40. Specifications

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
