CLARK FORKLIFT C500 OVERHAUL MANUAL

Description

CLARK FORKLIFT C500 OVERHAUL MANUAL – PDF DOWNLOAD

Questions? Email us: [email protected]

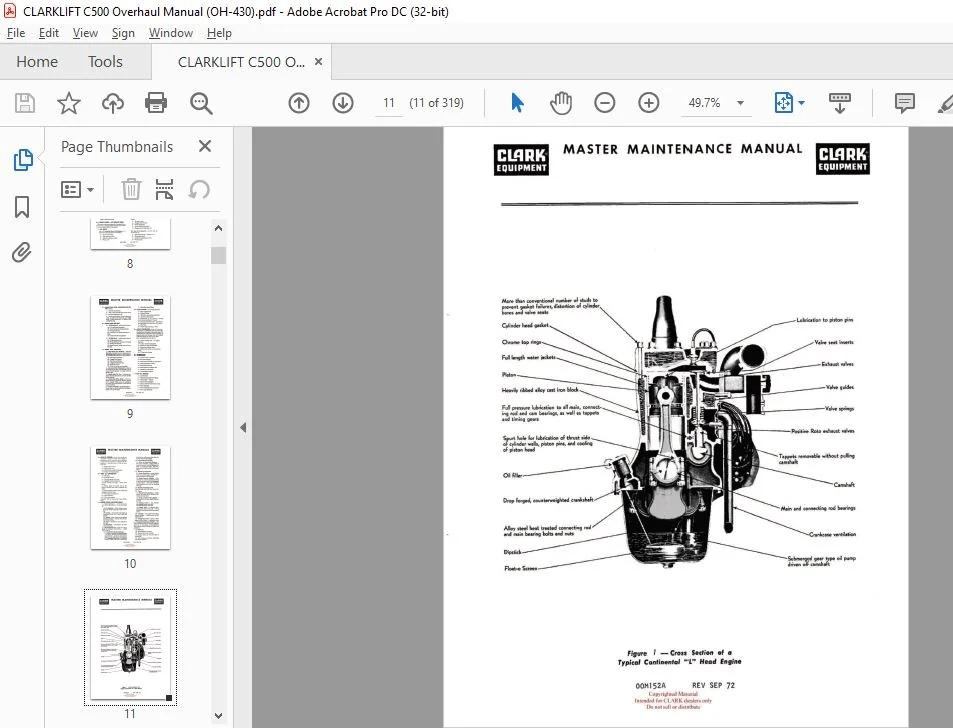

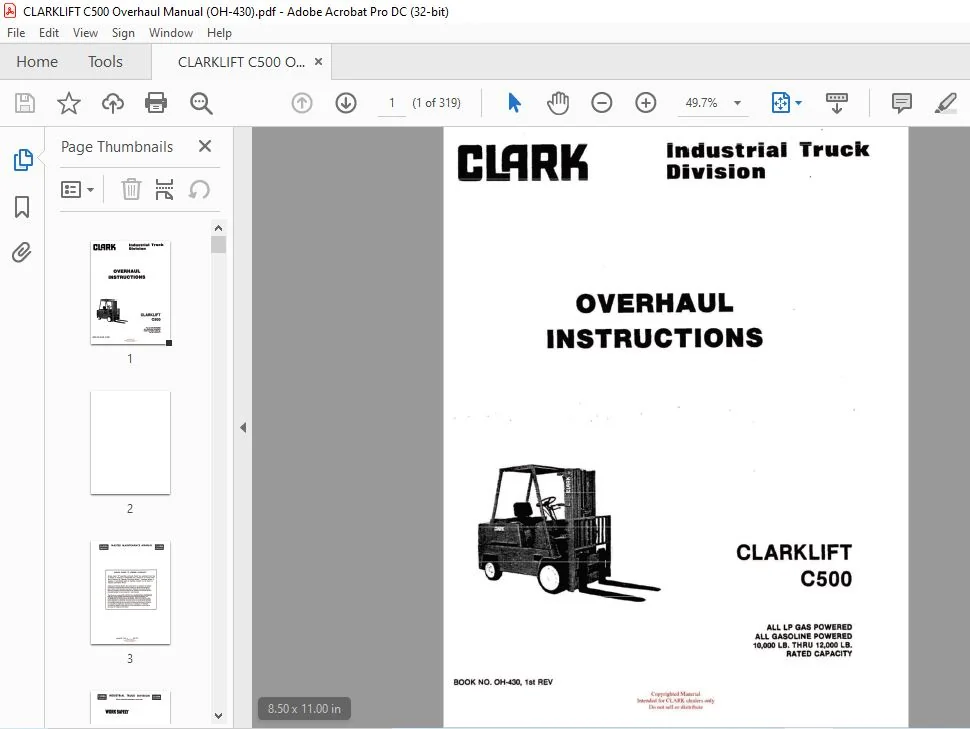

Image Preview:

Description:

CLARK FORKLIFT C500 OVERHAUL MANUAL – PDF DOWNLOAD

• This handbook provides the basic step-by-step procedures which should be followed In making a bench overhaul of various assemblies used on the vehicle, Each section includes al I relevant illustrative material available, from exp loded view through photos and drawings to crosssection views of assembled parts, when necessary, Trouble shooting is located at the front of each section, and specifications and other useful information are added at the end of each section, Each section is selfcontained (or modular), with consecutive page numbers and publication date at the bottom of al 1 pages included therein. Where p ossible, general instructions are presented as applicable to a family of assemblies.
• Any necessary variations in specifications are given in column form with a CLARK p art number on each 1 ine, Refer to your Product Identification Card to verify applications, There may be several sections in some parts groups. For example, GROUP 16 may cover a drive motor in Section 1, a hydraulic pump motor in Section 2 and a steering pump motor in Section 3 in an Overhaul Handbook for an electric truck; or, for a gasoline engine· truck, Group 12 may have a voltage regulator in one section, a generator in another, or an alternator with a built-in voltage regulator.
• Refer to your Table of Contents for proper Group and Section numbers. The basic group in \>klich a section appears bears the same group number as Service Parts Books list for most assemb 1 ies. In some cases, however, an overhaul procedure wi 11 mention a sub-assembly from another parts grouping simply because it would be impractical to attempt to overhaul the sub-assembly, For example, a motor brake must be disassembled to get the drive motor disassembled on several electric trucks; and on most trucks with drive axles (GROUP 20), It is usually necessary to deal with certain brake assembly parts (GRO UP 23), when overhauling the axle assembly.
• Any overlapping is intended to be helpful, rather than confusing, Refer to your CLARK dealer’s Service Parts Book for correct part numbers when ordering parts or assemblies

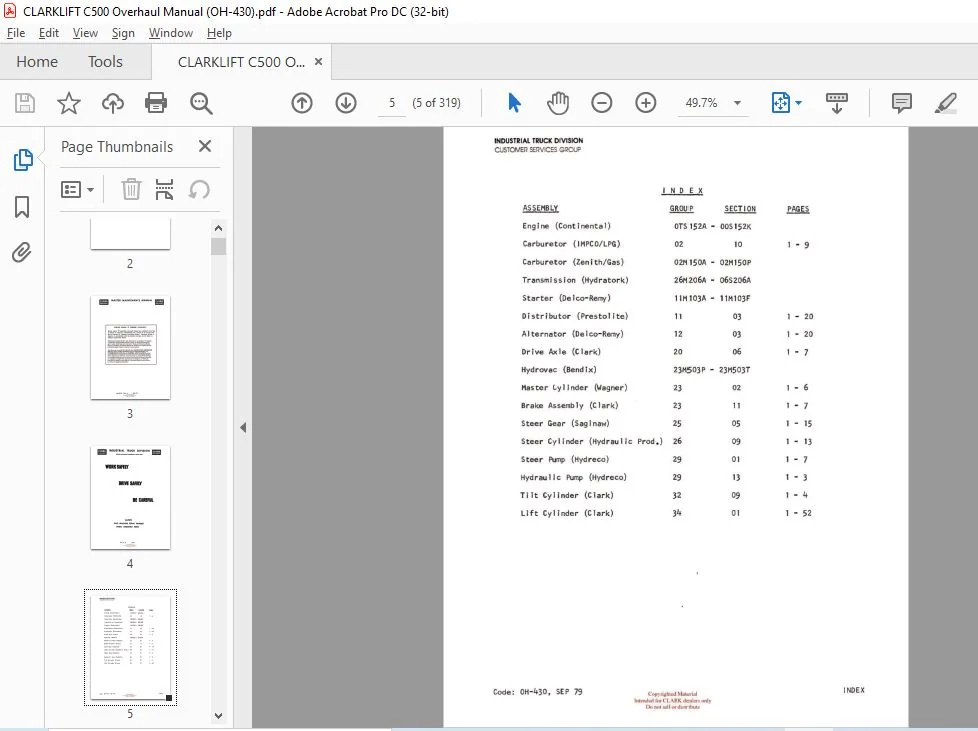

Table Of Contents:

CLARK FORKLIFT C500 OVERHAUL MANUAL – PDF DOWNLOAD

Engine (Continental)
Carburetor ( I MPC 0/LPG)
Carburetor (Zenith/Gas)
Transmission (Hydratork)
Starter (Delco-Remy)
Distributor (Prestolite)
A 1 ternator (Delco-Remy)
Drive Ax le (C 1 ark)
Hydrovac (Bendix)
Master Ly 1 i nder (Wagner)
Brake Assembly (Clark)
Steer Gear (Saginaw)
Steer Cylinder (Hydraulic
Steer Pump ( Hyd reco)
Hydrau 1 i c Pump (Hydreco)
Tilt Cy 1 i nder {Clark)
Lift Cylinder (C 1 ark)

Please Note:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
