Clark Forklift CTA E 20-50 English O-185 Operator’s Manual

Description

Clark Forklift CTA E 20-50 English O-185 Operator’s Manual

CLARK FORKLIFT CTA E 20-50 ENGLISH O-185 OPERATOR’S MANUAL:

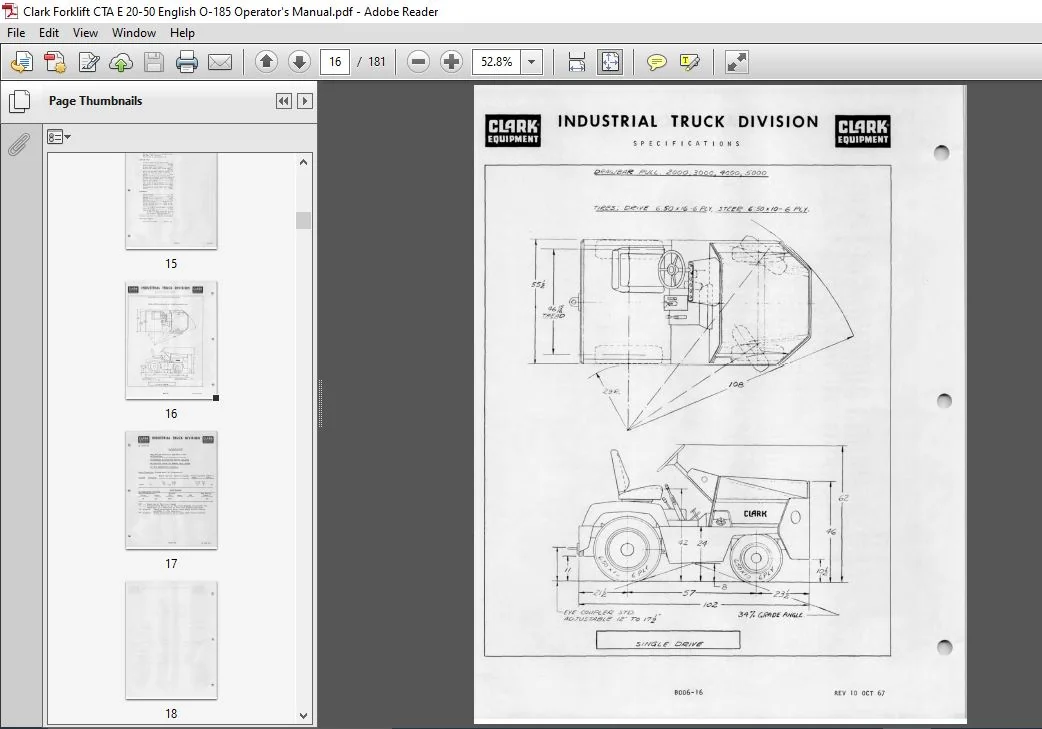

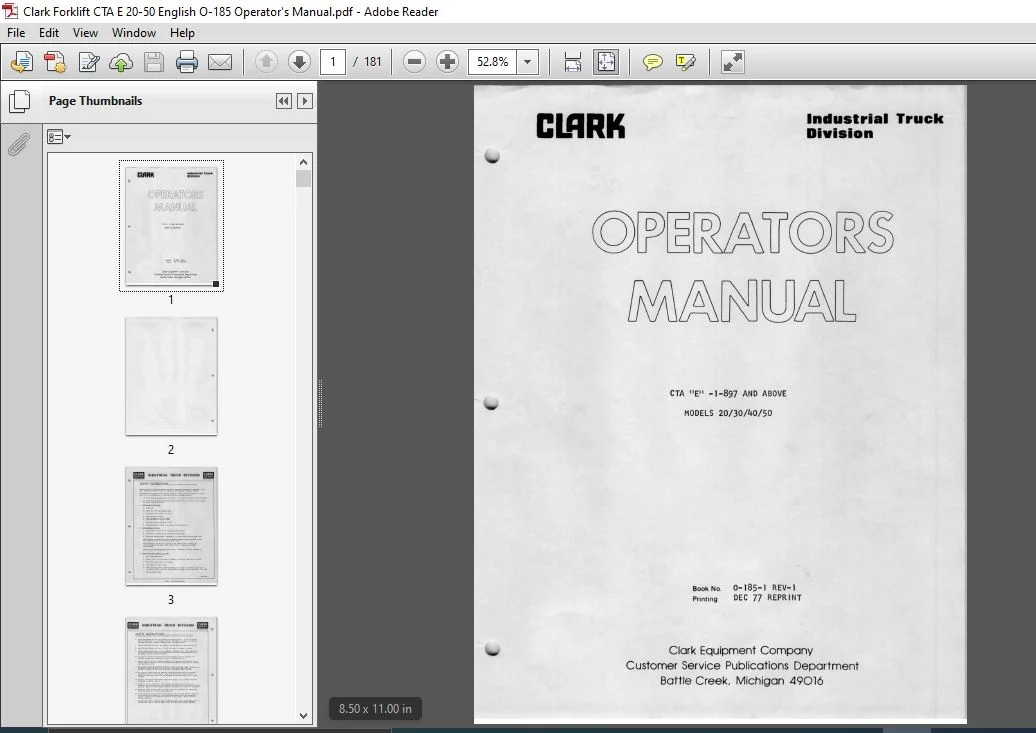

Image Preview:

Description:

Clark Forklift CTA E 20-50 English O-185 Operator’s Manual

• SAFETY INSTRUCTIONS FOR MAINTAINING INDUSTRIAL TRUCKS Powered industrial trucks may become hazardous if adequate maintenance is neglected. Therefore, adequate maintenance facilities, personnel and procedures should be provided.
• Maintenance and inspection of all powered industrial trucks should be performed in conformance with the recommendation in this manual and the following practices. 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed.
• 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks. J. Before Leaving The Truck: A. Stop truck. B. Fully lower the load engaging means. C. Place directional controls in neutral. D. Apply the parking brake.
• E. Stop the engine or turn off power. F. Lock the control or ignition circuit. G. Block the wheels if truck is on a ramp, or being worked on. 4. Before W orking On Truck: A. Raise wheels free of floor or disconnect power source. B. Use chocks or other positive truck positioning devices.
• C . Block load engaging means, innermast(s), or chassis before working under them. Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed.
• Before working on engine fuel system of LP gas powered trucks, close LP gas cyl lnder valve and run engine until fuel in system is depleted and engine stops running. Operation to check performance of the truck or attachments should be conducted in an authorized, safe clearance area.
• 5. Before Starting To Operate The Truck; A. Be in operating position. B. D epress clutch (or brake pedal on automatic transmission and electric trucks). C . Place directional controls in neutral. D. Start engine or turn on power. E. Before operating truck, check functioning of 1 ift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.

Table Of Contents:

Clark Forklift CTA E 20-50 English O-185 Operator’s Manual

Instructions on use of manual
A003 …•…….•…..• Table of contents
8001 …..•………… Illustration of machine
8003 ………..•…..• Specifications
8031 ……•.•……..N. ew machine 50 hour inspection
0 P E R A T I O N S
C002 …………..•.•• 0verall controls
C003 ……….•……. Instrument indicators
CI03 ……………… Starting and operating instructions
C303 .•…………..•. Safety and operating suggestions
L U B R I C A T I O N A N D P R EV ENTIVE M A I N T E N A N C E
Page
Number
(0000-)
Description
H .•…………•.• 001 •..•.•……••……….. Index
8H. ……………0 00 •………•….•……..• 8 Hour lubrication and preventive maintenance iI lustration
SH ……………. 001 ……………………. Lights, horn, fuel tank and circuit breaker
8H .•………….• 003 ••…•………..•…..•. Crankcase oi I level check, recomnended lubricants
8H ……………. I 03 ••.•.•..•.•…..••••••.•. Coo Ii ng sys tern check
SH …•………… 203 •..•.•………………. lnstrument indicators, check
8H ………•.•.•.. 303 ……………………. Brake pedal free travel check, parking brake check
SH …..•………. 403 ••…•…..•….•….•.•. Engine air cleaner service
8H •……….•…. 60 I ••.•..•……………… Whee I remova I
8H. …………..•6 02 …•….•…………….T ire and rim maintenance
SH ……•..•….•. 605 ..•……………..•..•. Clutch pedal check
IOOH .•………… 000 ..••••………………. 100 Hour lubrication & preventive maintenance i I lustration
lOOH ….•.•..•.•.• 001 ………..•………•… Converter transmission level check, fuel tank & lines
inspect
lOOH •.•…..•….. 003 •……………..•…… Engine crankcase drain & refi I I, crankcase ventilation
inspect, engine oi I filter change
IOOH ………….. 103 ……………………. Cooling system inspect, clean radiator fins
I OOH ………….. 203 ……………………. Fan and a I terna tor be It adj us tmen t
IOOH ………….. 302 ……………………. Brake pedal free travel check
IOOH ………….. 303 ……………………. Brake pedal free travel adjust, master cylinder level
check
IOOH ………….. 602 ……………………. Alternator – battery – electrical system
IOOH .•……•….. 603 ……•……………… Steering gear verify lubricant level, battery inspect
IOOH •……..•…• 702 •…..•..•.•………•••. Lubrication chart
500H ••.•….•.•… 000 ….•…….•.•………. 500 Hour lubrication & preventive maintenance i I lustration
500H ………….. 001 ……………………. Fuel pump strainer clean, fuel pump operation check
500H ……..•….. 003 …….•.••………….• Converter transmission, drain & refi II, band adjustment
500H •.•…….•..• 202 ••.•………………… Steering gear adjust
500H •………..•• 303 •……………..•…••. Steering axle and linkage adjust, suspension, inspect
500H ………….. 403 ……………………. Mani folds check security of mounting; nuts, bolts and cap
screws security check
IOOOH •.•..•……. 000 …..•…..•……..••.•• 1000 Hour lubrication/preventive maintenance i I lustration
IOOOH ••…..•••.•• 001 •.•••.•….•…….•….• Engine tune up: air cleaner, fuel pump
IOOOH …………. 003 ……………………. Engine tune up: cylinder head stud nuts intake and exhaust
manifolds, crankcase ventilation; intake and exhaust valve
clearance adjustments.
IOOOH ………..•. 103 •….•••………•….••• Engine tune up; compression test, spark plugs

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

sk
