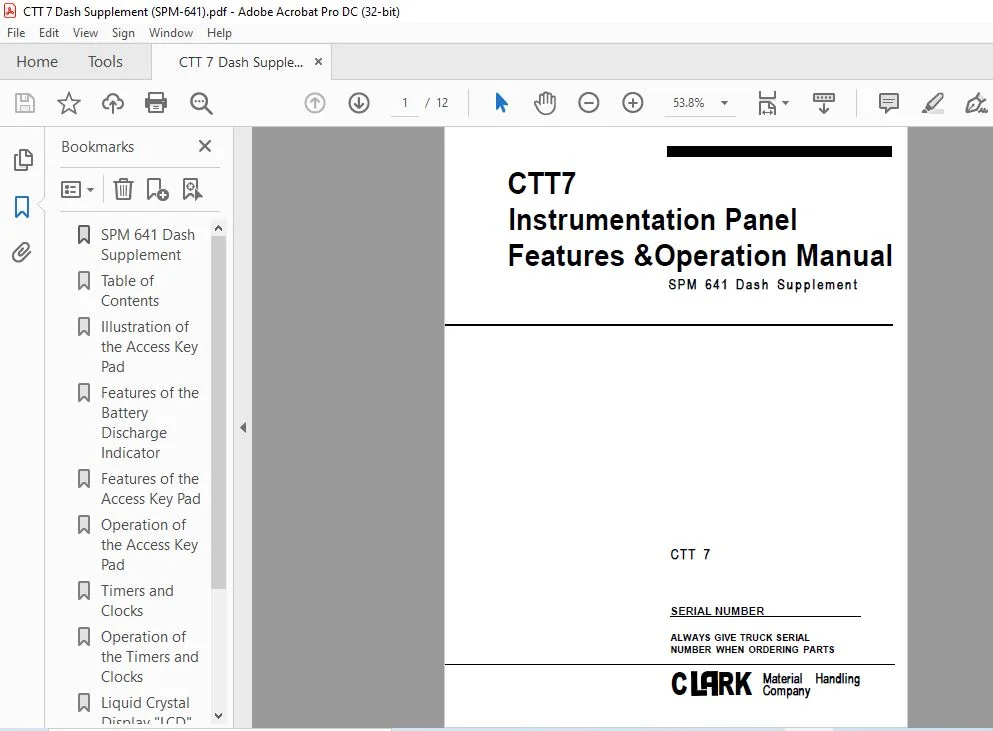

CLARK FORKLIFT CTT 7 SPM 641 Dash Supplement SERVICE MANUAL

Description

CLARK FORKLIFT CTT 7 SPM 641 Dash Supplement SERVICE MANUAL – PDF DOWNLOAD

Contact us: [email protected]

Image Preview:

Description:

CLARK FORKLIFT CTT 7 SPM 641 Dash Supplement SERVICE MANUAL – PDF DOWNLOAD

• A ten segment multicolor display that is easy to see and understand. Each bar represents approximately10% of the total battery.
• · Automatically determines battery voltage. The built in logic detects the battery voltage (24 -48 volt) when the battery is connected to the tractor and makes all needed corrections and calibrations.
• · Flashes a warning (bar graph will flash up and down continuously) when the battery reaches a 20% state of charge.
• · The battery discharge indicator comes from the factory pre-adjusted. In the unlikely event you find it necessary to fine-tune the gauge, do so by turning the pot marked “BDI Adjust” on the back of the dashboard.
• With a known fully charged battery turn the pot until the top LED goes out, then reverse direction to the point that it just comes on again.

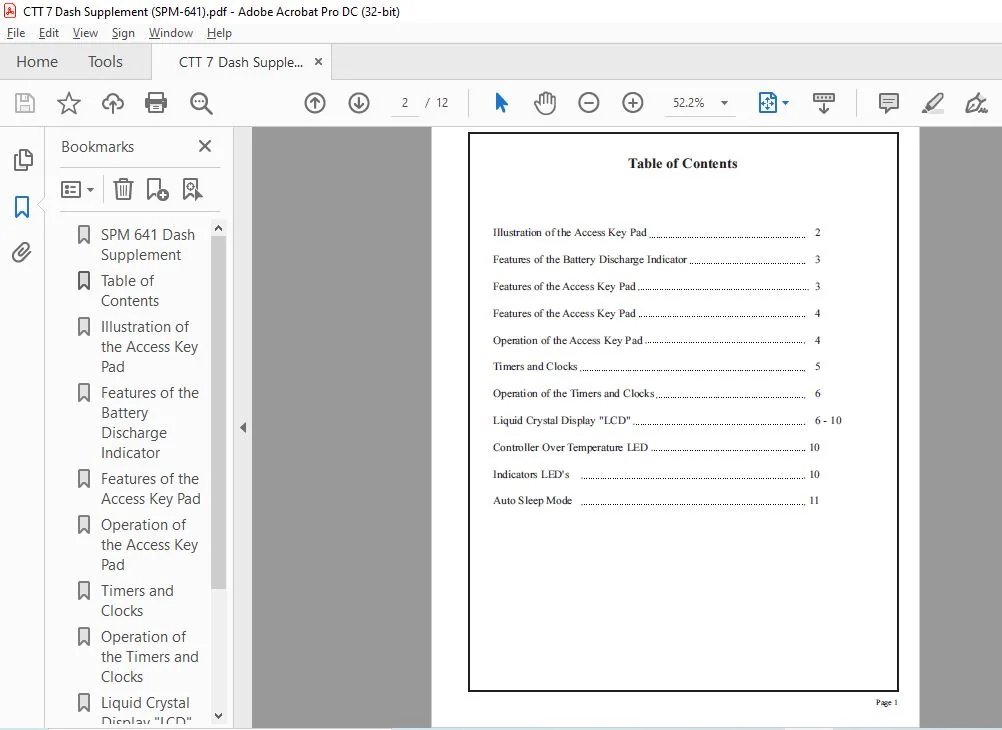

Table Of Contents:

CLARK FORKLIFT CTT 7 SPM 641 Dash Supplement SERVICE MANUAL – PDF DOWNLOAD

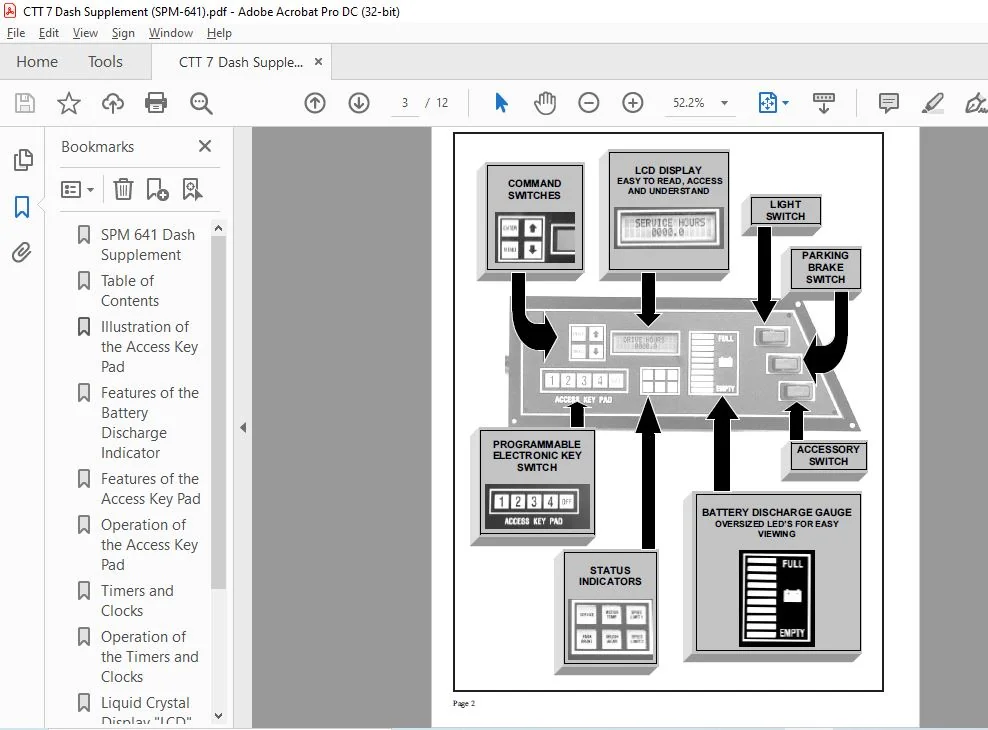

Illustration of the Access Key Pad 2
Features of the Battery Discharge Indicator 3
Features of the Access Key Pad 3
Features of the Access Key Pad 4
Operation of the Access Key Pad 4
Timers and Clocks 5
Operation of the Timers and Clocks 6
Liquid Crystal Display “LCD” 6 – 10
Controller Over Temperature LED 10
Indicators LED’s 10
Auto Sleep Mode 11
