Clark Forklift ECLS30-40B English O-150 Operator’s Manual

• SAFETY INSTRUCTIONS FOR MAINTAINING 1NDUSTR1AL TRUCKS ? mmmm Powered industrial trucks may become hazardous if adequate maintenance is neglected. Therefore, adequate maintenance facilities, personnel and procedures should be provided.
• Maintenance and inspection of all powered industrial trucks should be performed in conformance with the recommendation in this manual and the fol lowing practices. 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed. 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks.
• J. Before Leaving The Truck: A. Stop truck. B. Fully lower the load engaging means. C. Place directional controls in neutral. D. Apply the parking brake. E. Stop the engine or turn off po?ier. F. Lock the control or ignition circuit. G. Block the wheels if truck is on a ramp, or being worked on. 4. Before Working On Truck: A. Raise wheels free of floor or disconnect power source.
• B. Use chocks or other positive truck positioning devices. C. Block load engaging means, innermast(s), or chassis before working under them. Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed. Before working on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel in system is depleted and engine stops running.
• Operation to check performance of the truck or attachments should be conducted in an authorized, safe clearance area. 5. Before Starting To Operate The Truck: A. Be in operating position. B. Depress clutch (or brake pedal on automatic transmission and electric trucks).
• C. Place directional controls in neutral. D. Start engine or turn on power. E. Before operating truck, check functioning of I ift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.

Table Of Contents:

Clark Forklift ECLS30-40B English O-150 Operator’s Manual

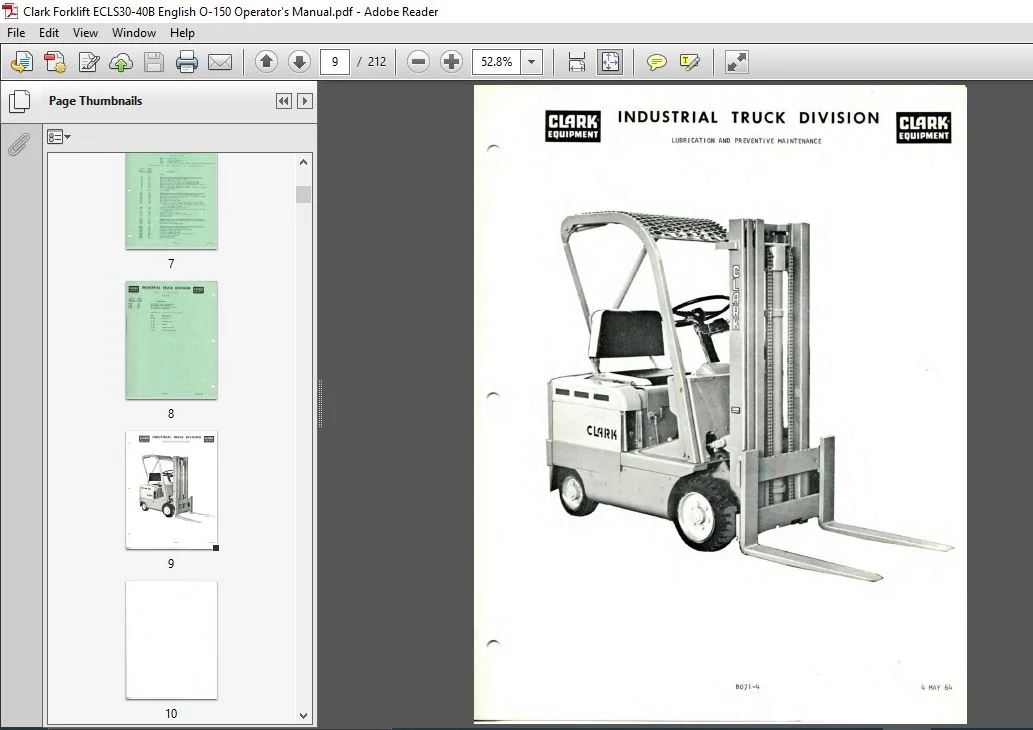

8 Hour Lubrication and Preventive Maintenance Illustration
Control Circuit Fuse, Horn and Lights.
Instrument Indicators , check
Brake Pedal Free Travel check; Seat Safety Brake test
Brake Interlock Switch chec?; Seat Safety Switch check
Battery Inspect; Verify Electrolyte Level and Specific Gravity.
Cables , Terminals and Receptacles inspect
Hydraulic Sump Tank and Breather inspect; Lift and Ti It Cylinder
Operations check
Tires inspect
100 Hour Lubrication and Preventive Maintenance Illustration
Axle Adapter Lubricant Level check; Axle Vent inspect
Speed Control Cylinder F luid Level check; Cylinder Vent inspect
Brake Interlock Switch adjust
Seat Safety Switch adjust
Brake Pedal Free Travel check
Brake Pedal Free Travel adjust; Master Cylinder Level check
Lift and Ti It Cylinders inspect; Lift Chains check and adjust;
Visually inspect all wiring and hydraulic piping; Lubricate
a 1 1 mi see 1 1 aneous Ii nkage
Pump Control Switches check and adjust
Pedal Height and Stop Adjustment; First point of Power and 2MS
Switch adjust
Sump Tank Breather inspect
Steering Gear Verify Lubricant Level
Contactor Panel, Swi tchettes, inspect adjust
Lubrication Chart
500 Hour Lubrication and Preventive Maintenance I I lustration
Hydraulic Sump Tank drain & refi 1 1; Sump Tank Oi I Filter change
Steering Gear adjust
Steering Axle and Linkage adjust
1000 Hour Lubrication and Preventive Maintenance Illustration
Carbon Pi le Control Bleeding Procedure
Carbon Pi le Accumulator and Actuator adjust
Drive Motor inspect and clean
Pump Motor inspect and clean
Steering Wheel Bearings clean and repack; adjust
Axle Ends clean and repack
Bleeding Brake System
Service Brake Adjusters
