Clark Forklift ETR10 English OM-557 Operator’s Manual

Description

Clark Forklift ETR10 English OM-557 Operator’s Manual

CLARK FORKLIFT ETR10 ENGLISH OM-557 OPERATOR’S MANUAL:

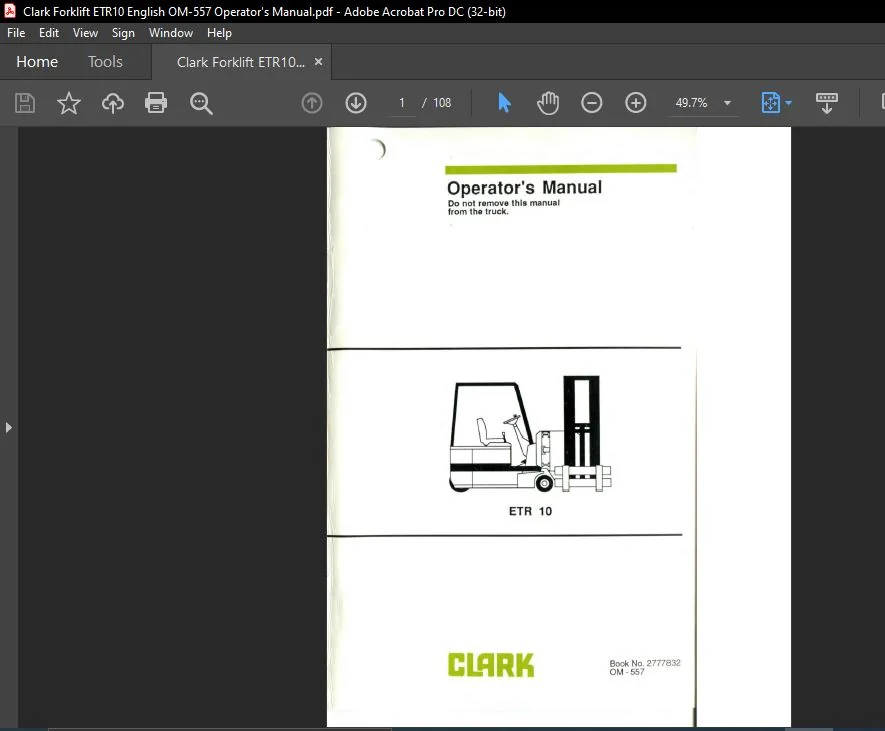

Image Preview:

Description:

Clark Forklift ETR10 English OM-557 Operator’s Manual

• Clark Equipment Company welcomes you to the growing group of professional people who own, operate and maintain Clark lift trucks. We take pride in the long tradition of quality products and superior value that the Clark name represents.
• This manuaf will familiarize you with safety, operating, and maintenance information about your new lift truck. It has been especially prepared to help you use and maintain your Clark lift truck in a safe and correct manner Your Clark lift truck, although not rated by the Underwriters Laboratories, has been designed and built to be as sate and efficient as today’s technology can make it.
• As manufactured, it meets all the applicable mandatory requirements of ANSI 856.1–1969-1983 Safety Standard for Powered Industrial Trucks. Each truck is also furnished with certain safety devices, e.g., horn and driver’s overhead guard as standard equipment. Safe, productive operation of a lift truck requires both skill and knowledge on the part of the operator.
• The operator must know, understand and practice the safety rules and safe drivinQ and load handling techniques described in this manual. To develop the skill required, the operator must become familiar with the construction and features of the lift truck and how they function. The operator must understand its capabilities and limitations, and see that it is kept in a sate condition.
• Routine Servicing and Maintenance Regular maintenance and care of your lift truck is not only imJX)rtant for economy and utilization reasons; rt is essential for your safety. A faulty lift truck is a potential source of danger to the operator, and to other personnel working near it. As with all quality equipment, keep your lift truck in good operating condition by following the recommended schedule of maintenance.
• User Daily Inspection — Safety and Operating Checks A lift truck should always be examined by the user before every shift to be sure it is safe to operate. There are helpful inspection forms available from your CLARK dealer to help you with this inspection. The importance of this procedure is emphasized in this manual with a brief illustrated review and later with more detailed instructions.
• Planned Maintenance Program In addition to the daily user inspection, Clark recommends that a planned maintenance and safety inspection program ( PM ) be performed by a trained and authorized mechanic on a regular basis. The PM will provide an opJX)rtunity to make a thorough inspection of the safety and operating condition of your lift truck.
• Necessary adjustments and repairs can be done during the PM , which will increase the life of comJX)nents and reduce unscheduled downtime. The PM can be scheduled to meet your particular application and lift truck usage.
• The procedures for a periodic planned maintenance program which covers inspections, operational checks, cleaning, lubrication and minor adjustments, are outlined in this manual. Your Clark dealer is prepared to help you with a Planned Maintenance Program with trained service personnel who know your lift truck and can keep it operating safely and efficiently. For additional information, see the Service Manual.

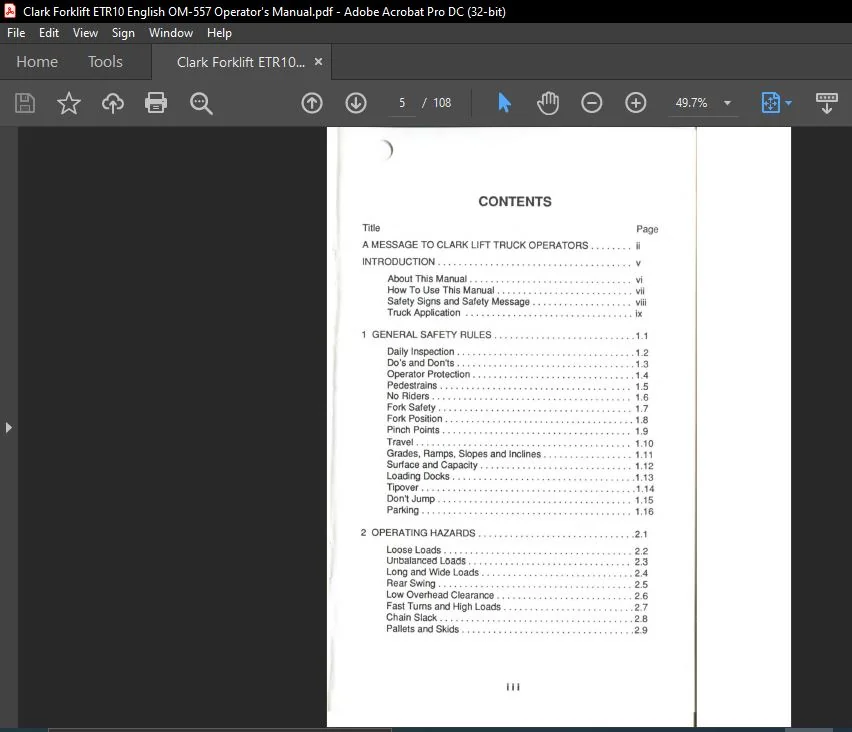

Table Of Contents:

Clark Forklift ETR10 English OM-557 Operator’s Manual

Title Page
A MESSAGE TO CLARK LIFT TRUCK OPERATORS …….. ii
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
About This Manual …………………………. vi
How To Use This Manual …………………….. vii
Safety Signs and Safety Message . . . . . . . . . . . . . . . . . . . viii

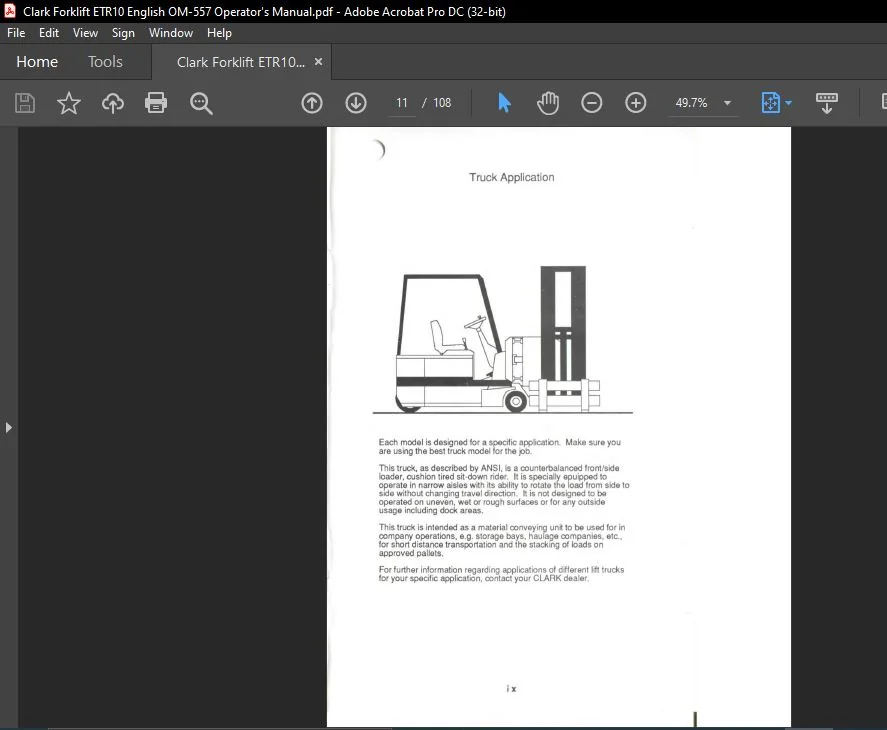

Truck Application ………………………….. ix
1 GENERAL SAFETY RULES ……………………… 1.1
Daily Inspection ……………………………. 1.2
Do’s and Don’ts ……………………………. 1.3
Operator Protection …………………………. 1.4
Pedestrains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5
No Riders ……………………………….. 1.6
Fork Safety ………………………………. 1.7
Fork Position ……………………………… 1 .8
Pinch Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9
Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 .1 O
Grades, Ramps, Slopes and Inclines …………….. 1.1 1
Surface and Capacity ……………………….. 1.1 2
Loading Docks …………………………….. 1.1 3
Tipover ………………………………….. 1 . 14
Don’t Jump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 .1 5
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 6
2 OPERATING HAZARDS ………………………… 2.1
Loose Loads ……………………………… 2.2
Unbalanced Loads …………………………. 2.3
Long and Wide Loads ……………………….. 2.4
Rear Swing ………………………………. 2.5
Low Overhead Clearance …………………….. 2.6
Fast Tums and High Loads ……………………. 2.7
Chain Slack ………………………………. 2.8
Pallets and Skids …………………………… 2.9

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
