CLARK FORKLIFT IC103 Electrical Systems IC Lift Trucks TECHNICAL TRAINING MANUAL β PDF DOWNLOAD
Original price was: $60.95.$25.95Current price is: $25.95.
CLARK FORKLIFT IC103 Electrical Systems IC Lift Trucks TECHNICAL TRAINING MANUAL β PDF DOWNLOAD
Description
CLARK FORKLIFT IC103 Electrical Systems IC Lift Trucks TECHNICAL TRAINING MANUAL β PDF DOWNLOAD
Image Preview:
Description:
CLARK FORKLIFT IC103 Electrical Systems IC Lift Trucks TECHNICAL TRAINING MANUAL β PDF DOWNLOAD
- Since the battery is common to the entire electrical system, and since a visual inspection and a few quick tests will readily reveal the battery condition, Start all circuit checks with the battery. Systematic battery service can prevent many electrical troubles caused by battery failures. To prevent premature battery failure, consider the following four points: Correct Application Use the proper-sized battery for balancing the electrical load.
- An undersized battery will cause poor performance or early failwΒ·e. A replacement battery should be at least equal to the original. Proper Activation It is extremely important to properly activate a replacment battery so as to avoid poor performance or early failure. For a 12-volt battery, give a warm-up charge of 15 amperes for ten minutes. Correct Installation The case or cover may be broken if a battery is not properly installed. Keep the holddown bolts tight enough to prevent the battery from sliding in its holder. Do not, however, tighten them to the point of severely stressing the battery case.
- Install the battery in its carrier with the positive and negative posts in the proper position. Reversing the battery polarity can severely damage the electrical system. When connecting battery cables, make sure the cables are long enough to prevent excessive stress on the battery posts. Connect the ground terminal last to prevent arcing. Clean cable clamps to insure good, low resistance connections.
- It is a good idea to coat battery posts and cable clamps with petroleum jelly to prevent corrosion of the battery cable terminals on batteries with lead post terminals. Make sure the battery carrier is clean and free from corrosion before installing a battery. Corrosion on the carrier will accelerate the rate of corrosion growth on the battery. Also, keep the carrier mechanically intact in order to adequately support the battery and keep it level.

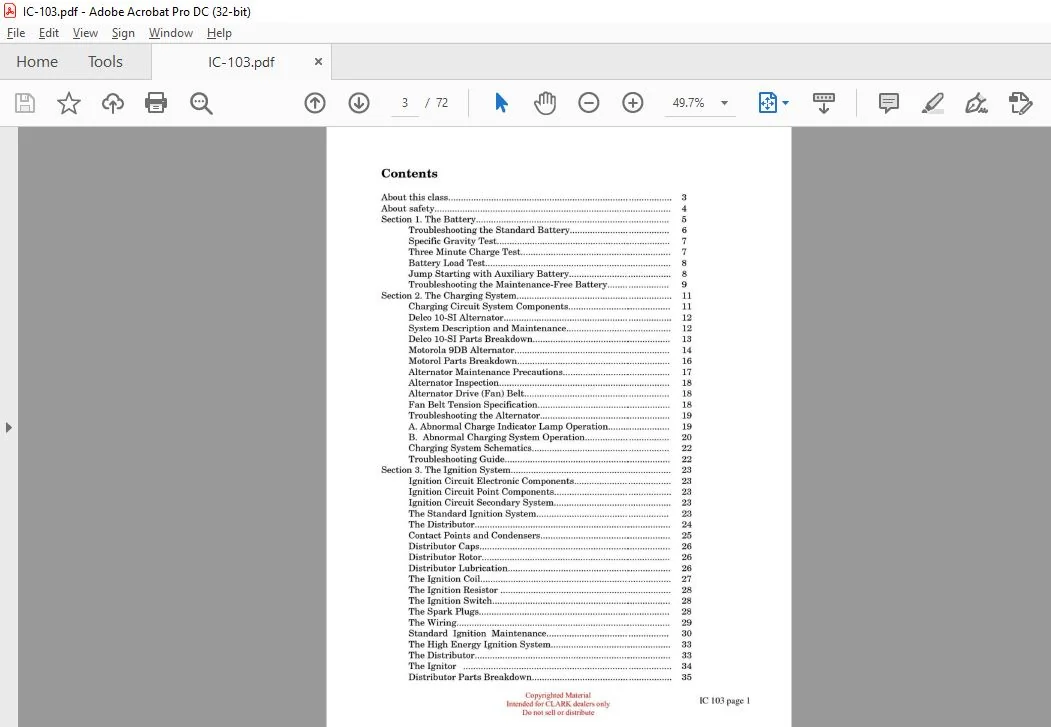

Table Of Contents:
CLARK FORKLIFT IC103 Electrical Systems IC Lift Trucks TECHNICAL TRAINING MANUAL β PDF DOWNLOAD
About this classβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 3
About safetyβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 4
Section 1. The Batteryβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 5
Troubleshooting the Standard Batteryβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 6
Specific Gravity Testβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦.. 7
Three Minute Charge Testβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦.. 7
Battery Load Testβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 8
Jump Starting with Auxiliary Batteryβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 8
Troubleshooting the Maintenance-Free Batteryβ¦β¦β¦β¦β¦β¦β¦β¦ 9
Section 2. The Charging Systemβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 11
Charging Circuit System Componentsβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 11
Delco 10-SI Alternatorβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 12
System Description and Maintenanceβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦.. 12
Delco 10-SI Parts Breakdownβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 13
Motorola 9DB Alternatorβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 14
Motorol Parts Breakdownβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 16
Alternator Maintenance Precautionsβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 17
Alternator Inspectionβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 18
Alternator Drive (Fan) Beltβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 18
Fan Belt Tension Specificationβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 18
Troubleshooting the Alternatorβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 19
A. Abnormal Charge Indicator Lamp Operationβ¦β¦β¦β¦β¦β¦β¦β¦ 19
B. Abnormal Charging System Operationβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 20
Charging System Schematicsβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 22
Troubleshooting Guideβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦.. 22
Section 3. The Ignition Systemβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 23
Ignition Circuit Electronic Componentsβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦.. 23
Ignition Circuit Point Componentsβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 23
Ignition Circuit Seconda1-y Systemβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 23
The Standard Ignition Systemβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 23
The Distributorβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦.. 24
Contact Points and Condensersβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 25
Distributor Capsβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 26
Distributor Rotorβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦.. 26
Distributor Lubricationβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 26
The Ignition Coilβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 27
The Ignition Resistor .. . β¦ . β¦ . .. . . β¦ . β¦β¦.. β¦ . . .. . .. . .. β¦ . . . . .. . . . . . .. . . . . . . . .. . . 28
The Ignition Switchβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 28
The Spark Plugsβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 28
The Wiringβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 29
Standard Ignition Maintenanceβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦ 30
The High Energy Ignition Systemβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦.. 33
The Distributorβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦.. 33
The Ignitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Distributor Parts Breakdownβ¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦β¦. 35
Please Note:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contactΒ [email protected]Β . We still have 50,000 manuals unlisted
