Clark Forklift NS NSP English O-291 Operator’s Manual

Description

Clark Forklift NS NSP English O-291 Operator’s Manual

CLARK FORKLIFT NS NSP ENGLISH O-291 OPERATOR’S MANUAL:

Image Preview:

Description:

Clark Forklift NS NSP English O-291 Operator’s Manual

• SAFETY INSTRUCTIONS FOR MAINTAINING INDUSTRIAL TRUCKS Powered Industrial trucks may become hazardous if adequate maintenance Is neglected, There• fore, adequate maintenance facilities, personnel and procedures should be provided. Maintenance and Inspection of all powered industrial trucks should be performed In confor• mance with the recommendation In this manual and the following practices.
• 1, A scheduled preventive maintenance, lubrication, and inspection system should be followed. 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and Inspect Industrial trucks, 3, Before Leaving The Truck: A. Stop truck. B, Fully tower the load engaging means. C, Place directional control s In neutral. D. Apply the parking brake.
• E. Stop the engine or turn off power. F. Lock the control or ignition circuit. G. Block the wheels if truck is on a ramp, or being worked on. 4. Before Working On Truck: A. Raise wheels free of floor or disconnect power source. B. Use chocks or other positive truck positioning devices. C. Block load engaging means, innermast(s), or chassis before working under them.
• Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed, Before working on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel In system Is depleted and engine stops running. Operation to check performance of the truck or attachments should be conducted In an authorized, safe clearance area.
• 5. Before Starting To Operate The Truck; A. Be In operating position. B. Depress clutch (or brake pedal on automatic transmission and electric trucks). C, Place directional controls in neutral. D. Start engine or turn on power. E. Before operating truck, check functioning of lift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.

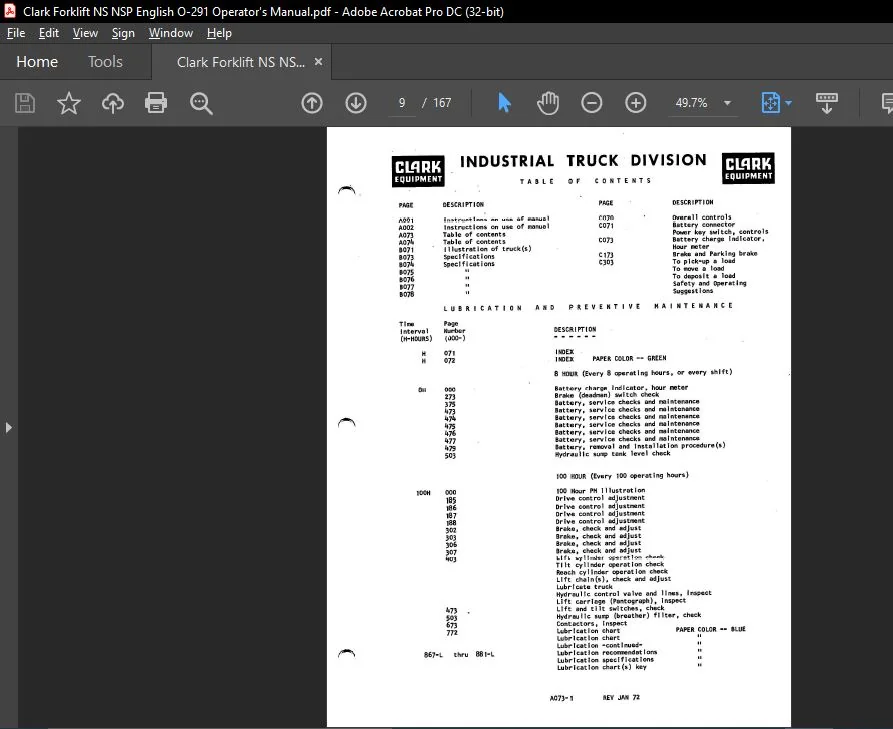

Table Of Contents:

Clark Forklift NS NSP English O-291 Operator’s Manual

INDEX
INDEX PAPER COLOR — GREEN
8 HOUR (Every 8 operating hours, or every shift)
Battery charge Indicator, hour meter
Brake (deadman) switch check
Battery, service checks and maintenance
Battery, service checks and maintenance
Battery, service checks and maintenance
Battery, service checks and maintenance
Battery, service checks and maintenance
Battery, service checks and maintenance
Battery, removal and Installation procedure (s)
Hydraulic sump tank level check
100 HOUR (Every 100 operating hours)
100 Hour PH Illustration
Drive control adjustment
Drive control adjustment
Drive control adjustment
Drive control adjustment
Brake, check and adjust
Brake, check and adjust
Brake, check and adjust
Brake, check and adjust
LI ft cy 11 nder ope rat I on check.
Tilt cylinder operation check
Reach cylinder operation check
Lift chaln (s), check and adjust
Lubricate truck
Hydraulic control valve and lines, Inspect
Lift carriage (Pantograph), Inspect
Lift and tilt switches, check
Hydraulic sump (breather) filter, check
Contactors, Inspect
Lubrication chart
Lubrication chart
Lubrication -continued•
Lubrication reconmendatlons
Lubrication specifications
Lubrication chart (s) key
