Clark Forklift NST245 English O-286 Operator’s Manual

Description

Clark Forklift NST245 English O-286 Operator’s Manual

CLARK FORKLIFT NST245 ENGLISH O-286 OPERATOR’S MANUAL:

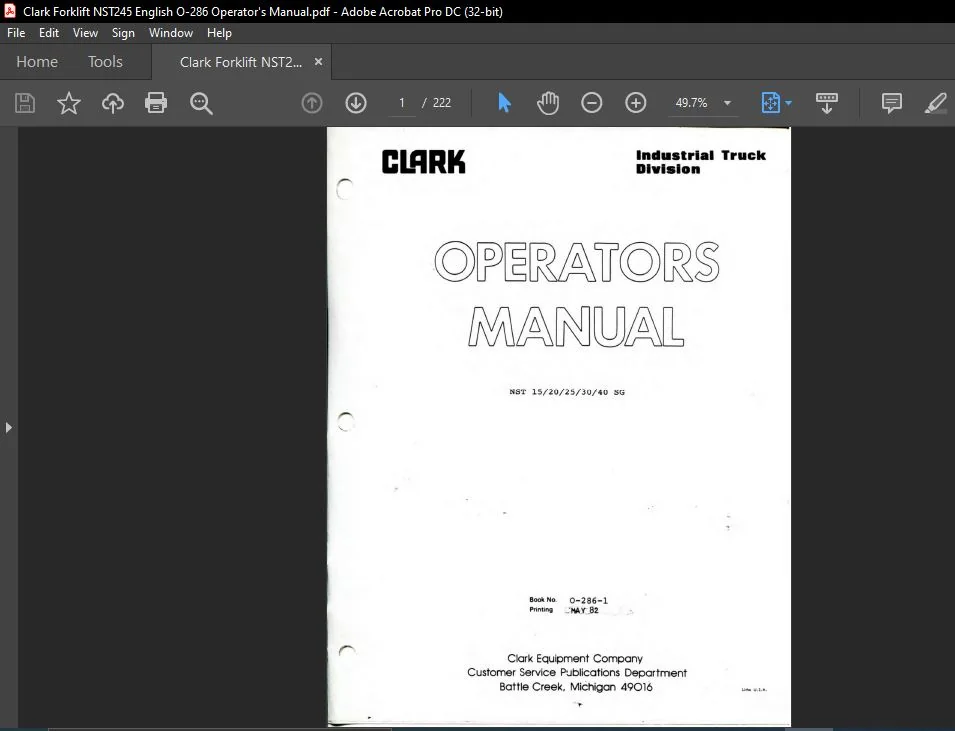

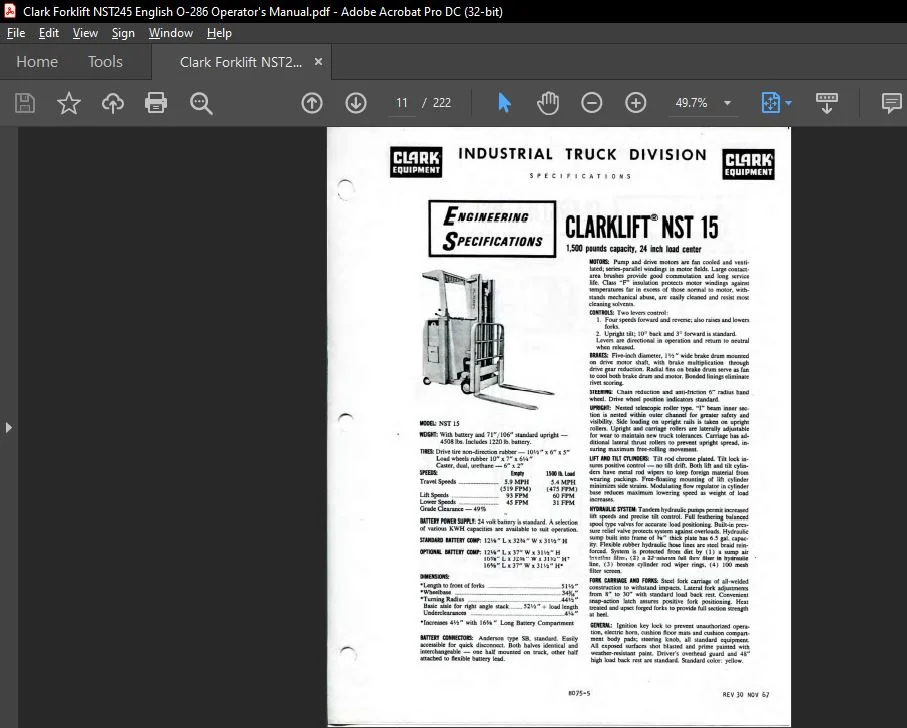

Image Preview:

Description:

Clark Forklift NST245 English O-286 Operator’s Manual

• SAFETY INSTRUCTIONS FOR MAINTAINING INDUSTRIAL TRUCKS Powered Industrial trucks may becane hazardous if adequate maintenance Is neglected. Therefore, adequate maintenance facll ltles, personnel and procedures should be provided. Maintenance and Inspection of all powered industrial trucks should be performed in conformance with the reconmendatlon In this manual and the following practices.
• 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed. 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks. 3. Befor e Leaving The Truck; A. Stop truck. B. Fully lower the load engaging means. c. Place d I rect Iona I controls in neutral. D. Apply the parking brake. E. Stop the engine or turn off F. Lock the control or G. BI ock the whee ls if 4. Before Working On Truck ; Ignition truck is power. circuit. on a ramp, or being worked on.
• A. Raise wheels free of floor or disconnect power source. B. Use chocks or other positive truck positioning devices. C. Block load engaging means, lnnermast(s), or chassis before working under them. Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed. Before working on engine-fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel In system ls depleted and engine stops running.
• Operation to check performance of the truck or attachments should be conducted in an authorized, safe clearance area. s. Before Starting To Operate The Truck; A. Be in operating position. B. Depress clutch (or brake pedal on autanatlc transmission and electric trucks). C. Place directional controls in neutral. D. Start engine or turn on power. E. Before operating truck, check functioning of lift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.

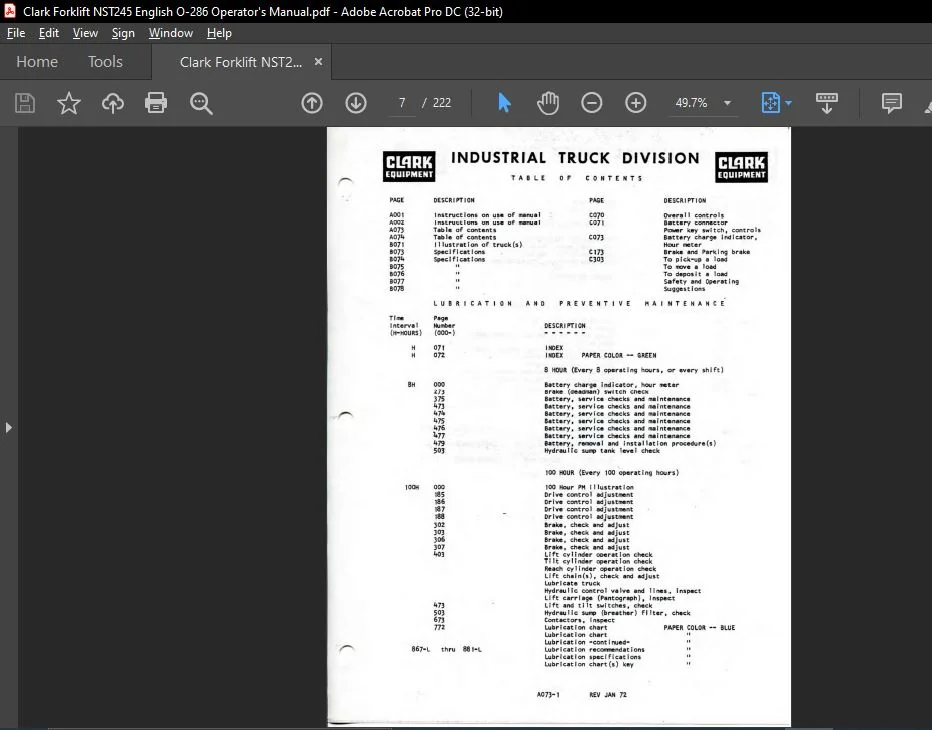

Table Of Contents:

Clark Forklift NST245 English O-286 Operator’s Manual

INDEX PAPER COLOR — GREEN
8 HOUR (Every 8 operating hours, or every shift)
Battery charge Indicator, hour meter
Brake (deadman) switch check
Battery, service checks and maintenance
Battery, service checks and maintenance
Battery, service checks and maintenance
Battery, service checks and maintenance
Battery, service checks and maintenance
Battery, service checks and maintenance
Battery, removal and installation procedure(s)
Hydraulfc sump tank level check
100 HOUR (Every 100 operating hours)
!OOH 000 100 Hour PH illustration
Drive control adjustment
Drive control adjustment
Drive control adjustment
Drive control adjustment
Brake, check and adjust
Brake, check and adjust
Brake, check and adjust
Brake, check and adjust
867-L thru 881-L
Lift cylinder operation check
Tilt cylinder operation check
Reach cylinder operation check
Lift chaln(s), check and adjust
Lubricate truck
Hydraulfc control valve and lines, Inspect
Lift carriage (Pantograph), Inspect
Lift and tilt switches, check
Hydraulic sump (breather) filter, check
Contactors, Inspect
Lubrication chart
Lubrication chart
Lubrication •continuedLubrication
recorrmendations
Lubrication specifications
Lubrication chart(s) key

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
