CLARK FORKLIFT OH-420 EC500 355 3648 VolT OVERHAUL MANUAL

Description

CLARK FORKLIFT OH 420 EC500 355 3648 VolT OVERHAUL MANUAL – PDF DOWNLOAD

Need help? Contact: [email protected]

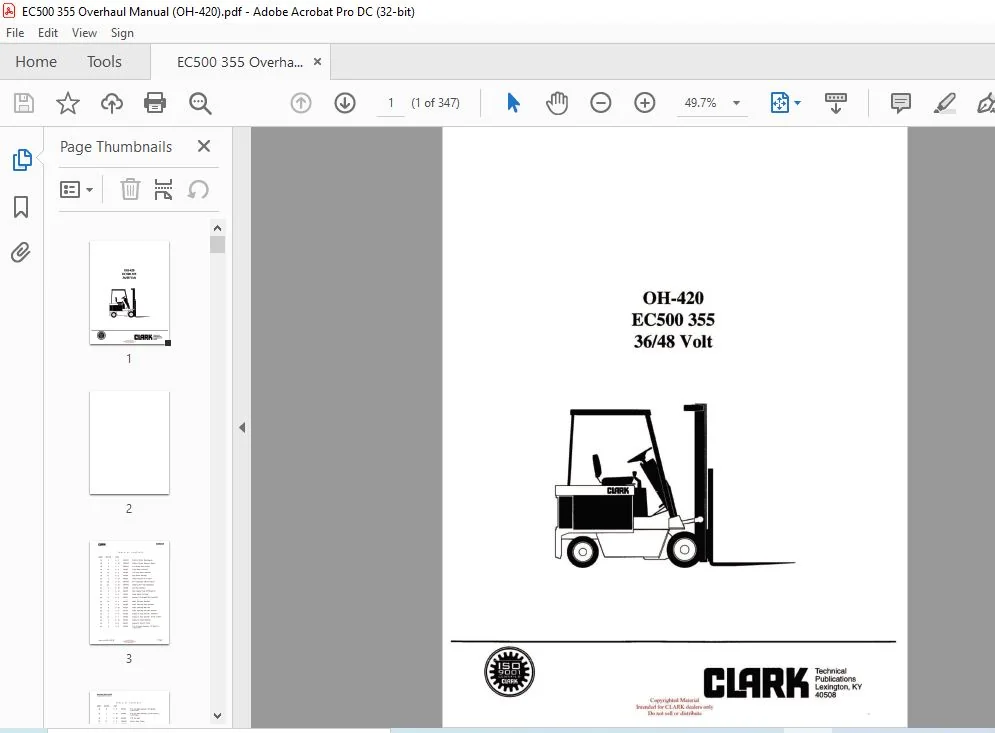

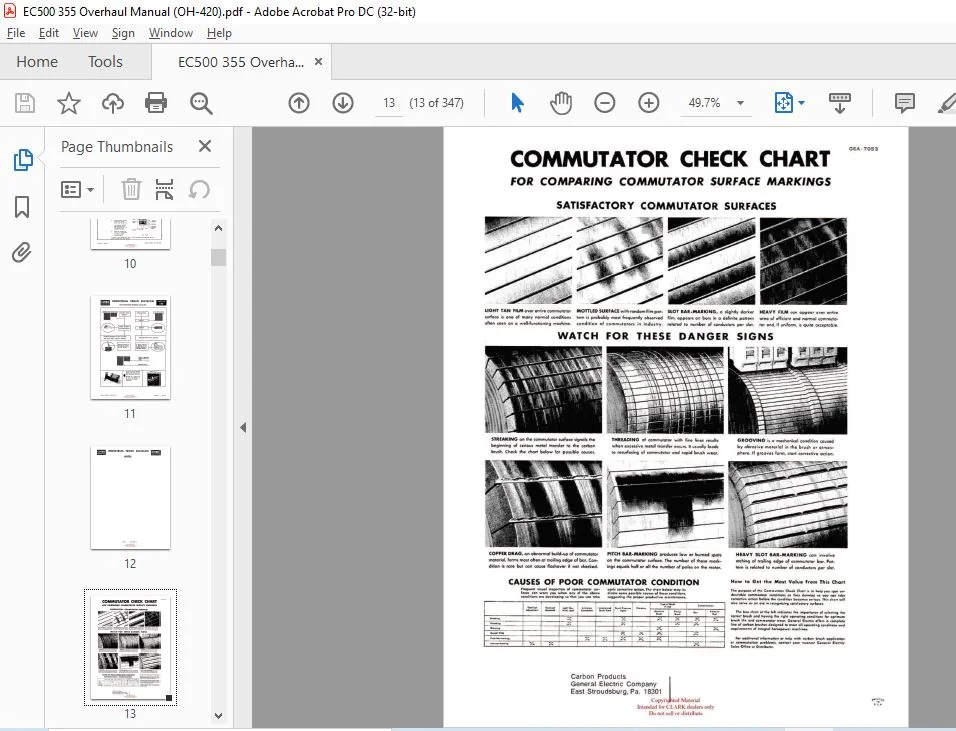

Image Preview:

Description:

CLARK FORKLIFT OH 420 EC500 355 3648 VolT OVERHAUL MANUAL – PDF DOWNLOAD

• Powered industrial trucks may become hazardous if adequate maintenance is neglected. Therefore, adequate maintenance facil !ties, personnel and procedures should be provided. Maintenance and Inspection of all powered industrial trucks should be performed in conformance with the recommendation in this manual and the following practices. 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed. 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks
• . 3. S?fore Leaving The Truck: A. Stop truck. B. Fully lower the 1 oad engaging c. Place directional controls in D. Apply the parking brake. means. neutral. E. Stop the engine or turn off power. F. Lock the control or G. Block the wheels if 4. Before Working On Truck: ignition circuit. truck is on a ramp, or being worked on. A. Raise wheels free of floor or disconnect power source. 8. Use chocks or other positive truck positioning devices. C. Block load engaging means, innermast(s), or chassis before working under them. Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed.
• Before working on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel in system ls depleted and engine stops running. Operation to check performance of the truck or attachments should be conducted in an authorl?ed, safe clearance area. 5. Before Starting To Operate The Truck; A. Be in operating position.
• B. Depress clutch (or brake pedal on automatic transmission and electric trucks). C. Place directional controls in neutral. D. Start engine or turn on power. E. Before operating truck, check functioning of lift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.

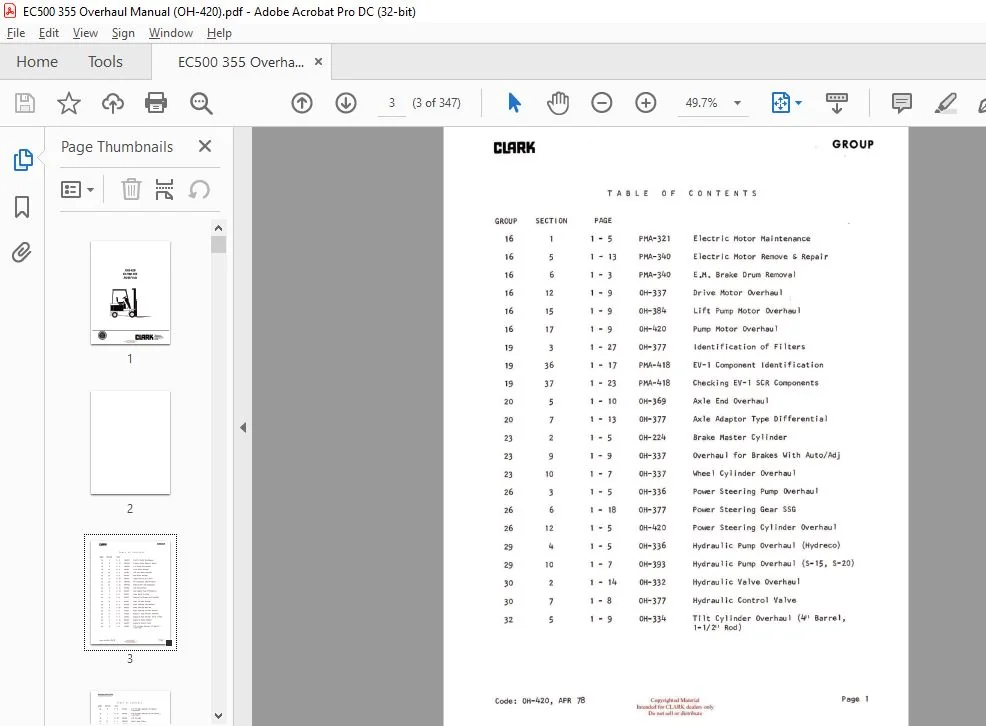

Table Of Contents:

CLARK FORKLIFT OH 420 EC500 355 3648 VolT OVERHAUL MANUAL – PDF DOWNLOAD

Electric Motor Maintenance
Electric Motor Remove & Repair
E.M. Brake Drum Removal
Drive Motor Overhaul
Lift Pump Motor Overhaul
Pump Motor Overhaul
Identification of Filters
EV-1 Component Identification
Checking EV-1 SCR Components
Axle End Overhaul
Axle Adaptor Type Differential
Brake Master Cylinder
Overhaul for Brakes With Auto/Adj
Wheel Cylinder Overhaul
Power Steering Pump Overhaul
Pov,.,er Steering Gear SSG
Power Steering Cylinder Overhaul
Hydraulic Pump Overhaul (Hydreco)
Hydraulic Pump Overhaul (S-15, S-20)
Hydraulic Valve Overhaul
Hydraulic Control Valve
Tilt Cylinder Overhaul (411 Barrel,
1- 1 / 211 Rod )

Please Note:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
