Clark Forklift P40 P60 English O 142 Operator’s Manual – PDF DOWNLOAD

Description

Clark Forklift P40 P60 English O-142 Operator’s Manual

CLARK FORKLIFT P40 P60 ENGLISH O 142 OPERATOR’S MANUAL – PDF DOWNLOAD:

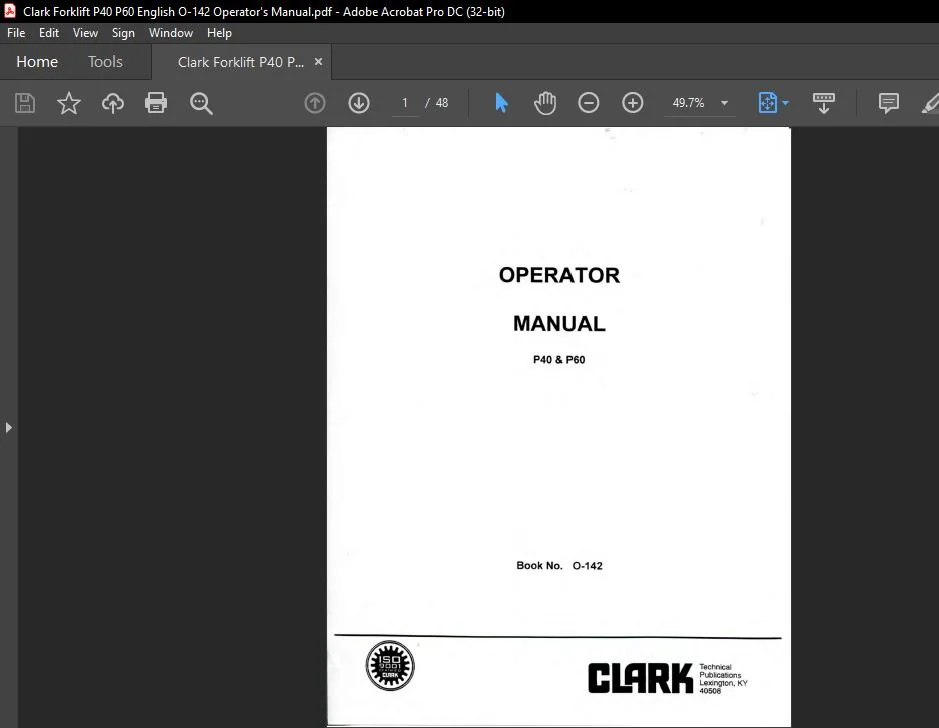

Image Preview:

Description:

Clark Forklift P40 P60 English O-142 Operator’s Manual

• SAFETY INSTRUCTIONS FOR MAINTAINING INDUSTRIAL TRUCKS Powered industrial trucks may become hazardous if adequate maintenance is neglected. Therefore, adequate maintenance facilities, personnel and procedures should be provided. Maintenance and inspection of all powered industrial trucks should be performed in conformance with the recOl!Vllendation in this manual and the fol lowing practices.
• 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed. 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks. 3, Before Leaving The Truck: A. Stop truck. B. Fully lower the load engaging means. C. Place directional controls in neutral. D. Apply the parking brake. E. Stop the engine or turn off power.
• F. Lock the control or ignition circuit. G. Block the wheels if truck is on a ramp, or being worked on. 4. Before Working On Truck: A. Raise wheels free of floor or disconnect power source. B. Use chocks or other positive truck positioning devices. C. Block load engaging means, innermast(s), or chassis before working under them. Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed. Before working on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel in system Is depleted and engine stops running.
• Operation to check performance of the truck or attachments should be conducted in an authorized, safe clearance area. 5. Before Starting To Operate The Truck: A. Be in operating position. B. Depress clutch (or brake pedal on automatic transmission and electric trucks). C. Place directional controls in neutral.
• D. Start engine or turn on power. E. Before operating truck, check functioning of 1 ift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.

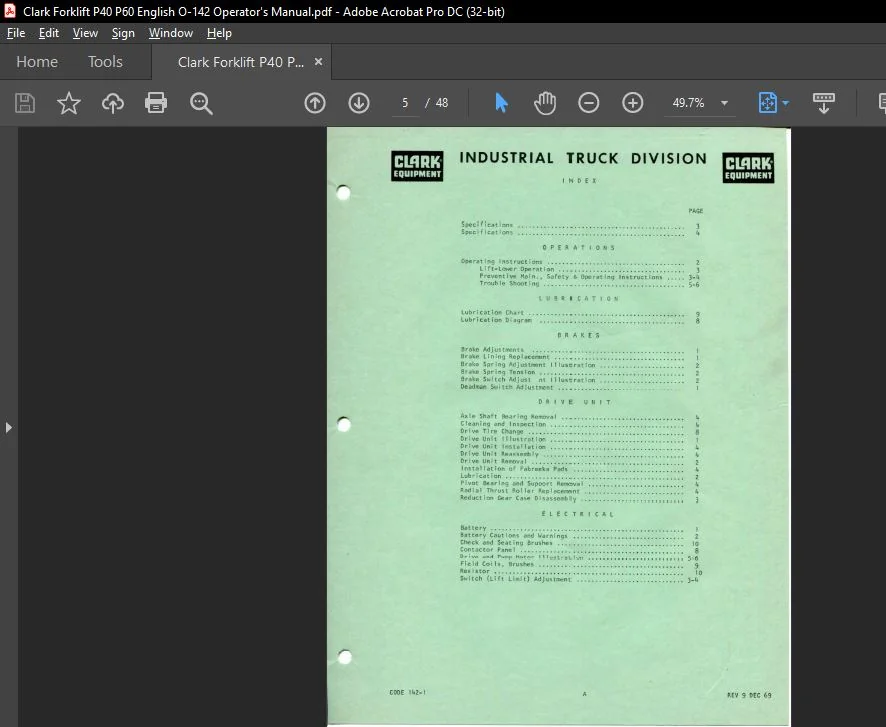

Table Of Contents:

Clark Forklift P40 P60 English O-142 Operator’s Manual

Specifications
Specifications
I N D E X
D P E R A T I O N S
PAGE
Operating Instructions . .. . . . . . . . .. . . . . . .. . . . . . . . . . . . . . . . . . . 2
Lift-Lower Operation .. .. .. ….. .. .. .. .. .. . .. .. .. … . .. 3
Preventive Main., Safety & Operating Instructions ….. 3-4
Trouble Shooting ..•…………………………….. 5-6
L U B R I C A T I O N
Lubr’cat’on Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lubrication Diagram
B R A K E S
9
8
Brake Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l
Brake Lining Replacement . .. .. .. .. .. .. . .. . . .. . .. . .. .. .. • . .. . l
Brake Spring Adjustment Illustration .. ….. …..•. ……. .. 2
Brake Spring Tension . . . .. .. …… . .. .. .. .. .. . .. . .. .. …. .. . 2
Brake Switch Adjust nt Illustration ….. .. …… …….. .. 2
Deadman Switch Adjustment …………••………………•.
D R I V E U N I T
Axle Shaft Bearing Removal .. .. .. .. . .. .. . .. . .. . . • . . . .. .. . .. . 4
Cleaning and Inspection . . .. .. .. …. .. . . . .. . .. . … . … . .. .. . 4
Drive Ti re Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . • . . . . . . 8
Drive Unit 11 lustration .. . .. . . . . . . .. .. . .. .. .. . . . . . . . . . . . . .. l
Drive Unit Installation ……………………………… 4
Drive Unit Reassembly .. .. .. .. . .. . .. . .. .. … . .. . . .. . . . . … .. 4
Drive Unit Removal .. .. .. .. .. . .. .. . . . .. .. .. . . . . . . .. .. . . . . .. . 2
Installation of Fabreeka Pads ….. ………. ….. ….. .. … 4
Lubrication . . .. . . . . . . . . .. . . . .. . . . . •.. . . . . . . . . . . . . .. . .. . . . .. 2
Pivot Bearing and Support Removal ..•… …. …. .. … .• ….. 4
Radial Thrust Roller Replacement …. ….. ……… …….. 4
Reduction Gear Case Disassembly . .. ….. .. . .. . ………….. 3
E L E C T R I C A L
Battery . . . . . . . . • . . . . . . . . . . . . . . . . . . . . . . . . . . • . . . . . . . . . . . . . . . . l
Battery Cautions and Warnings … .. … ………….. …….. 2
Check and Seating Brushes …………………•…….•…. 10
Contactor Pane 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Drive and Pump Motor 11 lustration …………………….. 5-6
Field Coils, Brushes . . . .. .. . .. . . . . . . . . . .. . .. .. .. . . .. . . . .. . 9
Resistor . . . . . . . . . . . . . . . . . . . . . . . . . . • . . . . . . . • . . . . . . . . . . . . . . . . I 0
