CLARK FORKLIFT SM-607G GT30,50,60E Gasoline Tractor SERVICE MANUAL

Description

CLARK FORKLIFT SM 607G GT30,50,60E Gasoline Tractor SERVICE MANUAL – PDF DOWNLOAD

Need help? Contact: [email protected]

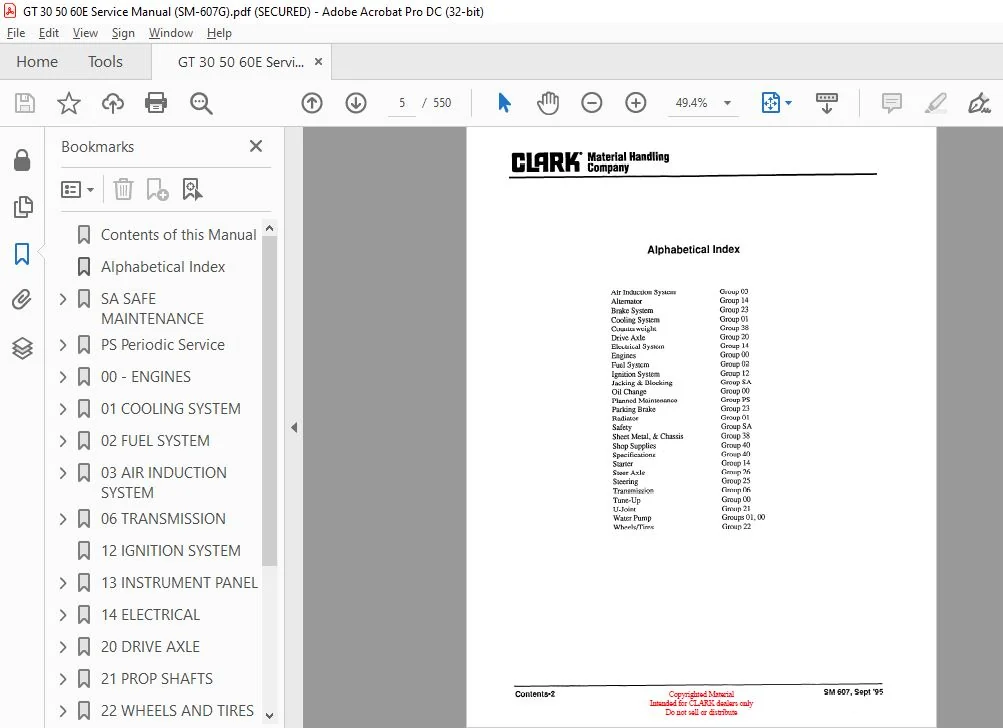

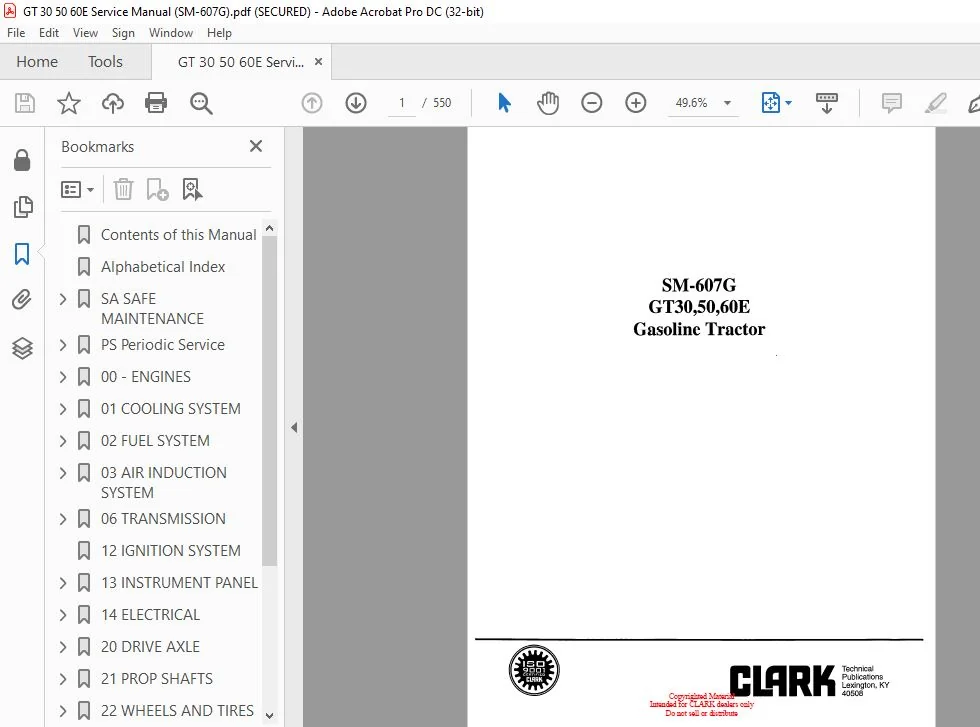

Image Preview:

Description:

CLARK FORKLIFT SM 607G GT30,50,60E Gasoline Tractor SERVICE MANUAL – PDF DOWNLOAD

• Operation of the truck to check performance must be conducted in an authorized, safe, clear area. Before starting to drive truck: a. Be in operating position. b: Be sure parking brake is engaged. c. Put direction control in neutral. d. Start engine. e. Check functioning of direction and speed controls, steering, brakes and warning devices. Before leaving truck a. Stop truck. b. Put directional control in neutral. c. Apply the parking brake. d. Stop the engine by turning off the ignition circuit. e. Put blocks at the wheels if truck is on an incline.
• Brakes, steering mechanisms, control mechanisms, warning devices, lights, governors, guards, safety devices, and frame members must be carefully and regularly inspected and maintained in a safe operating condition. Special trucks or devices designed and approved for hazardous area operation must receive special attention to ensure that maintenance preserves the original, approved, safe-operating features. Fuel systems must be checked for leaks and condition of parts. Extra special consideration must be given in the case of a leak in the fuel system.
• Action must be taken to prevent the use of the truck until the leak has been corrected. The truck manufacturer’s capacity, operation, and maintenance instruction plates, tags, or decals must be maintained in legible condition. Batteries, motors, controllers, limit switches, protective devices, electrical conductors, and connections must be inspected and maintained in conformance with good practice.
• Special attention must be paid to the condition of electrical insulation. To avoid injury to personnel or damage to the equipment, consult the manufacturer’s procedures in replacing contacts on any battery connection. Industrial trucks must be kept in a clean condition to minimize fire hazards and help in the detection of loose or defective parts. 19. 20. 21. Modifications and additions that affect capacity and safe truck operation must not be done without the manufacturer’s prior written approval.
• Capacity, operation and maintenance instruction plates, tags, or decals must be changed accordingly. This is an OSHA requirement. Care must be taken to assure that all replacement parts, including tires, are interchangeable with the original parts and of a quality at least equal to that provided in the original equipment. Parts, including tires, are to be installed per the manufacturer’s procedures.
• Always use genuine CLARK or CLARK-approved parts. Use special care when removing heavy components from the truck, such as counterweight, seat deck, etc. Be sure that towing equipment is of the correct capacity and in good condition. The frame must always be safely blocked for major component removal. NOTE You should also be familiar with additional operating and maintenance safety instructions contained in the following publications: ANSI/ASME B56.9 – 1992 Operator Controlled Industrial Tow Tractors (Safety Code For Powered Industrial Trucks).
• Published by: American Society of Mechanical Engineers, United Engineering Center, 345 E. 47th Street, New York, NY 10017. NFPA 505-1982: Fire Safety Standard for Powered Industrial Trucks: Type Designations, Areas of Use, Maintenance and Operation. Available from: National Fire Protection Assoc., Inc., Batterymarch Park, Quincy, MA 02269. General Industrial Standards, OSHA 2206: OSHA Safety and Health Standards (29 CFR 1910), Subpart N-Materials Handling and Storage, Section 19 10.178 Powered Industrial Trucks. For sale by: Superintendent of Documents, U.S. Government Printing Office, Washington, DC 20402.

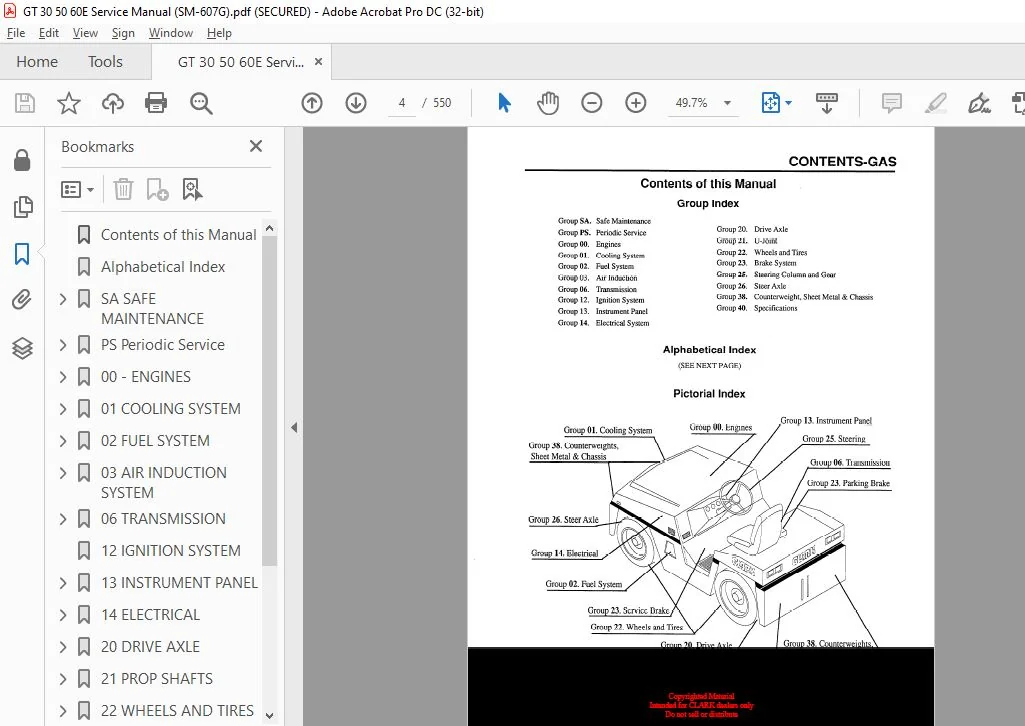

Table Of Contents:

CLARK FORKLIFT SM 607G GT30,50,60E Gasoline Tractor SERVICE MANUAL – PDF DOWNLOAD

Group SA. Safe Maintenance
Group PS. Periodic Service
Group 00. Engines
Group 01. Cooling System
Group 02. Fuel System
Group 03. Air Induction
Group 06. Transmission
Group 12. Ignition System
Group 13. Instrument Panel
Group 14. Electrical System
Group 01. Cooling System
Group 38. Counterweights,
Sheet Metal & Chassis
Group Index
Group 20. Drive Axle
Group 21. U-Joint
Group 22. Wheels and Tires
Group 23. Brake System
Group 25. Steering Column and Gear
Group 26. Steer Axle
Group 38. Counterweight, Sheet Metal & Chassis
Group 40. Specifications

Please Note:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
