CLARK FORKLIFT SM576 OPI 5B SERVICE MANUALS

Description

CLARK FORKLIFT SM576 OPI 5B SERVICE MANUALS – PDF DOWNLOAD

CLARK FORKLIFT SM576 OPI 5B SERVICE MANUALS:

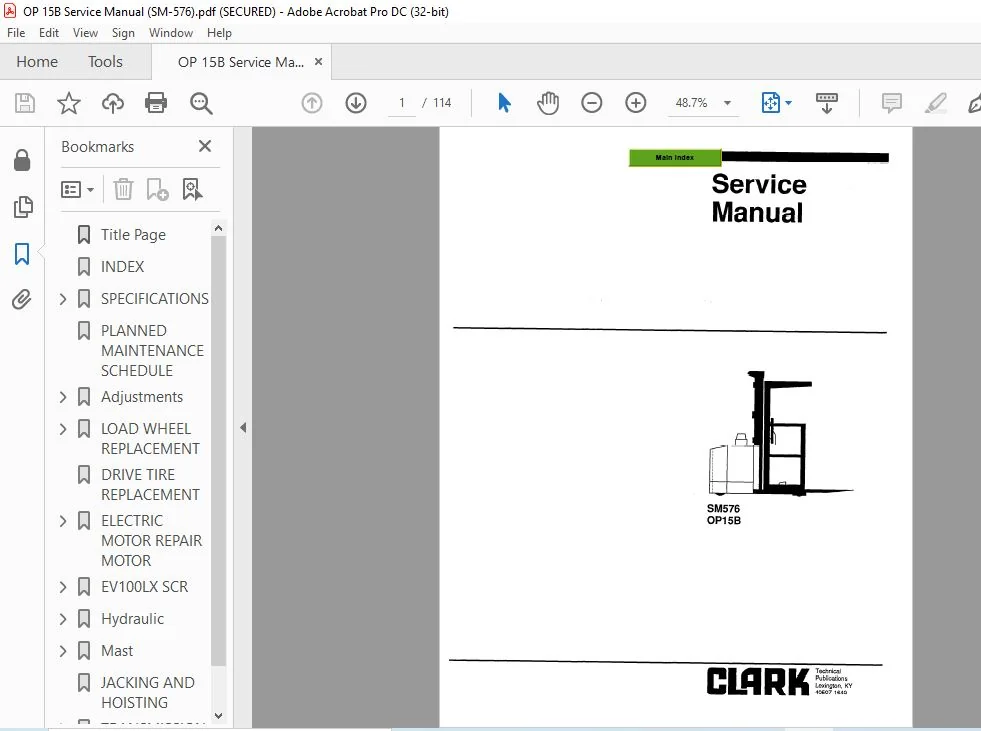

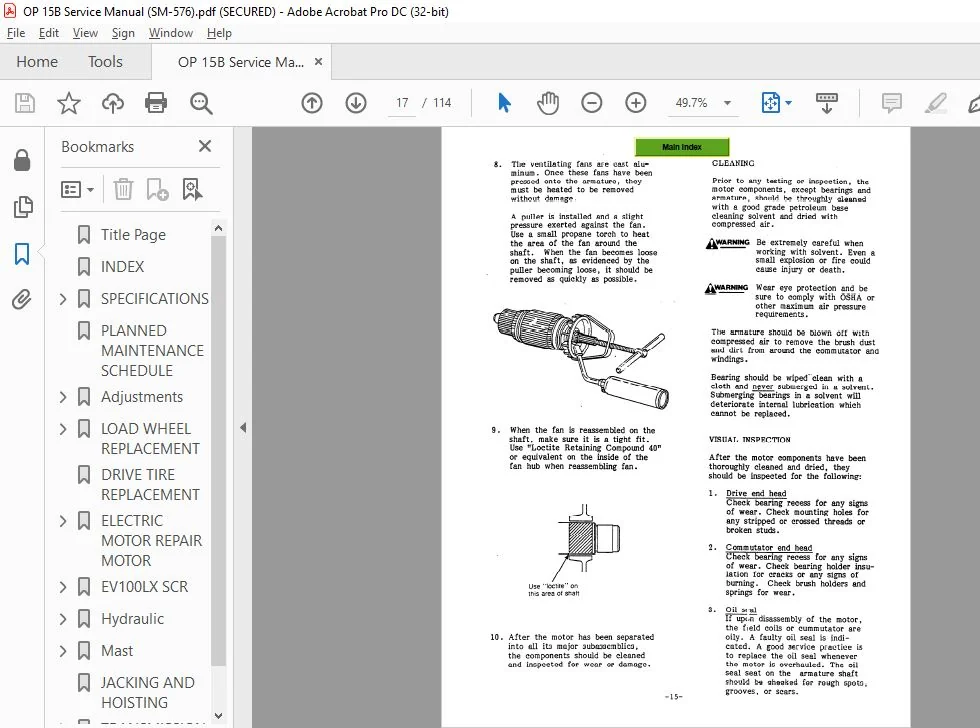

Image Preview:

Description:

CLARK FORKLIFT SM576 OPI 5B SERVICE MANUALS – PDF DOWNLOAD

• The brake release cylinder should have 318″ to 112″ of travel. The cylinder travel itself is non-adjustable and the only brake adjustment is the agressiveness adjusting’screws on the side cover of the transmission case.
• Three allen head screws at the top of the transmission side cover adjust braking agressiveness. Loosen the locknuts and turn all three screws out of the transmission case until no force is felt pushing against any screw. Turn the screws back into the transmission case just until spring resistance is felt. Now turn each screw an additional tw turn and tighten lock nut. Test braking action.
• 3.0 Brake Interlock Switch Make any required brake adjustment prior to this adjustment. Leave the brake pedal up. Loosen the switch on the bracket and slide the switch towards the cam arm until it clicks and then slide approximately l/32″ further. Tighten the switch. Test the switch by stepping on the brake pedal. The switch should activate with approximately l/32″ movement of the brake rod.
• 5.0 Steering steering is cable and chain operated and power assisted through the use of a hydraulic torque generator. Because of the complexity of the steering linkage, if any adjustments are required, the 5.1 entire adjusting procedure must be followed. 5.2 5.3 Adjust transmission steering ring guide rollers snug, but not tight, against the guide ring. Guide rollers are mounted on eccentric pins. Loosen bolts and turn cam on eccentric.
• Be sure to tighten nuts or bolts. Adjust steering chain around transmission and bottom sprocket of torque generator. Loosen two 3/8″ NC bolts that lock chain ends to transmission case. Turn adjusting turn buckle to tighten chain so that it has l/8″ to l/4″ of slack. Tighten locking bolts. Adjust upper chain around torque generator and jackshaft. Jackshaft mounting bracket is on a pivot. Loosen locknuts on stud and pivot mounting bracket to adjust chain for l/8″ to l/4″ of slack. Tighten lock nuts.

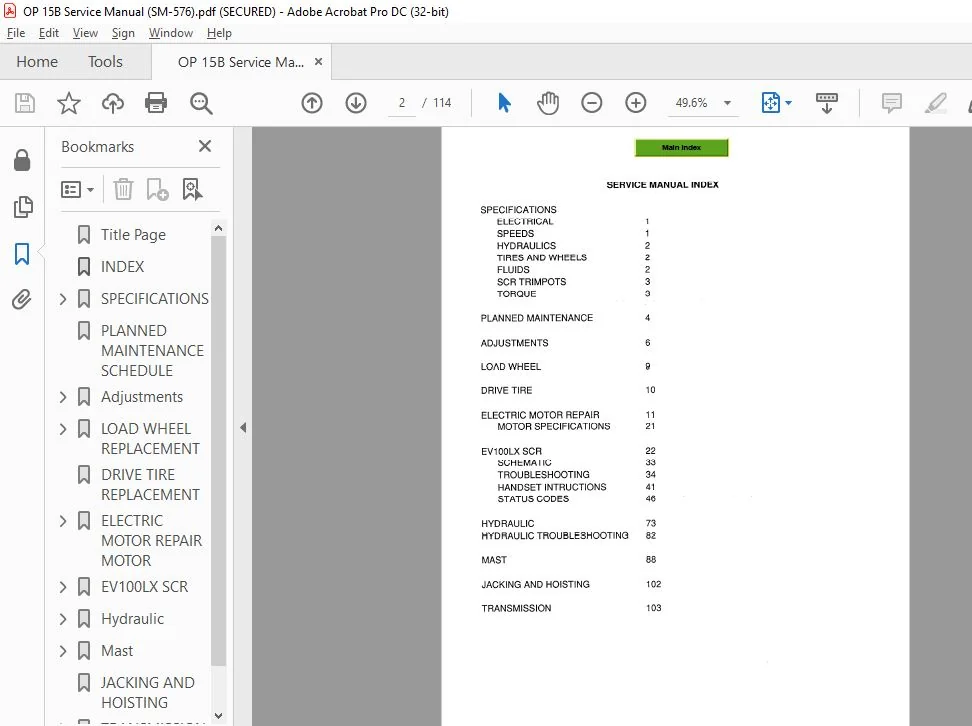

Table Of Contents:

CLARK FORKLIFT SM576 OPI 5B SERVICE MANUALS – PDF DOWNLOAD

SPECIFICATIONS
ELECTRICAL
SPEEDS
HYDRAULICS
TIRES AND WHEELS
FLUIDS
SCR TRIMPOTS
TORQUE
PLANNED MAINTENANCE 4
ADJUSTMENTS 6
LOAD WHEEL 9
DRIVE TIRE IO
ELECTRIC MOTOR REPAIR
MOTOR SPECIFICATIONS
11
21
EVl OOLX SCR 22
SCHEMATIC 33
TROUBLESHOOTING 34
HANDSET INTRUCTIONS 41
STATUS CODES 46
HYDRAULIC 73
HYDRAULIC TROUBLESHOOTING 82
MAST
JACKING AND HOISTING
TRANSMISSION

Please Note:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
