CLARK FORKLIFT SPM 629 CST 101520 SERVICE MANUAL

Description

CLARK FORKLIFT SPM 629 CST 101520 SERVICE MANUAL – PDF DOWNLOAD

CLARK FORKLIFT SPM 629 CST 101520 SERVICE MANUAL:

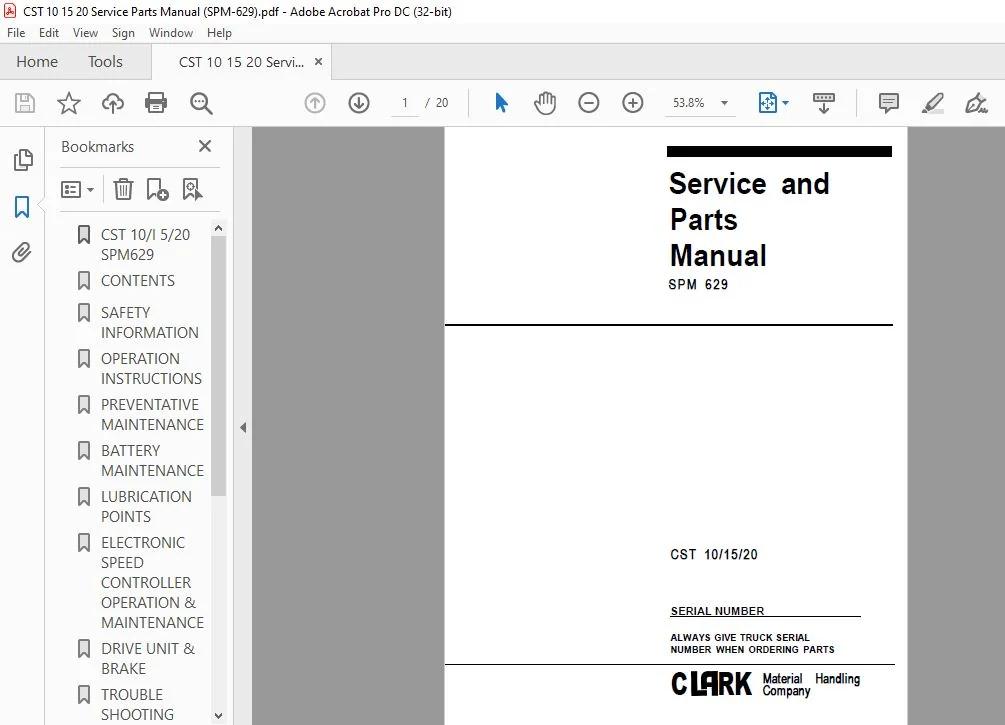

Image Preview:

Description:

CLARK FORKLIFT SPM 629 CST 101520 SERVICE MANUAL – PDF DOWNLOAD

• Do not operate this truck unless you have been trained and authorized to do so. 2. Do not operate this truck until you have checked its operation and condition. Give special attention to tires, battery, controls, lifting systems including switches, brakes, steering mechanism, guards and safety devices. 3. Report the need for truck repairs to your supervisor immediately and do not operate truck until repairs are made. Neglect may cause a minor repair to become a major service problem and cause the truck to become unsafe.
• 4. Do not exceed the rated capacity of the vehicle as marked on nameplate. 5. Do not lift with the fork tips or one fork only, if equipped. 6. Units equipped with forks are designed for evenly centered loads with forks completely supporting the load. Off-centering of loads can result in a dangerous operating condition and may cause damage or injury. 7. Always look in direction of travel. Use caution when load interferes with visibility. 8. Extreme caution must be used when handling or trasporting loosely stacked/packaged loads.
• 9. Watch swing clearance when turning near walls, racks, pillars or other obstacles. 10. Start, stop, change direction, travel and brake smoothly. Slow down for turns and on ramps and uneven or slippery surfaces that could cause truck to slide or tip. Be aware that the truck behaves differently without a load than with a load. 11. Know and understand gradeability capabilities of this vehicle. Maximum recommended gradeability under load not to exceed 5%. Straddle type equipment is designed for level surface only.
• Do not leave truck unattended on ramp. 12. Observe applicable traffic regulations.Yield right of way to pedestrians. Slow down and sound horn at all aisle intersections and where vision is obstructed. 13. Do not ride on this equipment unless it has been equipped and designed for such use. 14. Do not allow personnel to stand under the forks, if equipped (loaded or unloaded) when forks are in the raised position.
• 15. Do not carry passengers or lift personnel. 16. Before you leave the truck, fully lower lifting mechanism, shut off power and keyswitch (if equipped) and apply parking brake (if equipped). 17. Do not use forward mast tilt (if equipped), with the load elevated unless the load is directly over other support. 18. When traveling with or without a load, forks should be in lower most position and tilted back if applicable.
• 19. For straddle trucks, straddle distance must be equally spaced in relation to truck chassis. Straddle inside dimension must be set at a minimum of 25% of maximum lifting height. Straddle legs adjustment should be done by authorized representatives.

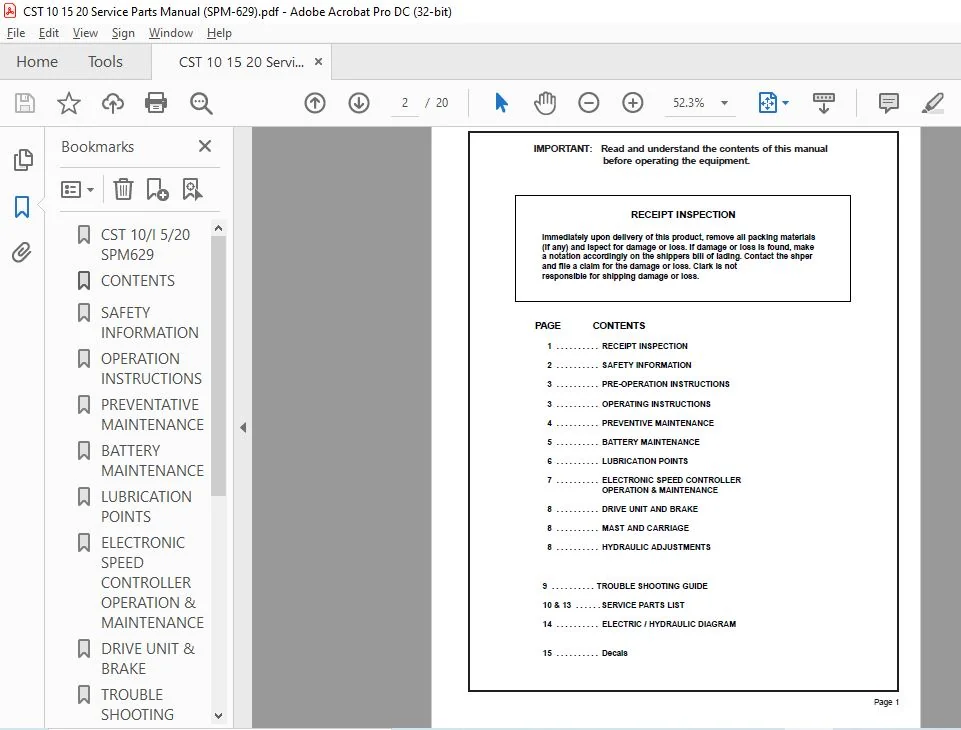

Table Of Contents:

CLARK FORKLIFT SPM 629 CST 101520 SERVICE MANUAL – PDF DOWNLOAD

CST 10/l 5/20 SPM629................................... 1
CONTENTS............................................... 2
SAFETY INFORMATION..................................... 3
OPERATION INSTRUCTIONS................................. 4
PREVENTATIVE MAINTENANCE............................... 5
BATTERY MAINTENANCE.................................... 6

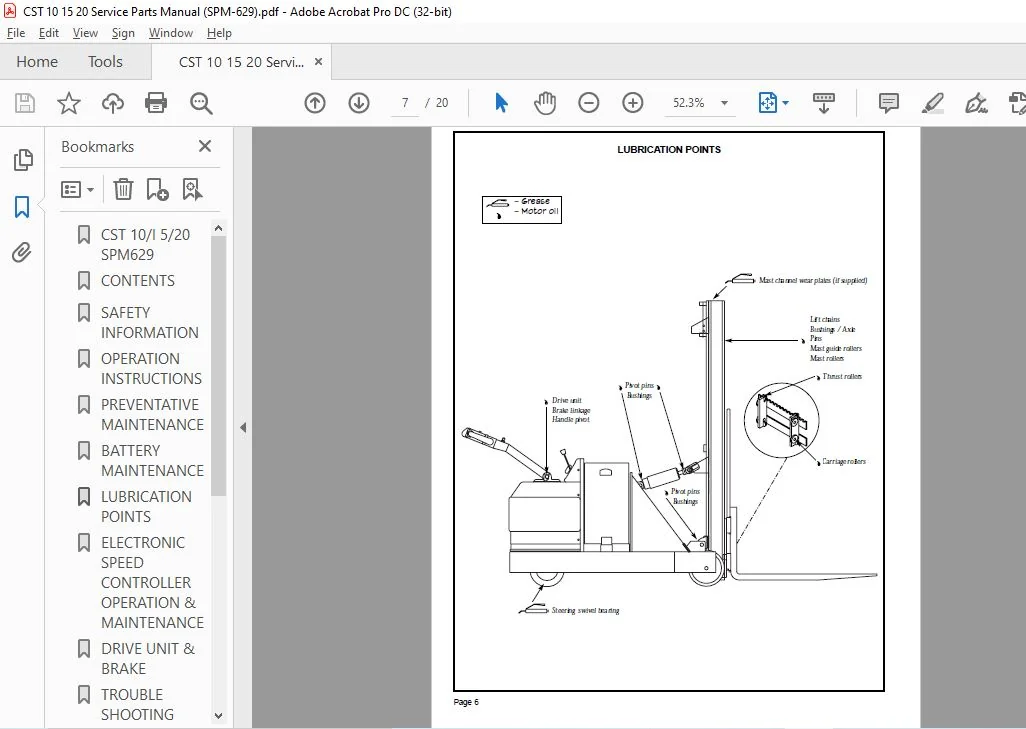

LUBRICATION POINTS..................................... 7
ELECTRONIC SPEED CONTROLLER OPERATION & MAINTENANCE.... 8
DRIVE UNIT & BRAKE..................................... 9
TROUBLE SHOOTING GUIDE.................................10
POWER PACK SUB-ASSEMBLY................................11
POWER PACK SUB-ASSEMBLY................................12
ELECTRICAL SUB-ASSEMBLY................................13
ELECTRICAL SUB-ASSEMBLY................................14
DRIVE UNIT.............................................15
BODY ASSEMBLY..........................................17
ELECTRIC / HYDRAULIC DIAGRAM...........................19
Decals.................................................20

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
