Service Manual for Clark Forklift CTT 3 (SPM 642)

Description

CLARK FORKLIFT SPM 642 CTT 3 SERVICE MANUALS – PDF DOWNLOAD

Contact us: [email protected]

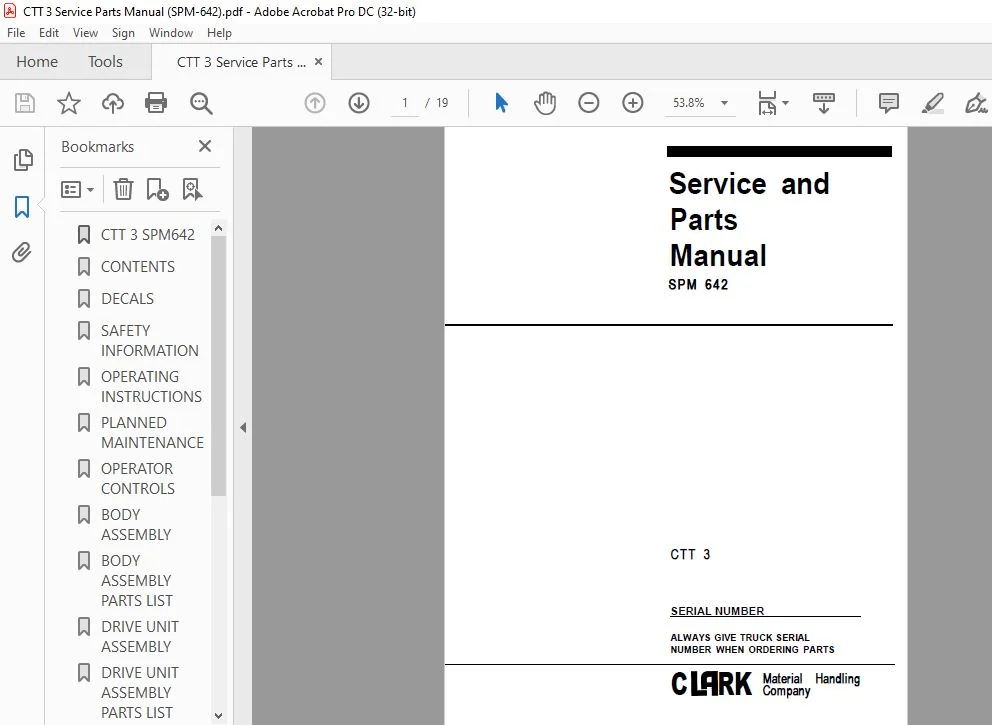

Image Preview:

Description:

CLARK FORKLIFT SPM 642 CTT 3 SERVICE MANUALS – PDF DOWNLOAD

• Do not operate this Tow Tractor unless you have been trained and authorized to do so. • Do not operate this Tow Tractor until you have checked its condition. Give special attention to the tires, battery, controls, switches, brakes steering mechanism, guards, and safety devices. • Report the need for repairs to your supervisor immediately and do not operate the Tow Tractor until the repairs are made.
• Neglect may cause a minor repair to become a major service problem and cause the Tow Tractor to become unsafe. • Operate this Tow Tractor from a seated position only. Do not operate Tow Tractor while standing. • Do not exceed the rated capacity of the Tow Tractor as marked on the nameplate. • Always look in the direction of travel. Use caution when load interferes with visibility.
• • Extreme caution must be used when towing loosely stacked / packaged loads. • Watch clearance when turning near walls, racks, pillars and other obstacles. • Start, stop, change direction, travel, and brake smoothly. Slow down for turns on uneven or slippery surfaces. Be aware that the Tow Tractor behaves differently without a load than with a load. • The Tow Tractor is designed for level surface use only.
• • Yield right of way to pedestrians. Slow down and sound the horn at aisle intersections and where vision is obstructed. • Do not carry passengers. • Before you leave the truck unattended, apply the parking brake and shut off all power.

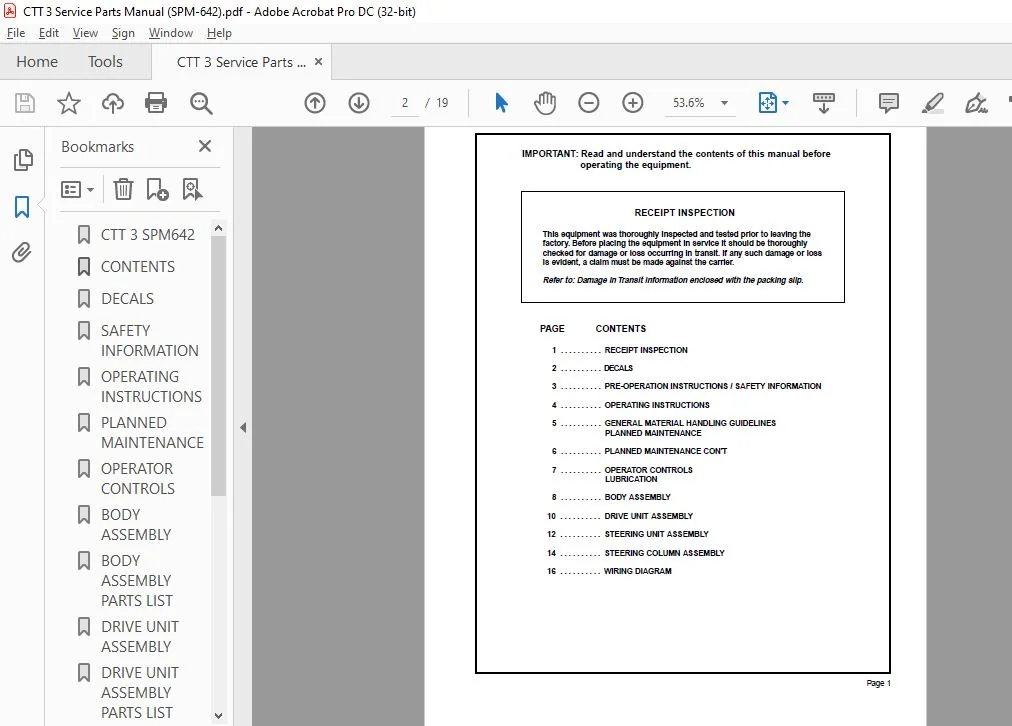

Table Of Contents:

CLARK FORKLIFT SPM 642 CTT 3 SERVICE MANUALS – PDF DOWNLOAD

RECEIPT INSPECTION
2 . . . . . . . . . . DECALS
3 . . . . . . . . . . PRE-OPERATION INSTRUCTIONS / SAFETY INFORMATION
4 . . . . . . . . . . OPERATING INSTRUCTIONS
5 . . . . . . . . . . GENERAL MATERIAL HANDLING GUIDELINES
PLANNED MAINTENANCE
6 . . . . . . . . . . PLANNED MAINTENANCE CON’T

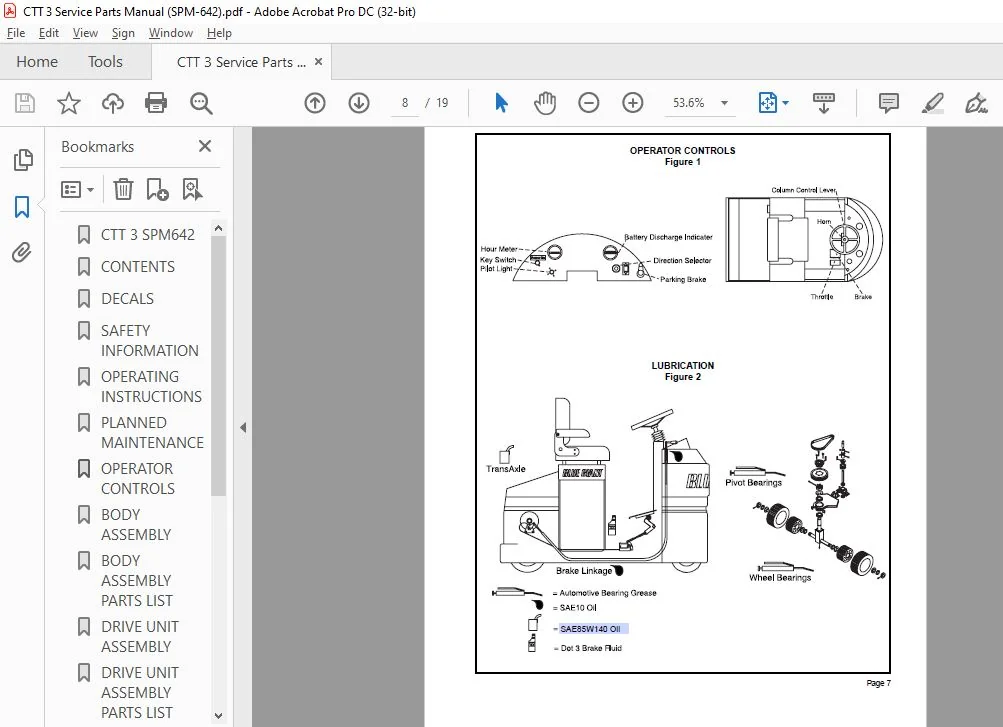

7 . . . . . . . . . . OPERATOR CONTROLS
LUBRICATION
8 . . . . . . . . . . BODY ASSEMBLY
10 . . . . . . . . . . DRIVE UNIT ASSEMBLY
12 . . . . . . . . . . STEERING UNIT ASSEMBLY
14 . . . . . . . . . . STEERING COLUMN ASSEMBLY
16 . . . . . . . . . . WIRING DIAGRAM

Please Note:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
