Clark Forklift Y2235 Marina Truck English OM-579M Operator’s Manual

Description

Clark Forklift Y2235 Marina Truck English OM 579M Operator’s Manual – PDF DOWNLOAD

CLARK FORKLIFT Y2235 MARINA TRUCK ENGLISH OM-579M OPERATOR’S MANUAL:

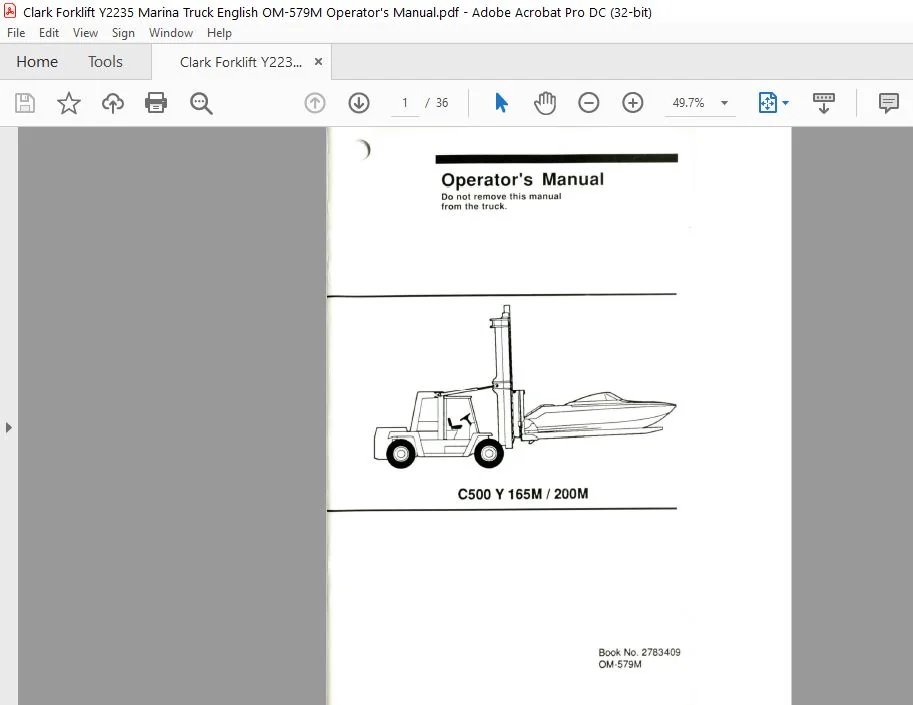

Image Preview:

Description:

Clark Forklift Y2235 Marina Truck English OM 579M Operator’s Manual – PDF DOWNLOAD

• Marina trucks are built in two configurations: 109 inch and 130 inch wheel base with 16,500 lbs [7 500 kg) and 20,000 lbs [ 9 000 kg) capacity at a 96 inch load center respectively. 360 inch (9144 mm) and 480 inch [12 192 mm] maximum fork height uprights are available on either capacity. 18 and 20 foot (5 .49 and 6.10 meter) forks are available.
• The truck nameplate provides the specific capacity of your truck. The upright is of a “High Visibility” design which provides maximum load handling visibility. Note however, that it is still very difficult to see the pointed end of a long load except when it is elevated and impossible when inserting a boat into a floor level rack. The forks, which can be pivoted individually or in tandem, can be adjusted to fit a variety of hulls.
• After the boat is in the water, spreading each fork outward facilitates floating it off. Moving the forks in tandem (sideshifting) facilitates positioning the boat in the rack. The forks are covered with a tough, synthetic elastomer jacket. This protects boat hulls against scarring by the forks and provides a non-slip surface. The jacket can be rotated to obtain maximum wear life.
• It should be checked regularly to prevent damage occurring to boat hulls and possible load slippage. Load handling hydraulic functions, lift, tilt and fork pivot, are protected against movement in the event of a hydraulic line failure. A method is provided on page 1.13 to lower the load from this “hydraulic lock” condition if it should occur with an elevated load.

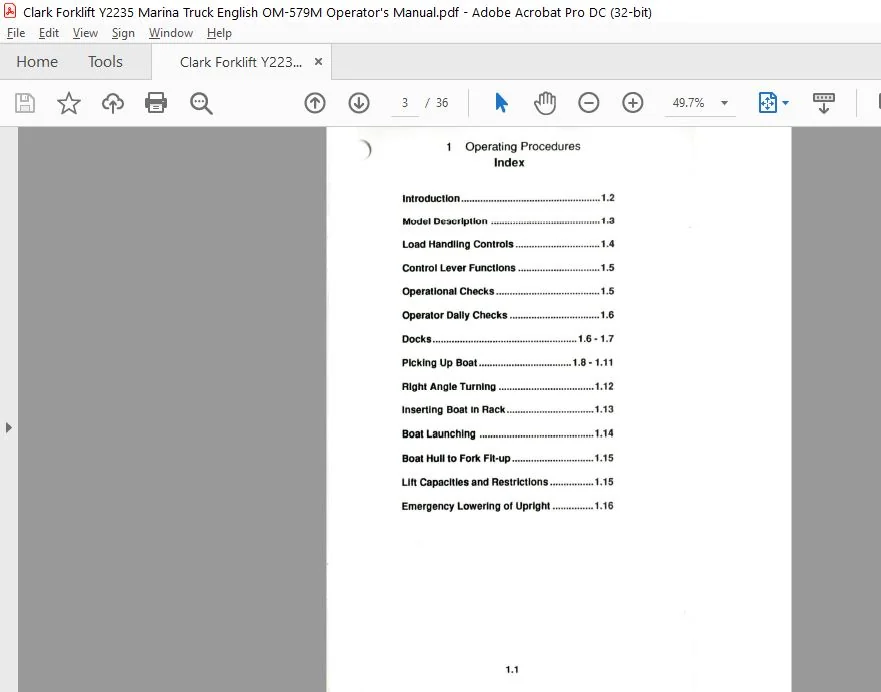

Table Of Contents:

Clark Forklift Y2235 Marina Truck English OM 579M Operator’s Manual – PDF DOWNLOAD

Introduction …………………………………………… 1.2
Model Description …………………………………. 1.3

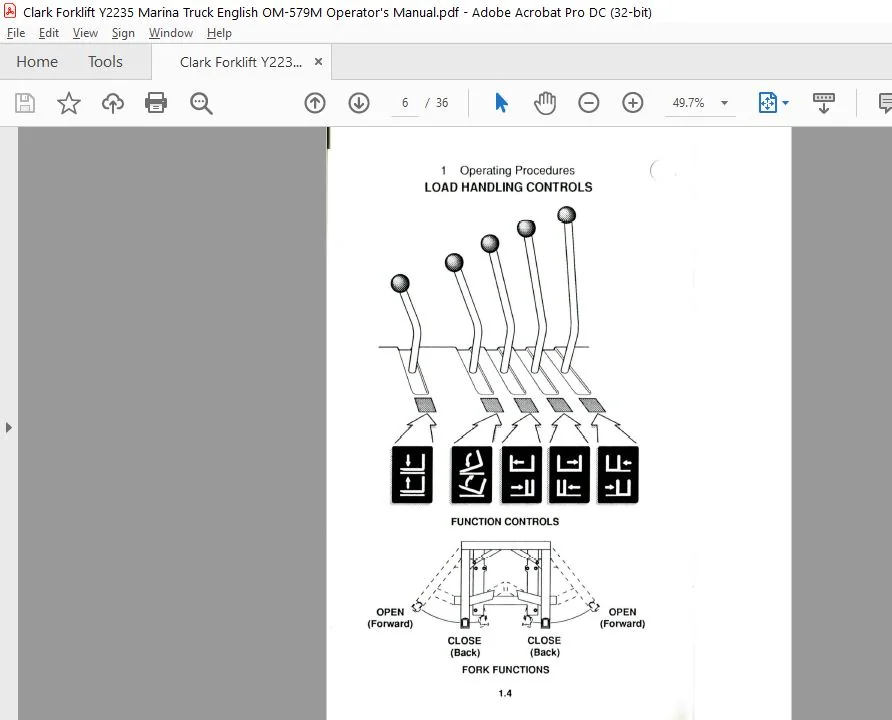

Load Handling Controls …………………………. 1.4
Control Lever Functions ………………………… 1.5
Operation al Checks ……………………………….. 1.5
Operator Dally Checks …………………………… 1.6
Docks …………………………………………….. 1.6 – 1. 7
Picking Up Boat ……………………………. 1.8 – 1.11
Right Angle Turning …………………………….. 1.12
Inserting Boat In Rack ………………………….. 1.13
Boat Launching …………………………………… 1.14
Boat Hull to Fork Flt-up ………………………… 1.15
Litt Capacities and Restrictions ……………. 1.15
Emergency Lowering of Upright …………… 1.16

Please Note:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected]. We still have 50,000 manuals unlisted
