CLASS CONSPEED 8-75 FC F 8-70 FC F 6-80 FC F 6-75 FC F C 6-70 FC C LEXION MEDION Conversion Instructions Manual DE_EN_FR

Description

CLASS CONSPEED 8-75 FC F 8-70 FC F 6-80 FC F 6-75 FC F C 6-70 FC C LEXION MEDION Conversion Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS CONSPEED 8-75 FC F 8-70 FC F 6-80 FC F 6-75 FC F C 6-70 FC C LEXION MEDION Conversion Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION :

This manual describes the safe and time-saving procedure for conversion with the snapping roller conversion
kit, part no. 0496 129.1.
Please read this manual thoroughly before starting work! Pay particular attention to the section »General instructions«.
The following machines can be converted:
CLAAS maize headers:
fitted to the LEXION
CONSPEED 8-75 FC / F
CONSPEED 8-70 FC / F
CONSPEED 6-80 FC / F
CONSPEED 6-75 FC / F / C
CONSPEED 6-70 FC / C
fitted to the MEDION
CONSPEED 6-80 FC
CONSPEED 6-75 FC / C
CONSPEED 6-70 FC / C

• The parts supplied are listed on page 4.2. Before commencing work, make sure that the conversion kit is complete.
• Consider the “Packing list” listing as a supplement to the spare parts list. Dispose of the old parts that are not used for reassembly in an environmentally-friendly manner.

The instructions set forth in this manual must be read carefully and followed by all persons concerned with the operation, maintenance, repair or inspection of this machine/front attachment in order to prevent accidents. Read and understand especially the »General instructions« section and the chapter on »Safety« in your operator’s manual.

• Observe the pertinent accident prevention regulations of your country. Clean the machine before starting work. Welding and grinding work on the machine may cause fire if accumulated vegetation, grease and dirt is not removed.
• Before starting work make sure that all necessary tools and devices are at hand. Make a comparison between the present type of machine/ implement, the list in section “Packing list” and the delivered kit.

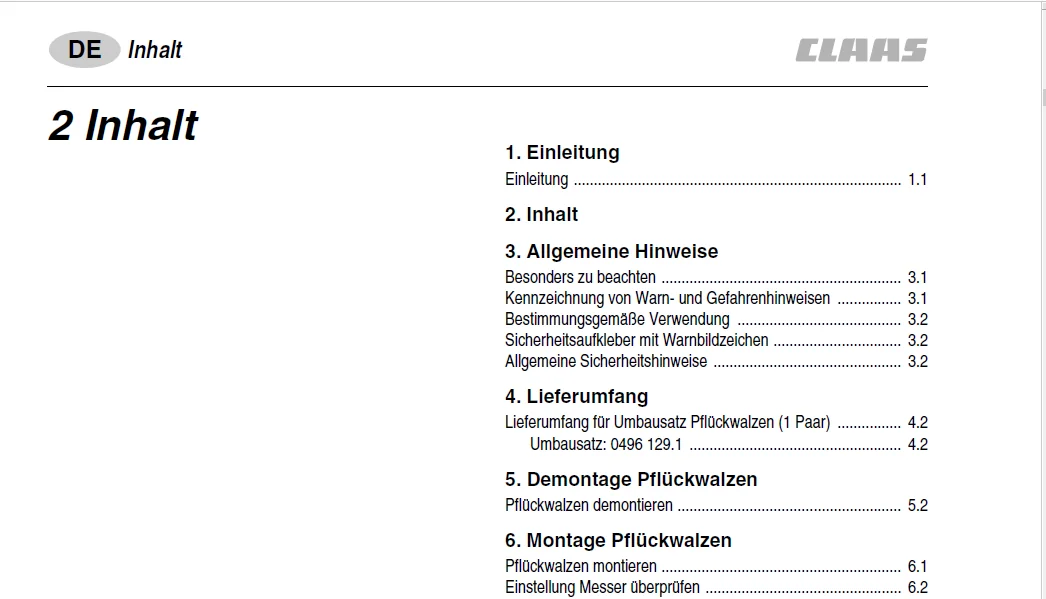

TABLE OF CONTENTS:

CLASS CONSPEED 8-75 FC F 8-70 FC F 6-80 FC F 6-75 FC F C 6-70 FC C LEXION MEDION Conversion Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Packing list
Packing list for snapping roller conversion kit (1 pair) 42
Conversion kit: 0496 1291 42
5 Snapping roller disassembly
Disassembling the snapping rollers 52
6 Snapping roller assembly
Assembling the snapping rollers 61
Checking the alignment of the knives 62
Check and observe the following points before putting into
operation 63

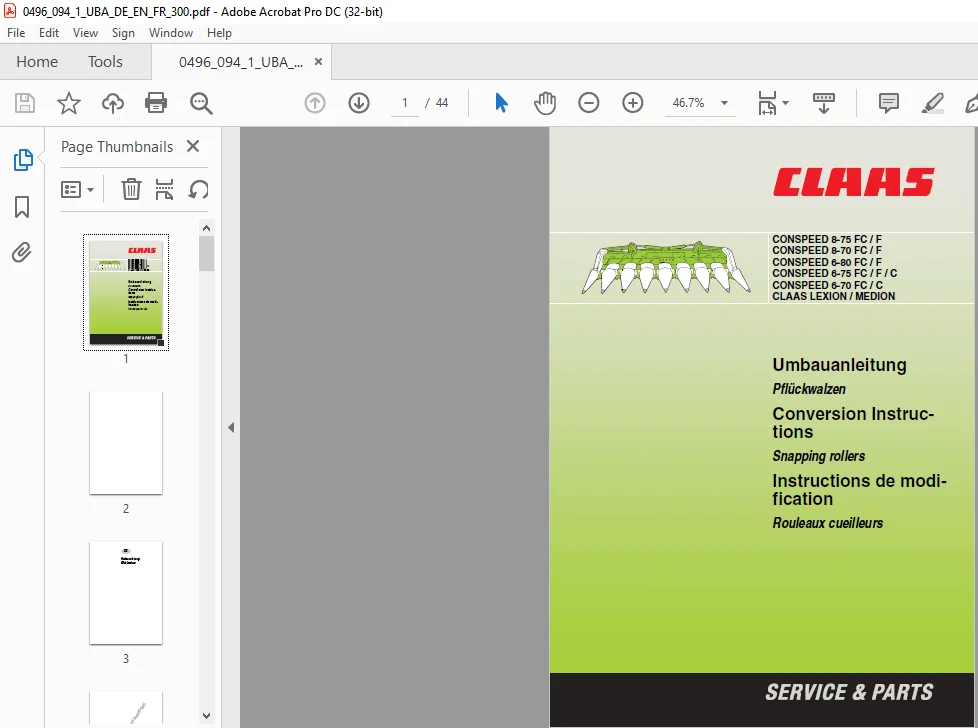

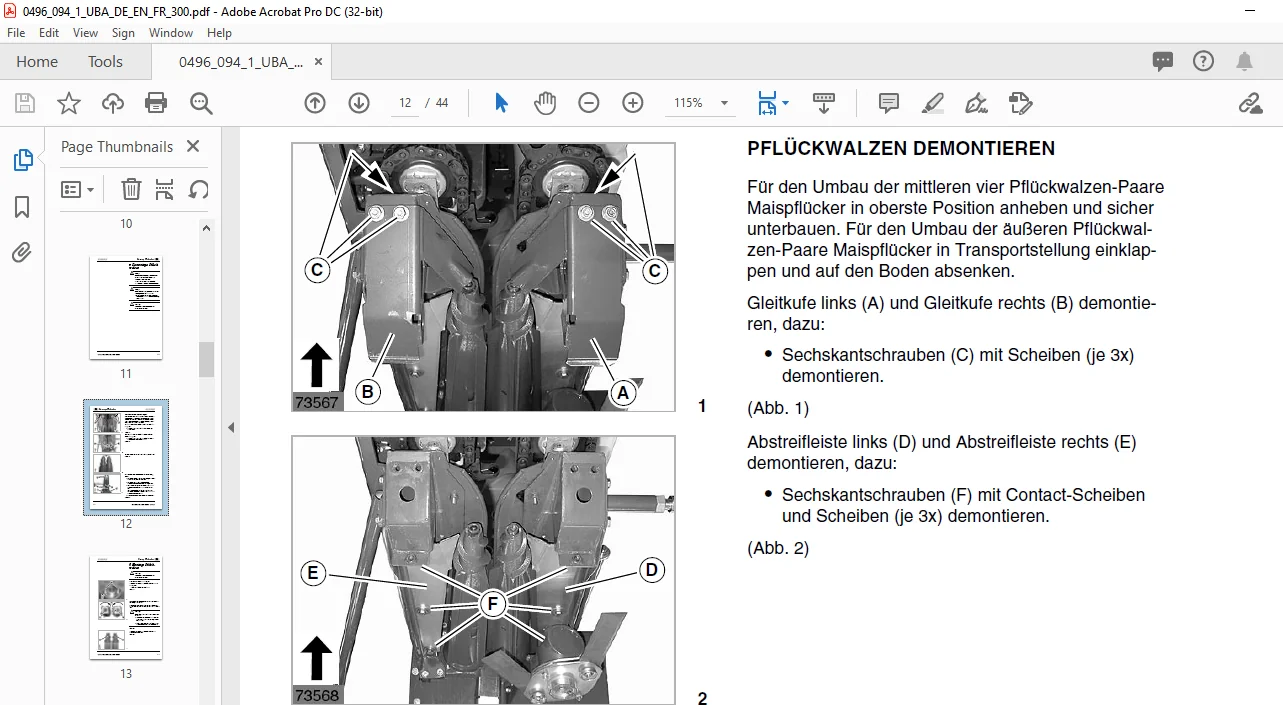

IMAGES PREVIEW OF THE MANUAL:
