CLASS DOMINATOR 108 VX – 88 VX CLAAS Heater Fitting Instructions Manual – PDF DOWNLOAD DE_EN_FR

Description

CLASS DOMINATOR 108 VX – 88 VX CLAAS Heater Fitting Instructions Manual – PDF DOWNLOAD DE_EN_FR

DESCRIPTION:

CLASS DOMINATOR 108 VX – 88 VX CLAAS Heater Fitting Instructions Manual – PDF DOWNLOAD

INTRODUCTION

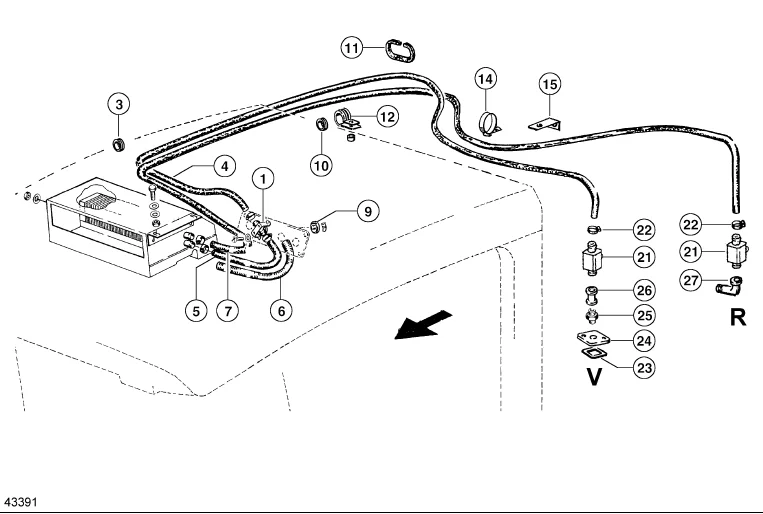

• These fitting instructions show how to fit the heater to the existing air conditioning of the CLAAS combines DOMINATOR 108 VX – 88 VX. The shipping package is shown on page 5. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package».
• The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and contact washers. Text and pictures apply, in general, to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.

TABLE OF CONTENTS:

CLASS DOMINATOR 108 VX – 88 VX CLAAS Heater Fitting Instructions Manual – PDF DOWNLOAD

1 Valve 1
2 Socket head screw M 5 x 12 DIN 84 2
Washer 53 2
3 Cable ring A 24 x 30 x 35 2
4 Hose line 15 x 35 x 4300 long 1
5 Hose line 15 x 35 x 4300 long 1
6 Convoluted tube NW 26 2
7 Hose line 15 x 35 x 500 long 1
8 Hose clip S 16-27 4
9 Control knob 1
Inserter 1
10 Cable ring A 24 x 30 x 35 2
11 Edge protection strip 03 m 1
12 Pipe clamp Rsgu 12 x 23/15 1
Spacer ring 10 x 20 x 10 1
13 Hexagon bolt M 6 x 16 – 88 1
Contact washer A 6 1
Hexagon nut M 6 1
14 Cable binder 35 x 142 3
15 Bracket 4 x 20 x 63 1
16 Hexagon bolt M 6 x 16 – 88 1
Contact washer B 6 1
Hexagon nut M 6 1
17 Pipe clamp Rsgu 12 x 23/15 1
Spacer ring 10 x 20 x 10 1
18 Hexagon bolt M 6 x 16 – 88 1
Contact washer A 6 1
Hexagon bolt M 6 1
19 Threaded socket 24 x 935 1
20 Seals A 20 x 24 DIN 7603 2
21 Ball cock 2
22 Hose clip AI 16-25 2
23 Seal 1
24 Flange 1
25 Union Z3/8 1
26 Fitting 3/8 1
27 Bend 3/8 1
28 Reducing nipple 1/2 x 3/8 1
29 Elbow 3/8 1
30 Sealing tape 125 x 008 x 1300 long

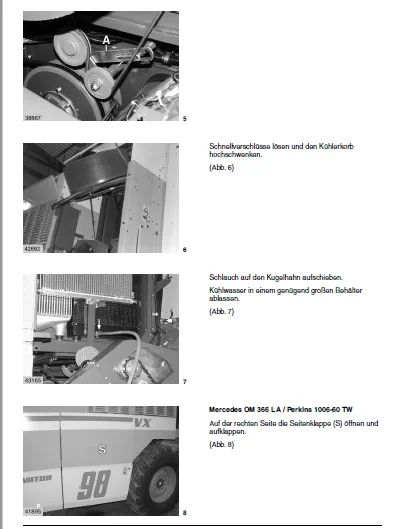

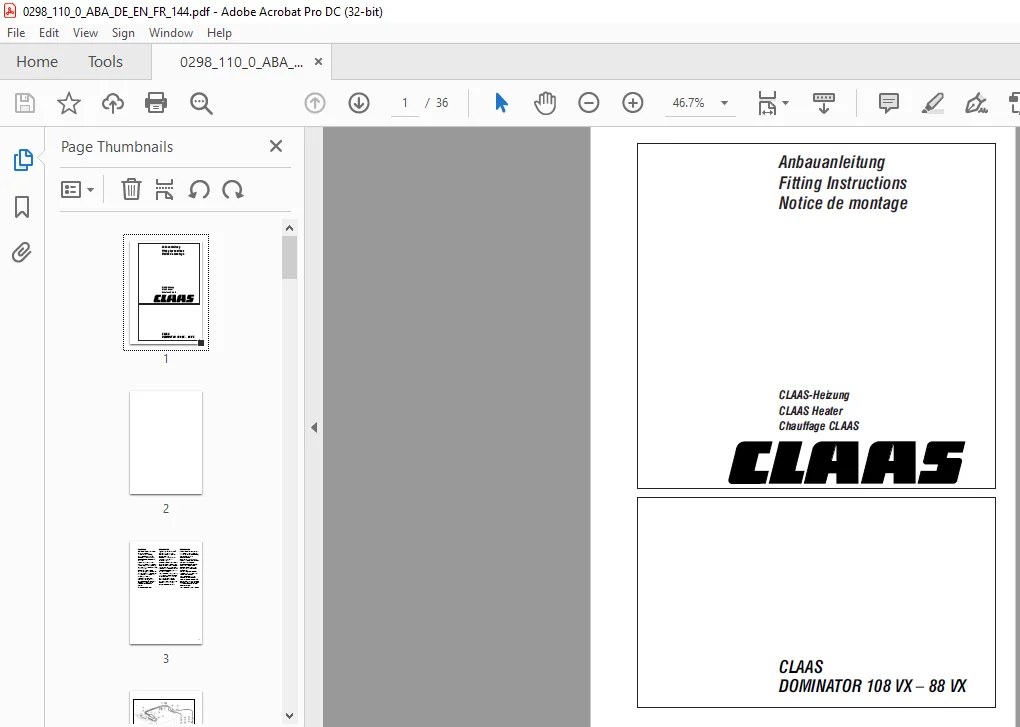

IMAGES PREVIEW OF THE MANUAL:

CLASS DOMINATOR 108 VX – 88 VX CLAAS HEATER FITTING INSTRUCTIONS MANUAL – PDF DOWNLOAD DE_EN_FR:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.M
