Class DOMINATOR 130 Technical Systems & Electric Service Manual – PDF DOWNLOAD

Description

Class DOMINATOR 130 Technical Systems & Electric Service Manual – PDF DOWNLOAD

DESCRIPTION:

Class DOMINATOR 130 Technical Systems & Electric Service Manual – PDF DOWNLOAD

Description of function:

Operational readiness of diesel injection After switching on the ignition, the electronic engine control module A15 receives a plus signal at pin 70. After the signal is received, the electronic engine control module A15 performs a self-test of the engine electronics. If this self-test is successful, the electronic engine control module A15 actuates relay K43 – the diesel injection is ready for operation.

Cold start

When starting the diesel engine, the cold start device (R15) is actuated automatically by the electronic engine control module A15. This actuation depends on external parameters (e.g. outside temperature). The associated sensors are included in the engine wiring loom (see Caterpillar) Operation of the cold start device is indicated by indicator light H22 (see diagram 3).

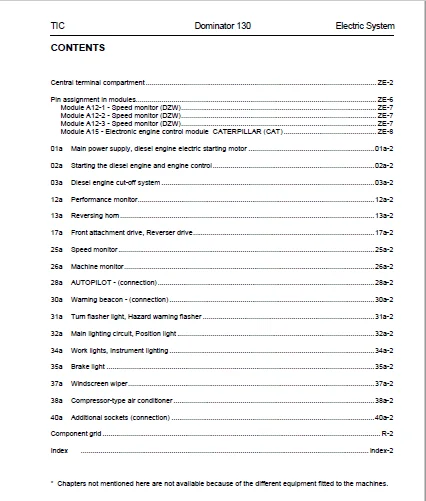

TABLE OF CONTENTS:

Class DOMINATOR 130 Technical Systems & Electric Service Manual – PDF DOWNLOAD

Technical Systems Electric System DOMINATOR 130 1
Layout of electric circuit diagrams 3
Contents 5
Central terminal compartment 7
Pin assignment in modules11
Module A12-1 – Speed monitor (DZW)13
Module A12-2 – Speed monitor (DZW)13
Module A12-3 – Speed monitor (DZW)13
Module A15 – Electronic engine control module CATERPILLAR (CAT)14
Circuit diagrams 01a – 40a15
01a Main power supply, diesel engine electric starting motor15
02a Starting the diesel engine and engine control19
03a Diesel engine cut-off system25
12a Performance monitor29
13a Reversing horn33
17a Front attachment drive, Reverser drive37
25a Speed monitor41
26a Machine monitor45
28a AUTOPILOT – (connection)49
30a Warning beacon – (connection)53
31a Turn flasher light, Hazard warning flasher57
32a Main lighting circuit, Position light61
34a Work lights, Instrument lighting65
35a Brake light69
37a Windscreen wiper73
38a Compressor-type air conditioner77
40a Additional sockets (connection)81
Component grid86
Index90
A – F90
G – S91
T – W92
0293 595094

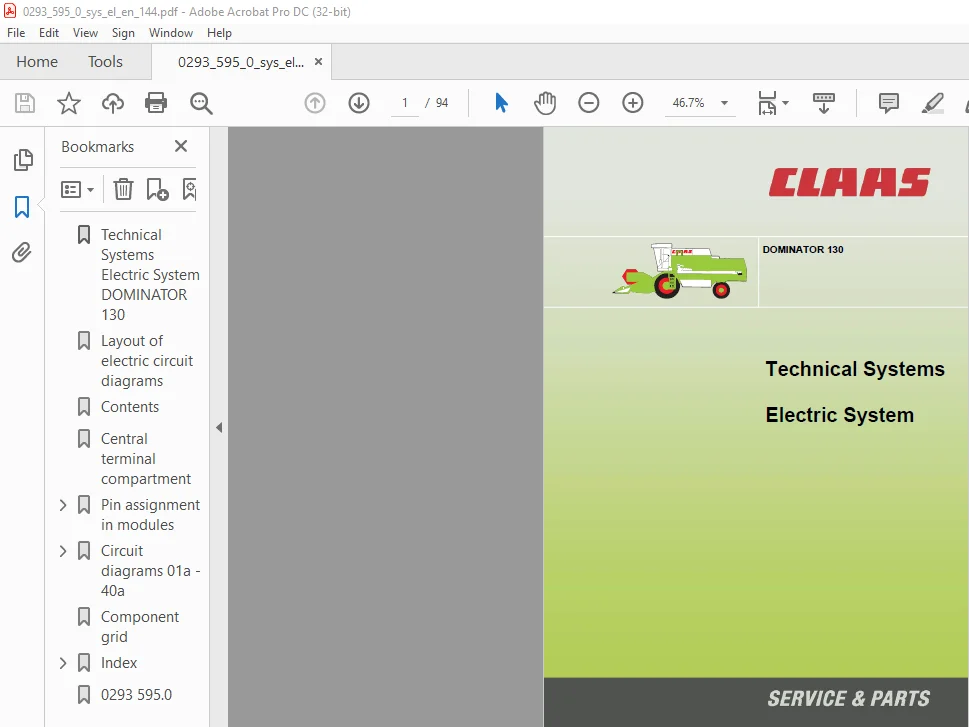

IMAGES PREVIEW OF THE MANUAL:
