CLASS JAGUAR 900 – 830 Autopilot Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

Description

CLASS JAGUAR 900 – 830 Autopilot Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS JAGUAR 900 – 830 Autopilot Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION :

These instructions describe the safe and time-saving work sequence for the machine-side installation of the Autopilot. A mid-set cylinder on the steering axle is essential for supplementary kit part no. 067 107.1. Two cylinders on the existing steering axle is valid for supplementary kit part no. 067 106.0. The following machines can be retrofitted: Forage harvester JAGUAR 900–830 starting from machine no. 49200011.

• The standard mounting time is approx. 4.5 hours for the supplementary kit parts no. 067 107.0 and approx. 5 hours for supplementary kit part no. 067 106.0. See page 4.1 for the shipping package.
• Important notes, such as e. g. the chapter »Safety Rules« or the procedure when carrying out electrical welding from the current operating instructions. When possible refer to assembly steps from the current repair manual.

TABLE OF CONTENTS:

CLASS JAGUAR 900 – 830 Autopilot Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 13
2 Contents
Contents 21
3 General information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit no 067 1061 for steering axle
with two cylinders and 067 1071 for steering axle
with mid-set cylinder 41
5 Installation
Installing the Autopilot 51
Preparing the installation 51
Installing module (1), toggle switch (2) and
nominal value sender (3) 51
Installing overrider switch (1) into the rigid steering column 53
Installing overrider switch (1) into the adjustable
steering column 56
Installing the control unit with accessories 57
Creating vacuum in the hydraulic oil tank 57
Installing the Autopilot valve (2) 58
Installing the hydraulic pressure accumulator (1) and
pressure sensor (2) 59
Installing the rear wheel position indicator for
steering axle with mid-set cylinder 511
Installing the rear wheel position indicator wiring
loom for steering axle with mid-set cylinder 513
Adjusting the rear wheel position indicator
for steering axle with mid-set cylinder 513
Installing the hydraulic cylinder (1) with distance
measuring system for steering axles with two cylinders 514
Dismounting the left hydraulic cylinder 514
Installing the left hydraulic cylinder (1) 515
Adjusting the steering axle stops 515
Jack up the machine 515
Adjusting the steering axle stops 516
Checking for wheel play when oscillating 516
Installing the wiring loom (1) of rear wheel
position indicator for adjustable axle with two cylinders 517
Preparing and performing the test run 518

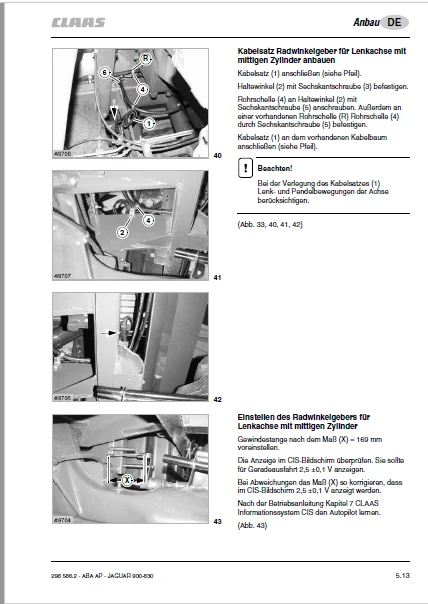

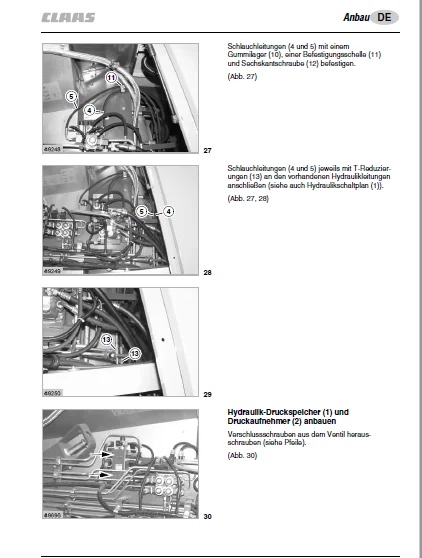

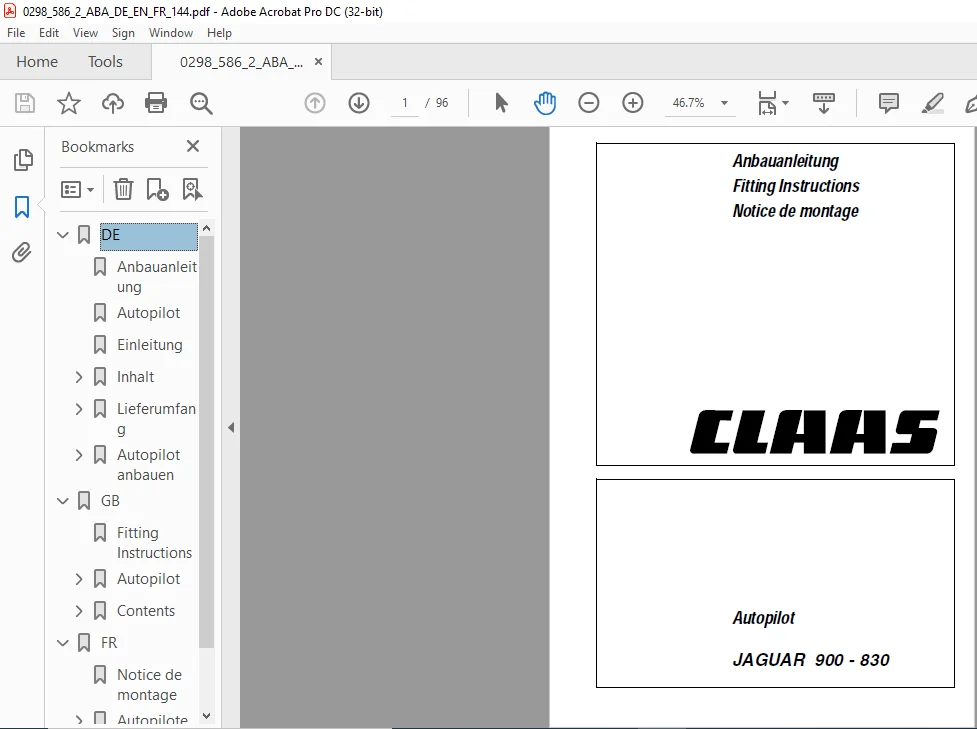

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
