CLASS JAGUAR 900-830 Compressed air brake system Fitting Instructions Manual DE_EN_FR

Description

CLASS JAGUAR 900-830 Compressed air brake system Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS JAGUAR 900-830 Compressed air brake system Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

General information :
IMPORTANT:

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the „Safety Rules“ in the operating instructions should be read with the utmost care and adhered to.

• In addition, please also observe the accident prevention regulations that apply for your own country. The specification of the components, e.g. bolts, is shown on the shipping package.
• The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have part numbers. These parts are listed under the part number for the screws with which they are fitted. Additional part specifications are the parts no., description, dimensions, DIN and the quantity.

TABLE OF CONTENTS:

CLASS JAGUAR 900-830 Compressed air brake system Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General information
Important 31
Identification of warnings and danger signs 32
Intended use 32
4 Shipping package
Shipping package 41
Parts list for hydraulic plan 45
5 Installation
Compressed air brake system 51
Installing the compressed air brake system 51
Trailer control valve 519
Bleeding the brake system 519
Performing a test run 520
Testing instruction for compressed air brake system 522

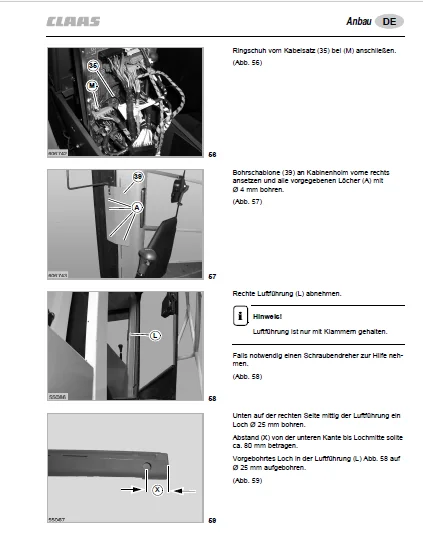

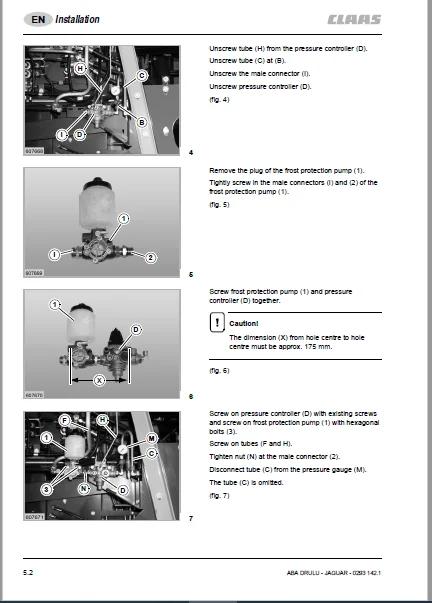

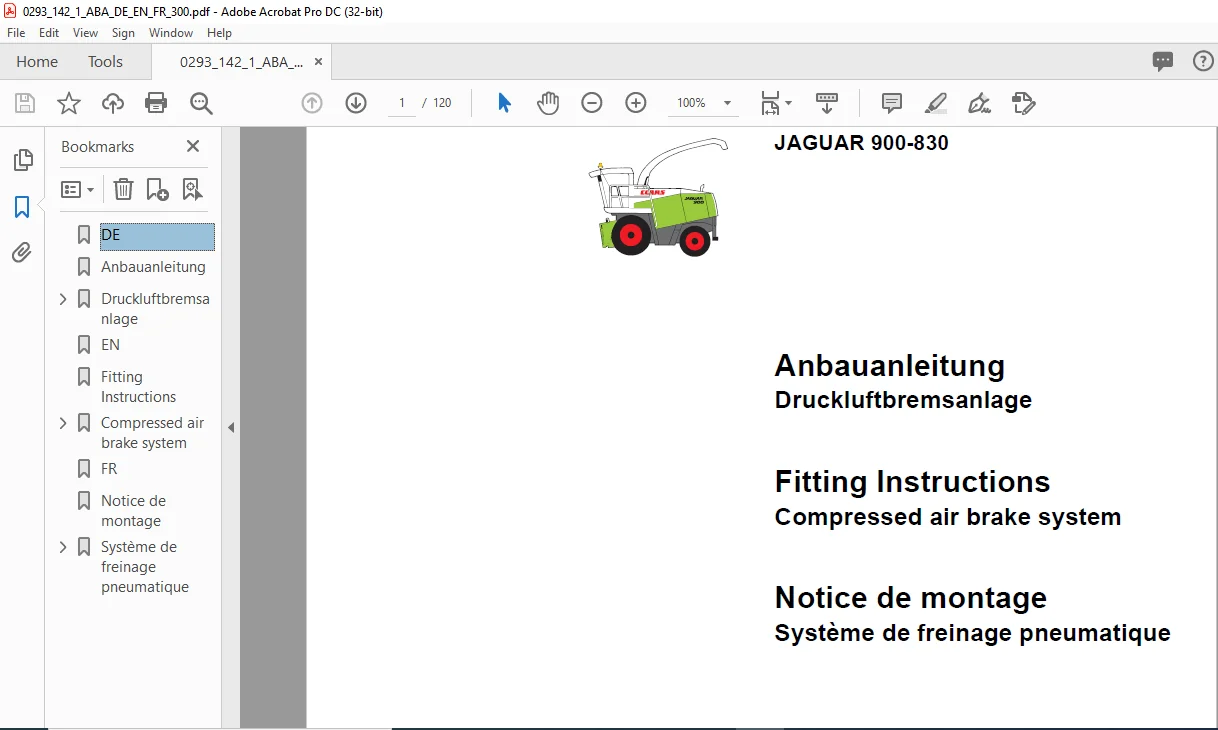

IMAGES PREVIEW OF THE MANUAL:
