CLASS LEXION 460 – 410 Cab Heate Crop Spreader Fitting Instructions Manual DE_EN_FR

Description

CLASS LEXION 460 – 410 Cab Heate Crop Spreader Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS LEXION 460 – 410 Cab Heate Crop Spreader Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION :

• These instructions describe the safe and timesaving work sequence for retrofitting the cab heater.
• Retrofitting of the LEXION 460-410 combine harvesters, with the supplementary kit part no. 546 604.0, is possible from the following machine number ranges: 54300011, 54400011, 55300800, 55400800 and 55700800.

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to.

• In addition, please also observe the accident prevention regulations that apply for your own country. Before commencing with the job, ensure that all the tools and service aids are available.
• Compare existing machine type/front attachment type with the list in the chapter »Shipping Package« and the parts kit supplied.

TABLE OF CONTENTS:

CLASS LEXION 460 – 410 Cab Heate Crop Spreader Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit 546 6040 41
5 Installation
Fitting the cab heater 51
Preparing the installation 51
Opening the cab roof 51
Installing the radiator (1) 52
Installing the turn switch (16) 54
Installing rope (18) 54
Adjusting rope (18) 55
Routing hose lines (11) and (12) in the grain tank 56
Draining the coolant 57
Routing hose lines (11) and (12) in the
engine compartment 58
Heater feed line 58
Heater return line 58
Filling up cooling liquid 59
Test run 59

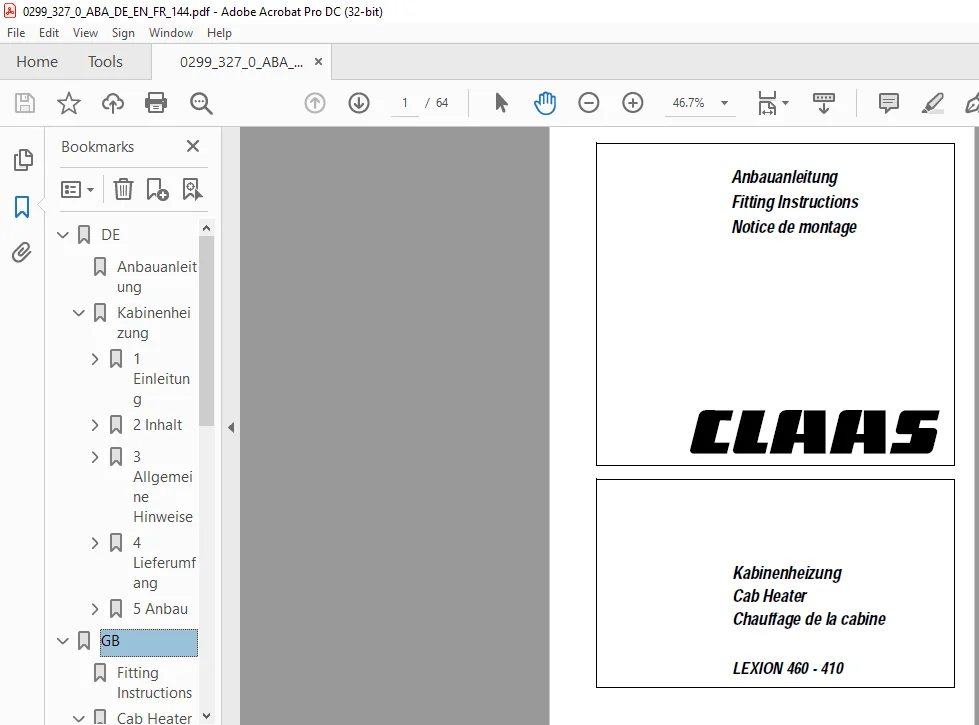

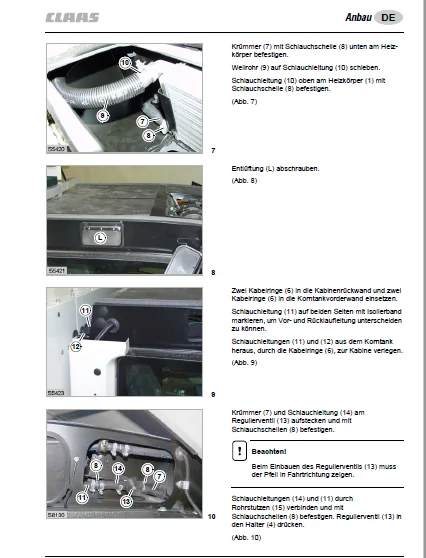

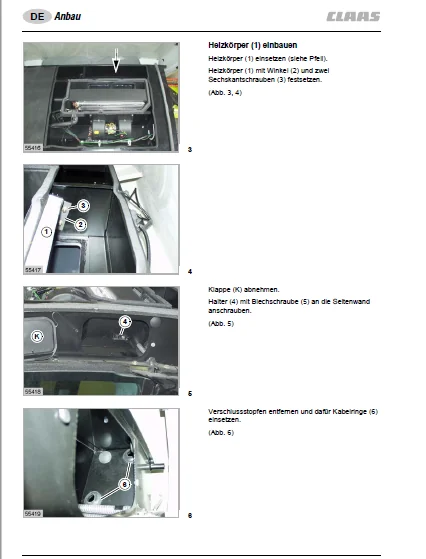

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
