DESCRIPTION:

CLASS LEXION 480 – 410 Autopilot Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION :

These instructions describe the safe and timesaving work sequence for retrofitting the autopilot.
Retrofitting of the LEXION 480 – 410 combine harvesters, with the supplementary kit part
no. 014 612.3, is possible from the following machine
number ranges: starting from 54300011, starting from
54400011, starting from 54500011, starting from
54600011, starting from 54700011, starting from
54800011, starting from 55300800, starting from
55400800, starting from 55700800, starting from
56500800, starting from 56600800, starting from
56700800 and starting from 56800800.

The standard mounting time is approx. 5.5 man hours. See page 4.1 for the shipping package. Observe the „Safety Rules“ in the applicable operator’s manual.

• In addition, please also observe the accident prevention regulations that apply for your own country. Before commencing with the job, ensure that all the tools and service aids are available.
• Compare existing machine type/front attachment type with the list in the chapter „Shipping Package“ and the parts kit supplied. The specification of the components, e.g. bolts, is shown on the shipping package. The shipping package shows the position number (pos. no.) of the components.
• Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the parts no., description, measurements, DIN and the quantity.

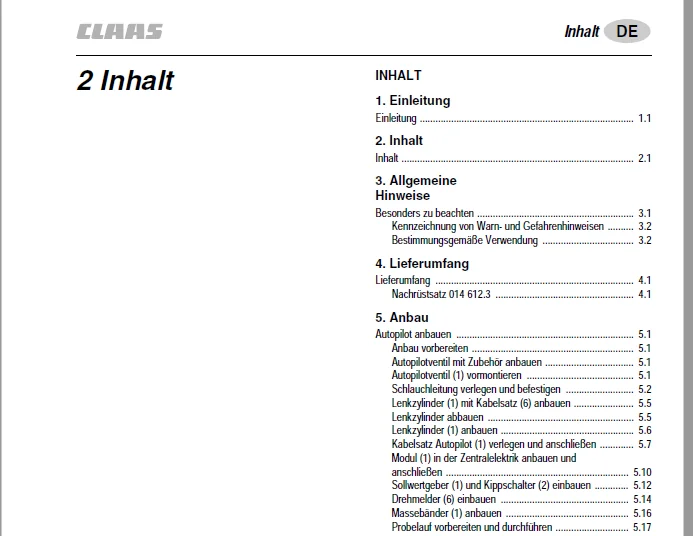

TABLE OF CONTENTS:

CLASS LEXION 480 – 410 Autopilot Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Inhalt 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit 014 6123 41
5 Installation
Installing the Autopilot 51
Preparing the installation 51
Installing the Autopilot valve with accessories 51
Pre-assembling the Autopilot valve (1) 51
Routing and fastening the hose lines 52
Installing the steering cylinder (1) with the wiring loom (2) 55
Dismounting the steering cylinder (1) 55
Installing the steering cylinder (1) 56
Routing and connecting the Autopilot wiring loom (1) 57
Installing and connecting module (1) in
central terminal compartment: 510
Fitting the nominal value sender (1) and
the toggle switch (2) 512
Installing the overrider switch (6) 514
Installing the earth strips (1) 516
Preparing and performing the test run 517
