CLASS LEXION 480 – 410 Returns meter Fitting Instructions Manual DE_EN_FR

Description

CLASS LEXION 480 – 410 Returns meter Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS LEXION 480 – 410 Returns meter Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION:

• These instructions describe the safe and timesaving work sequence for retrofitting the returns meter. The yield meter and CEBIS system are required for the supplementary kit, parts no. 014 614.0.
• Retrofitting of the LEXION 480-410 combineharvesters is possible from the following machine number ranges: 54300011, 54400011, 54500011, 54600011, 54700011, 54800011

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the «Safety Rules» in the operator’s manual should be read with the utmost care and adhered to.

• In addition, please also observe the accident prevention regulations that apply to your own country. Before commencing with the job, ensure that all the tools and service aids are available. Compare existing machine type/front attachment type with the list in the chapter «Shipping Package » and the parts kit supplied.
• The specification of the components, e.g. bolts, is shown on the shipping package. The shipping package shows the position number (pos. no.) of the components.
• Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the part no., description, measurements, DIN and the quantity.

TABLE OF CONTENTS:

CLASS LEXION 480 – 410 Returns meter Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General information
IMPORTANT 31
Identification of warnings and danger signs 32
Correct use of combine 32
4 Shipping Package
Shipping Package 41

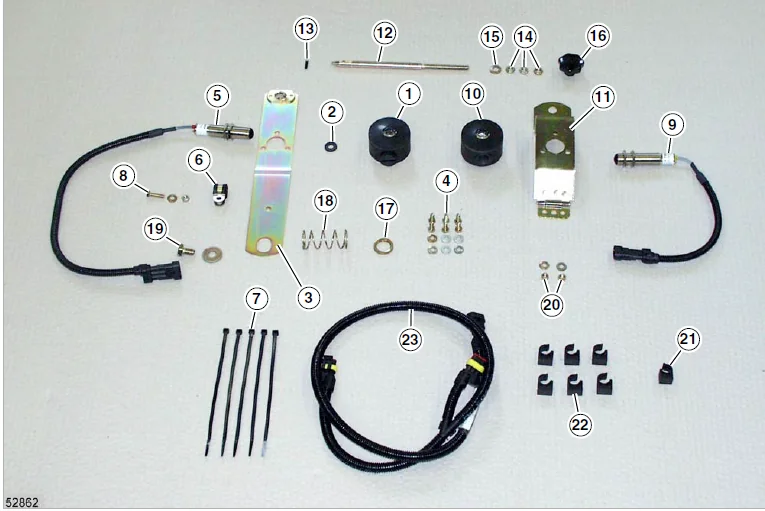

Supplementary kit 014 6140 41
5 Installation
Installing the returns meter 51
Preparing the installation 51
Pre-assembling the sender of the light emitting barrier 51
Pre-assembling the receiver of the light emitting barrier 52
Installing the sender and the receiver of the light emitting
barrier 53

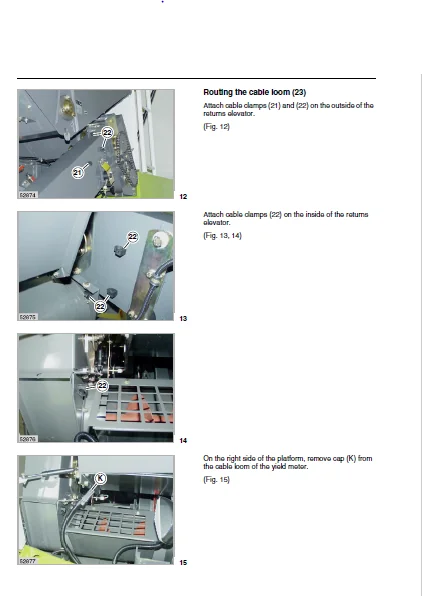

Routing the cable loom (23) 54
Preparing and performing a test run 56

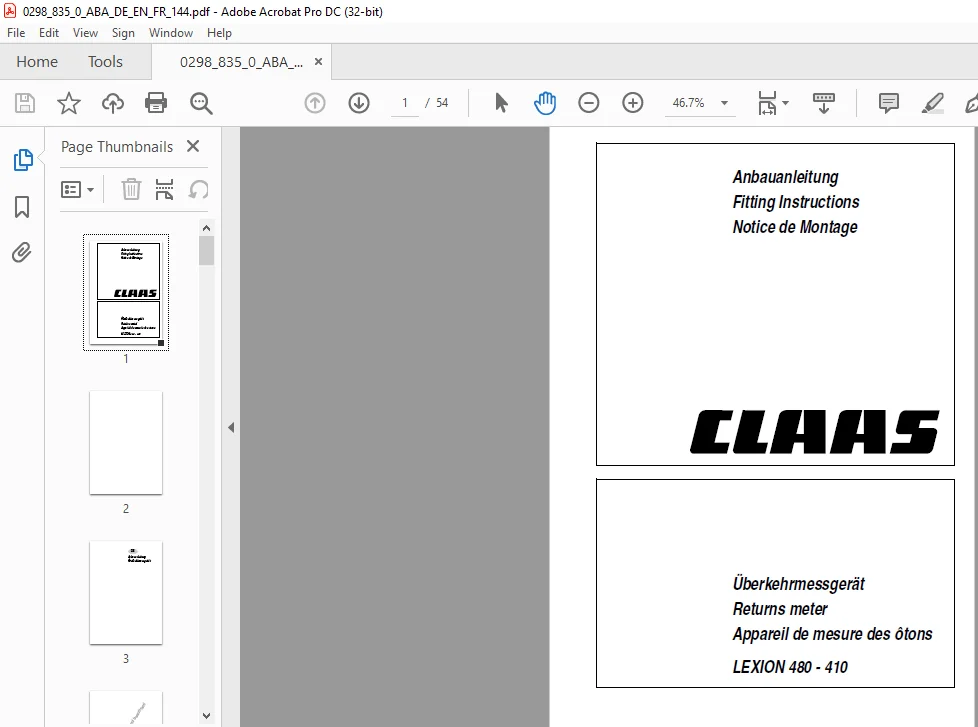

IMAGES PREVIEW OF THE MANUAL:
