CLASS LEXION 480 LEXION 460 – 415 Cutterbar Variable Speed Drive Fitting Instructions Manual DE_EN_FR

Description

CLASS LEXION 480 LEXION 460 – 415 Cutterbar Variable Speed Drive Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS LEXION 480 LEXION 460 – 415 Cutterbar Variable Speed Drive Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION :

This manual is intended to show you how to fit the cutterbar variable speed drive to CLAAS LEXION 480 and LEXION 460 – 415 combineharvesters.

• The shipping package is shown on page 5. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package».
• The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers.
• Text and pictures apply in general to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.

TABLE OF CONTENTS:

CLASS LEXION 480 LEXION 460 – 415 Cutterbar Variable Speed Drive Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Impeller assembled
LEXION 480 up to serial no 48000487
LEXION 460 – 415 1
2 Bearing assembly D 60
LEXION 480 up to serial no 48000487
LEXION 460 – 415 1
3 Tapered ring D 71 x 18
LEXION 480 up to serial no 48000487
LEXION 460 – 415 1
4 Parallel key A18 x 11 x 40
LEXION 480 up to serial no 48000487
LEXION 460 – 415 1
5 V-belt pulley D 313 (2 x 17)
LEXION 480 up to serial no 48000487
LEXION 460 – 415 1
6 Spacer ring 501 x 761 x 10 1
7 Drive package, assembled 1
8 Thrust washer 1
9 Detent edged ring VsKz 16 1
10 Hex socket head cap screw M 16 x 70 DIN 912-88 1
11 Piston holder1
12 Variable speed drive cylinder, complete 1
13 Countersunk head bolt M12 x 165 3
14 Grease tube1
15 Grease nipple DIN 71412 AS 6 x 1 1
16 Variable speed gear bracket1
17 Hexagon head bolt M 12 x 45 DIN 933-88 2
18 Bearing assembly 1
19 Hexagon head bolt M 16 x 45 DIN 933-88 4
Contact washer A 16 4
20 Male connector DIN 3900 L 14 m1
21 Grease nipple DIN 71412 Am 8 x 1 1
22 Lubrication line 1
23 Friction washer 1
24 Parallel key DIN 6885 A 12 x 8 x 98 1
25 Output package
26 Thrust assembled1
27 Hexagon head bolt M 16 x 50 DIN 933-88 1
Contact washer A 16 1
28 Clamping washer D 55 x 101
29 Guide roller, pre-assembled1
30 Washer
31 Hexagon head bolt M 16 x 100 DIN 931-881
32 V-belt 2
33 Wide section V-belt 1
34 Valve insert 1
35 Seal ring 2
36 Solenoid 3 mm 12 V 60% 1
37 Valve insert 1
38 Solenoid 3 mm 12 V 60% Spring1
39 Restrictor assembled 1
40 Hydraulic hose 1SN6 N 45N 1300 1
41 Cable strap 7,6 x 282 3

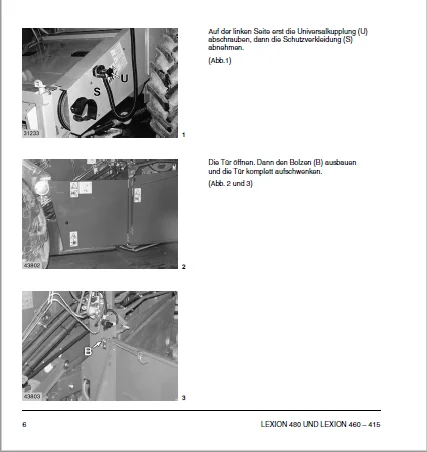

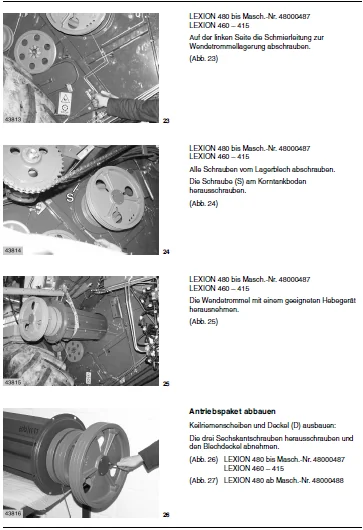

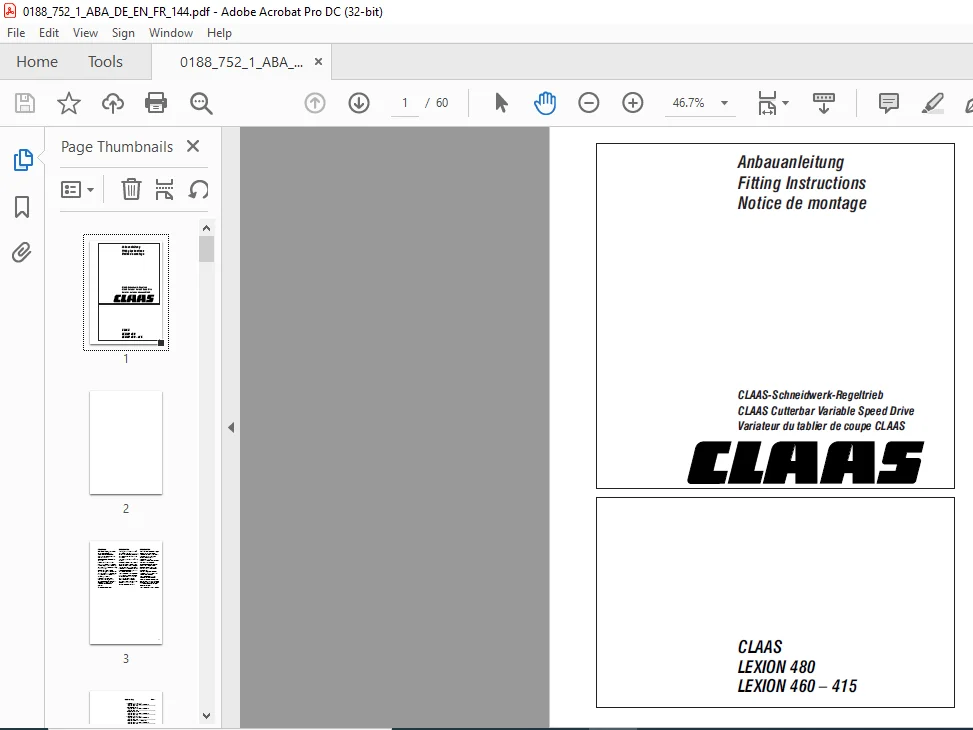

IMAGES PREVIEW OF THE MANUAL:
