CLASS LEXION 480 Rice straw chopper Fitting Instructions Manual DE_EN_FR

Description

CLASS LEXION 480 Rice straw chopper Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS LEXION 480 Rice straw chopper Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to.

• In addition, please also observe the accident prevention regulations that apply for your own country. Compare existing machine type/front attachment type with the list in the chapter »Shipping Package« and the parts kit supplied. The specification of the components, e.g. bolts, is shown on the shipping package.
• The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the part no., description, measurements, DIN and the quantity.

TABLE OF CONTENTS:

CLASS LEXION 480 Rice straw chopper Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
5 Installation
Installing the rice straw chopper 51
Installing the first stage of the drive 51
Installing the second stage of the drive 56
Installing the rice straw chopper (39) 59
Installing the straw chute deflector 511
Fastening the sensor plate (56) 513
Fitting the lateral cover and putting on the belts (38) 513
Fitting the limit switch (79) for the sensor plate (56) 515
Installing the hydraulics 517
Screwing on the safety frame 518
Preparing and performing the test run 518

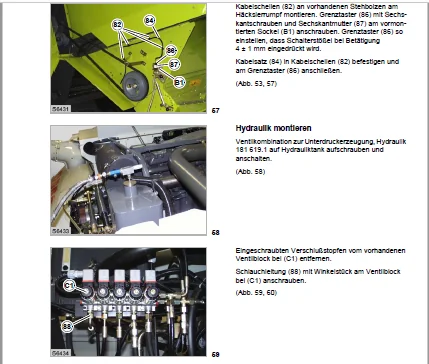

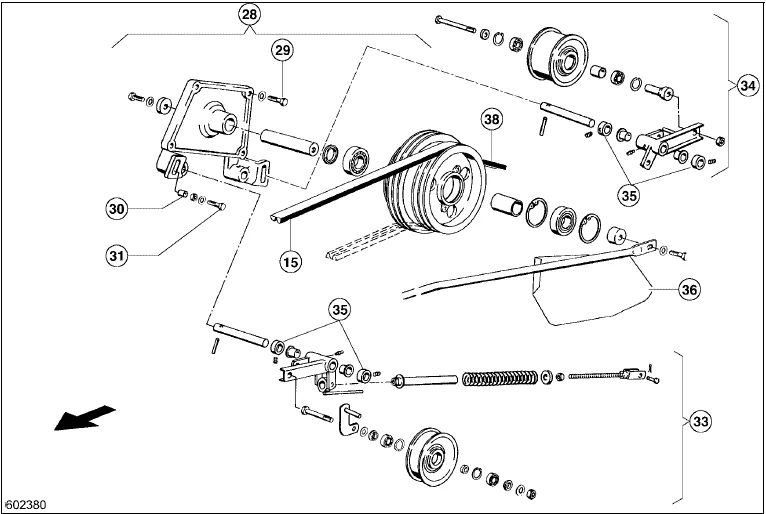

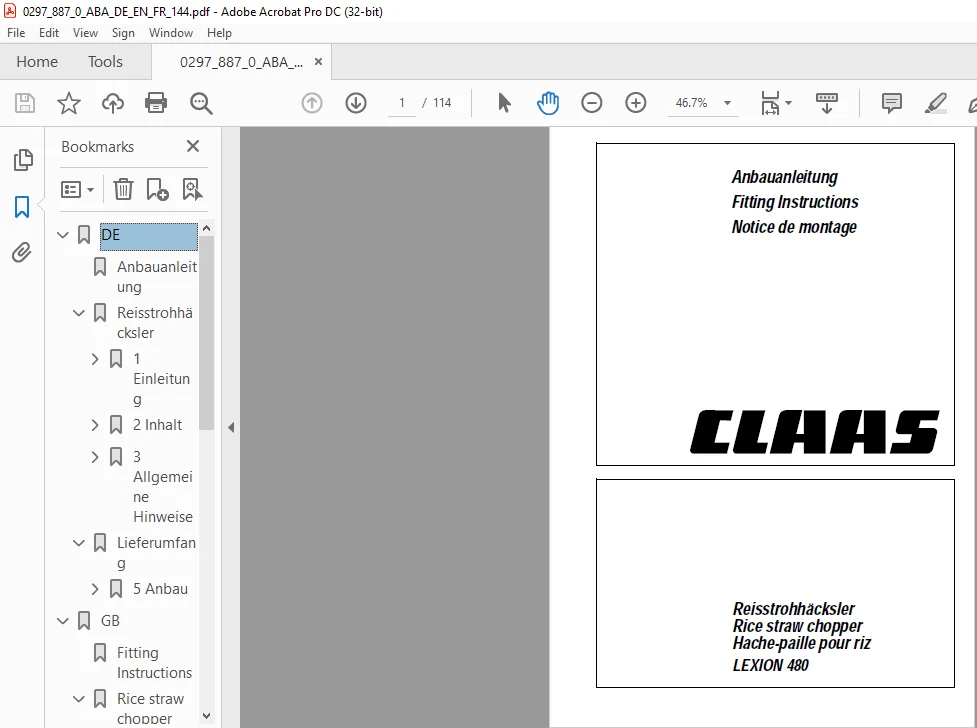

IMAGES PREVIEW OF THE MANUAL:
