CLASS MEDION 340 – 310 Cab Heater Fitting Instructions Manual DE_EN_FR

Description

CLASS MEDION 340 – 310 Cab Heater Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS MEDION 340 – 310 Cab Heater Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to.

• In addition, please also observe the accident prevention regulations that apply for your own country. Before commencing with the job, ensure that all the tools and service aids are available. Compare existing machine type/front attachment type with the list in the chapter »Shipping Package« and the parts kit supplied.
• The specification of the components, e.g. bolts, is shown on the shipping package. The shipping package shows the position number (pos. no.) of the components.
• Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the part no., description, measurements, DIN and the quantity.

TABLE OF CONTENTS:

CLASS MEDION 340 – 310 Cab Heater Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit 759 7021 41
5 Installation
Fitting the cab heater 51
Preparing the installation 51
Opening the cab roof 51
Installing the radiator (1) 52
Installing the turn switch (17) 54
Installing the wire cable (20) 54
Setting the wire cable (20) 55
Drain the coolant 55
Connecting the hoses lines (11) and (12) to the engine 57
Preparing and performing the test run 58
Filling up cooling liquid 59

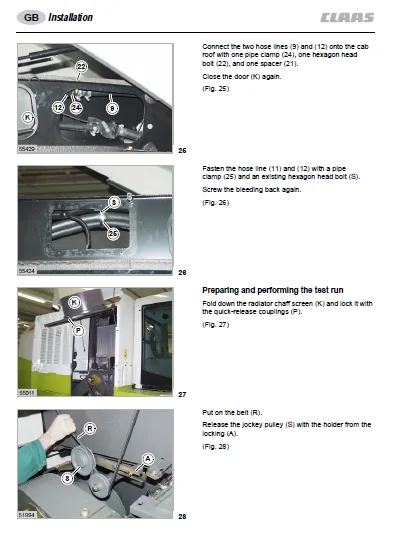

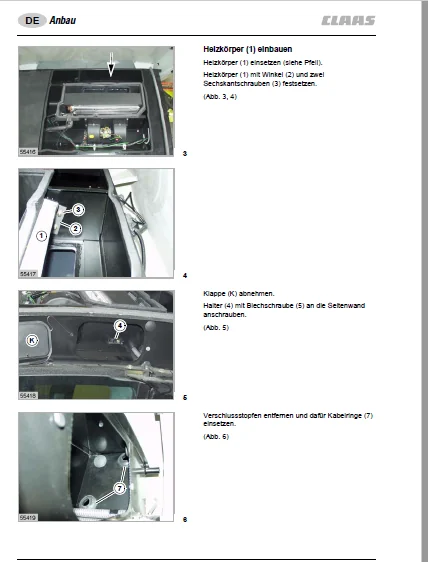

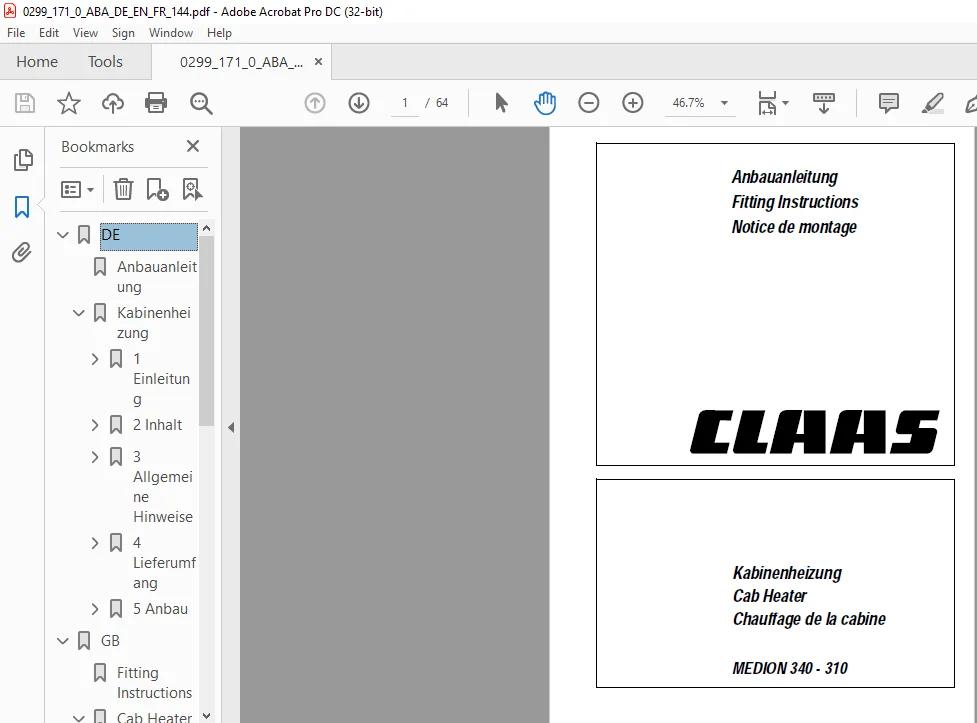

IMAGES PREVIEW OF THE MANUAL:
