CLASS MEDION 340-310 Warning Beacon Fitting Instructions Manual DE_EN_FR

Description

CLASS MEDION 340-310 Warning Beacon Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS MEDION 340-310 Warning Beacon Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION :

• These instructions describe the safe and timesaving work sequence for retrofitting the warning beacons. Retrofitting of the MEDION 340-310 combine harvesters, with the supplementary kit part no. 012 962.1, is possible from the following machine number ranges: 93100011, 93200011 and 93400011.
• The standard mounting time is approx. 2 man hours. See page 4.1 for the shipping package. Observe the »Safety Rules« in the applicable operator’s manual.

General information
IMPORTANT :

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to. In addition, please also observe the accident prevention regulations that apply for your own country.

• Before commencing with the job, ensure that all the tools and service aids are available. Compare existing machine type/front attachment type with the list in the chapter »Shipping Package« and the parts kit supplied. The specification of the components, e.g. bolts, is shown on the shipping package.
• The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the parts no., description, measurements, DIN and the quantity.

TABLE OF CONTENTS:

CLASS MEDION 340-310 Warning Beacon Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit 012 9621 41
5 Installation
Installing the warning beacon 51
Preparing the installation 51
Installing the rotary switch (1) 51

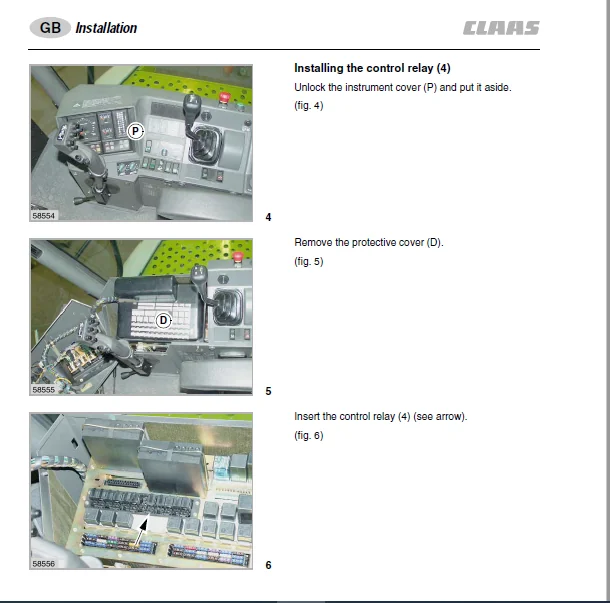

Installing the control relay (4) 52
Installing the warning beacon (8) on the front 53
Installing the warning beacon (10) on the rear 56
Preparing and performing the test run 58

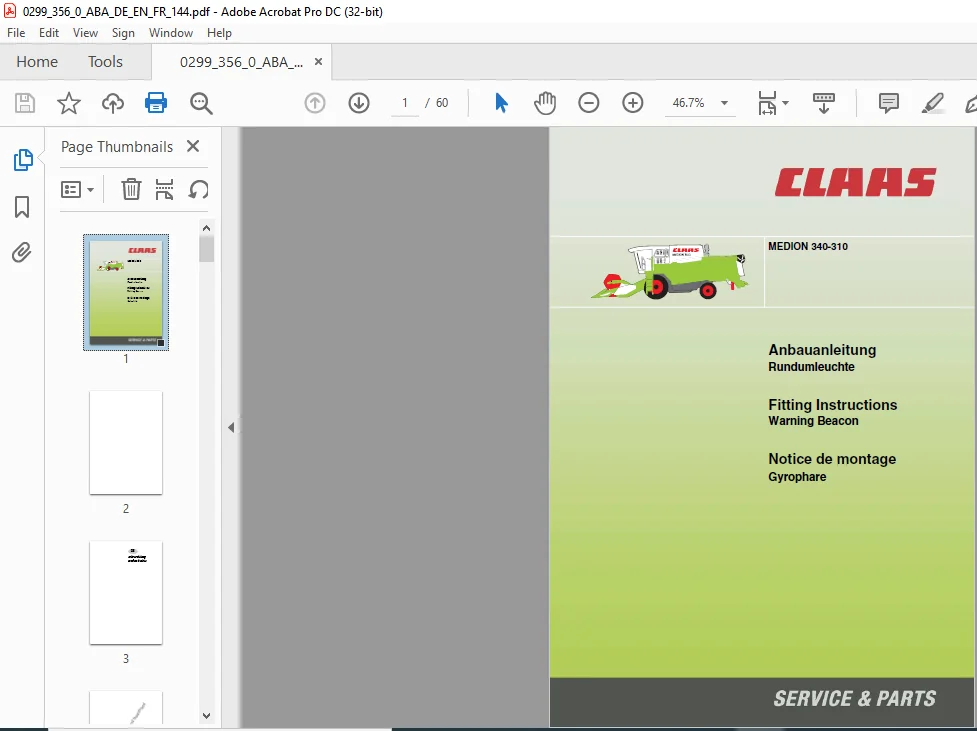

IMAGES PREVIEW OF THE MANUAL:
