CLASS MEDION 340 330 310 3-D-Control Unit for Sieve Pan Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

Description

CLASS MEDION 340 330 310 3-D-Control Unit for Sieve Pan Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS MEDION 340 330 310 3-D-Control Unit for Sieve Pan Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to. In addition, please also observe the accident prevention regulations that apply for your own country.

• Before commencing with the job, ensure that all the tools and service aids are available. Compare existing machine type/front attachment type with the list in the chapter »Shipping Package« and the parts kit supplied. The specification of the components, e.g. bolts, is shown on the shipping package.
• The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the part no., description, measurements, DIN and the quantity.
• In order to help with the assembly, existing components in the instructions are identified with letters, whereas new parts have been identified with a number (position number).
• Texts and pictures apply, in general, to all machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.

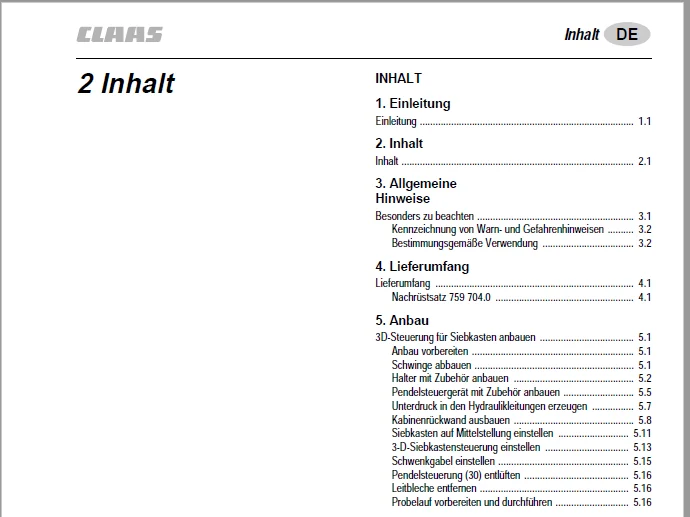

TABLE OF CONTENTS:

CLASS MEDION 340 330 310 3-D-Control Unit for Sieve Pan Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit 759 7040 41
5 Installation
Fitting the 3-D control for the sieve pan 51
Preparing the installation 51
Removing the rocker arm 51
Fitting the holder with accessories 52
Fitting the pendulum control unit with accessories 55
Creating vacuum in the hydraulic lines 57
Removing the cab rear panel 58
Setting the sieve pan to the middle position 511
Setting the 3-D control for the sieve pan 513
Setting the pivot arm 515
Bleeding the pendulum control (30) 516
Removing the guiding plates 516
Preparing and performing the test run 516

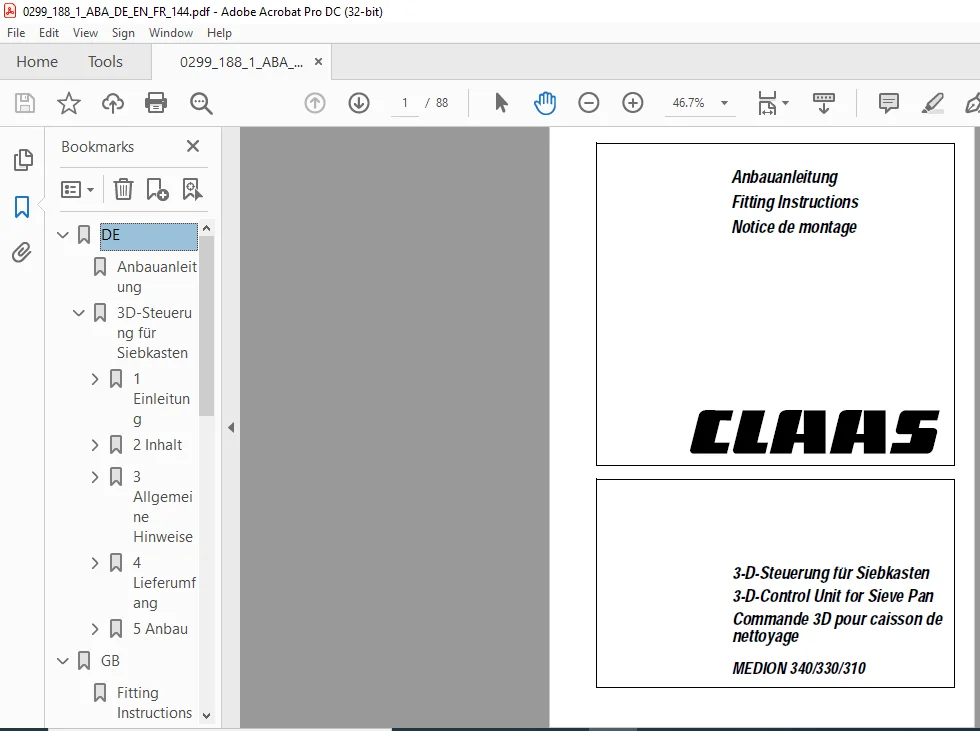

IMAGES PREVIEW OF THE MANUAL:
