CLASS MEDION 340 330 310 Electric deflector adjustment system Fitting Instructions Manual DE_EN_FR

Description

CLASS MEDION 340 330 310 Electric deflector adjustment system Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS MEDION 340 330 310 Electric deflector adjustment system Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to. In addition, please also observe the accident prevention regulations that apply for your own country.

• Before commencing with the job, ensure that all the tools and service aids are available. Compare existing machine type/front attachment type with the list in the chapter »Shipping Package« and the parts kit supplied. The specification of the components, e.g. bolts, is shown on the shipping package.
• The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the part no., description, measurements, DIN and the quantity.
• In order to help with the assembly, existing components in the instructions are identified with letters, whereas new parts have been identified with a number (position number). Texts and pictures apply, in general, to all machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.

TABLE OF CONTENTS:

CLASS MEDION 340 330 310 Electric deflector adjustment system Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit parts no 011 2130 41
5 Installation
Installing the electric deflector adjustment system 51
Preparing the installation 51
Attaching the mechanical components 51
Installing the plug-in-type module (9) 52
Laying the wiring loom (14) to the linear motor (5) 53
Laying the wiring loom (14) to the switch console 56
Attaching and connecting the turn switch (22) 56
Performing a test run! 58

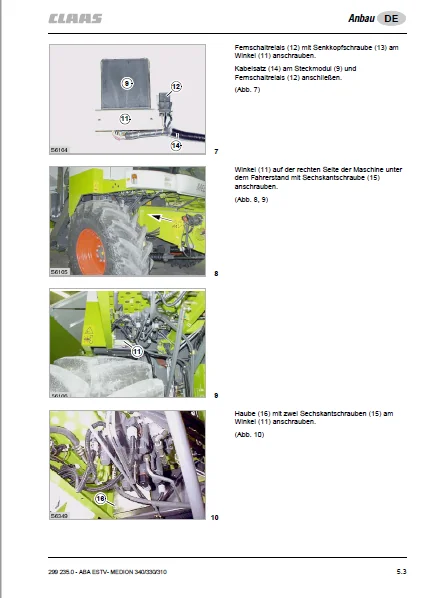

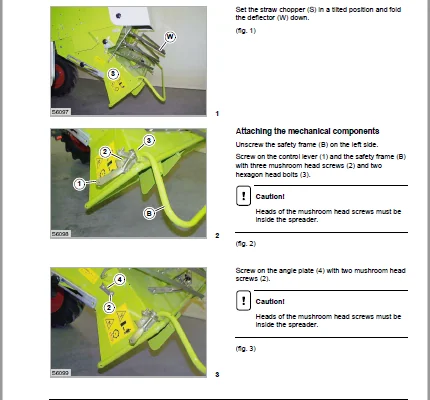

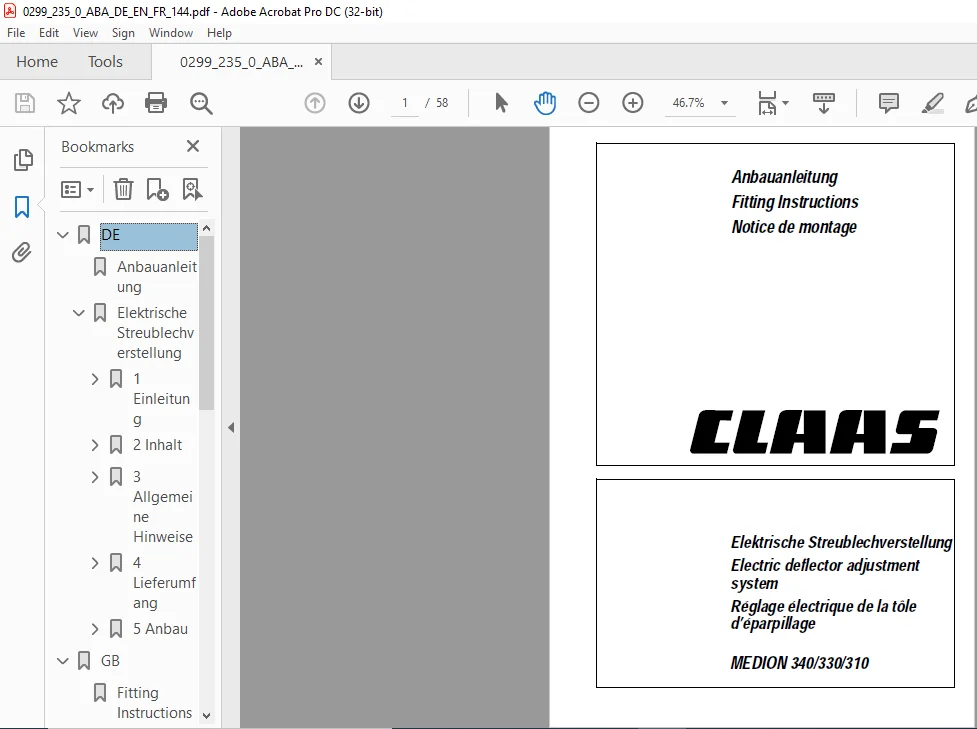

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
