CLASS MEDION 340 330 310 MEGA 208 204 Auto-Contour Fitting Instructions Manual DE_EN_FR

Description

CLASS MEDION 340 330 310 MEGA 208 204 Auto-Contour Fitting Instructions Manual DE_EN_FR

DESCRIPTION:

CLASS MEDION 340 330 310 MEGA 208 204 Auto-Contour Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to. In addition, please also observe the accident prevention regulations that apply for your own country.

• Before commencing with the job, ensure that all the tools and service aids are available. Compare existing machine type/front attachment type with the list in the chapter »Shipping Package« and the parts kit supplied. The specification of the components, e.g. bolts, is shown on the shipping package.
• The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the part no., description, measurements, DIN and the quantity.

TABLE OF CONTENTS:

CLASS MEDION 340 330 310 MEGA 208 204 Auto-Contour Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit 058 0642 for MEDION 340
and MEGA 208 41
Supplementary kit 058 0822 for MEDION 330/310
and MEGA 204 41
5 Installation
Installing Auto-Contour 51
Preparing the installation 51
Fitting the hydraulic cylinder 51
Fitting the hydraulic lines under the feeder housing 56
Fitting the lock-up valve unit 56
Fitting the side hydraulic lines 57
Fitting the solenoid valve 59
Changing the module 512
Fitting the nominal value sender and the toggle switch 513
Putting on and adjusting the cutterbar drive belt 516
Bleeding the CLAAS Auto-Contour hydraulic cylinder 517
Checking hydraulic oil filling level 519
Preparing and performing the test run 520

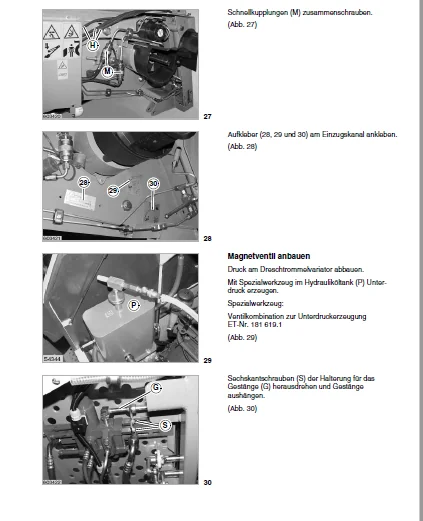

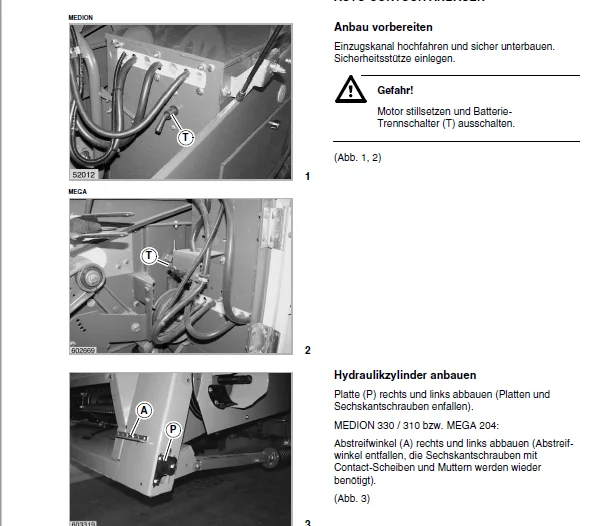

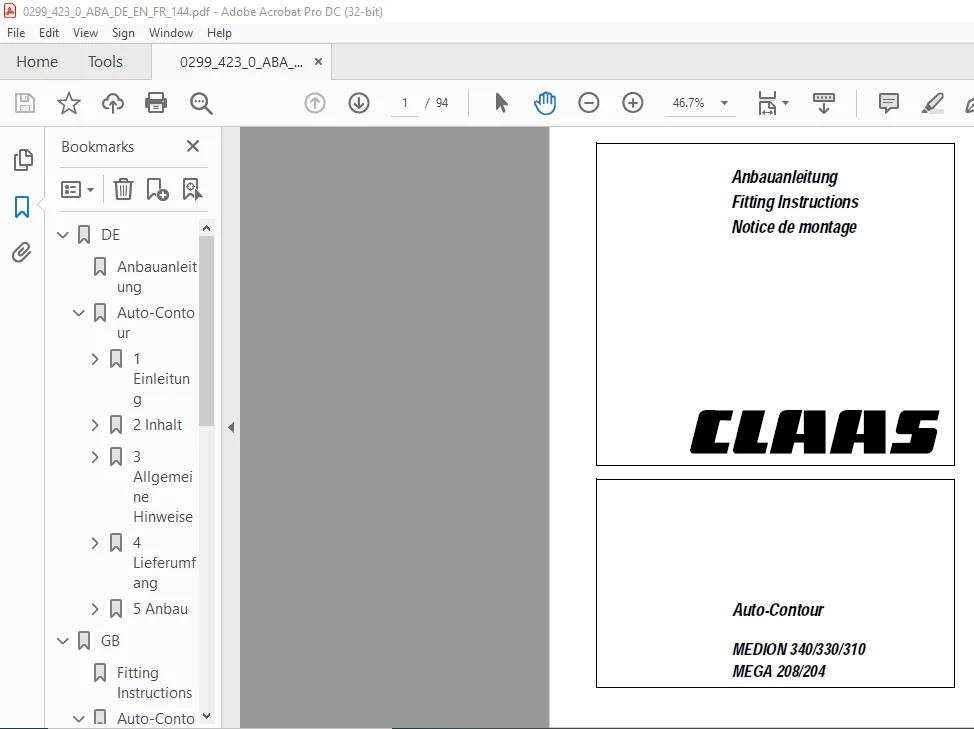

IMAGES PREVIEW OF THE MANUAL:
