CLASS QUANTUM 6800 S 5500 S-18 5500 S-16 5500 S 4500 S 3rd shredder drum Fitting Instructions Manual DE_EN_NL

Description

CLASS QUANTUM 6800 S 5500 S-18 5500 S-16 5500 S 4500 S 3rd shredder drum Fitting Instructions Manual DE_EN_NL – PDF DOWNLOAD

DESCRIPTION:

CLASS QUANTUM 6800 S 5500 S-18 5500 S-16 5500 S 4500 S 3rd shredder drum Fitting Instructions Manual DE_EN_NL – PDF DOWNLOAD

INTRODUCTION :

This manual describes the safe and time-saving method of conversion with the mounting kit, part no. 973 576.0 (3rd shredder drum). Please read this manual thoroughly before starting work! Observe especially the section “General instructions”.

The following machines can be converted:
Self-loading forage wagon:
QUANTUM 6800 S
QUANTUM 5500 S-18
QUANTUM 5500 S-16
QUANTUM 5500 S
QUANTUM 4500 S

• The package list is on pages 4.3 to 4.5. Before starting work make sure that the mounting kit is complete.
• The “Package list” can also be used as a supplement to the spare parts list. Dispose of old parts that are not required for the assembly in an environmentally correct manner.

TABLE OF CONTENTS:

CLASS QUANTUM 6800 S 5500 S-18 5500 S-16 5500 S 4500 S 3rd shredder drum Fitting Instructions Manual DE_EN_NL – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Package list
Package list for mounting kit 3rd shredder drum 43
Mounting kit: 973 5760 43
Package list continued for mounting kit 3rd shredder drum 45
Mounting kit: 973 5760 45
Package list continued for mounting kit 3rd shredder drum
– to machine no 614 0 2242 (inclined version) 47
Mounting kit: 973 5760 47
Package list continued for mounting kit 3rd shredder drum
– from machine no 614 0 2243 (straight version) 49
Mounting kit: 973 5760 49
5 Removing sheet metal parts
Removing sheet metal parts 51
6 Installing 3rd shredder drum
Shredder drum assembly to machine no 614 0 2242
(inclined version) 61
Shredder drum assembly from machine no 614 0 2243
(straight version) 62
Shredder drum assembly to machine no 614 0 2242
(inclined version) 63
Drill holes on end plate
(QUANTUM 5500 S / S-18 / S-16 and 4500) 63
Mount shredder drum (1) 63
Shredder drum assembly from machine no 614 0 2243 (straight
version) 64
Drill holes on end plate
(QUANTUM 5500 S / S-18 / S-16 and 4500) 64
Mount shredder drum (1) 64
Continuing assembly for all machines 65
Installing lubrication lines 67
Installing shredder drum drive 69
Installing guard covers 611
Functional check 611
Check and observe the following before putting into operation
612

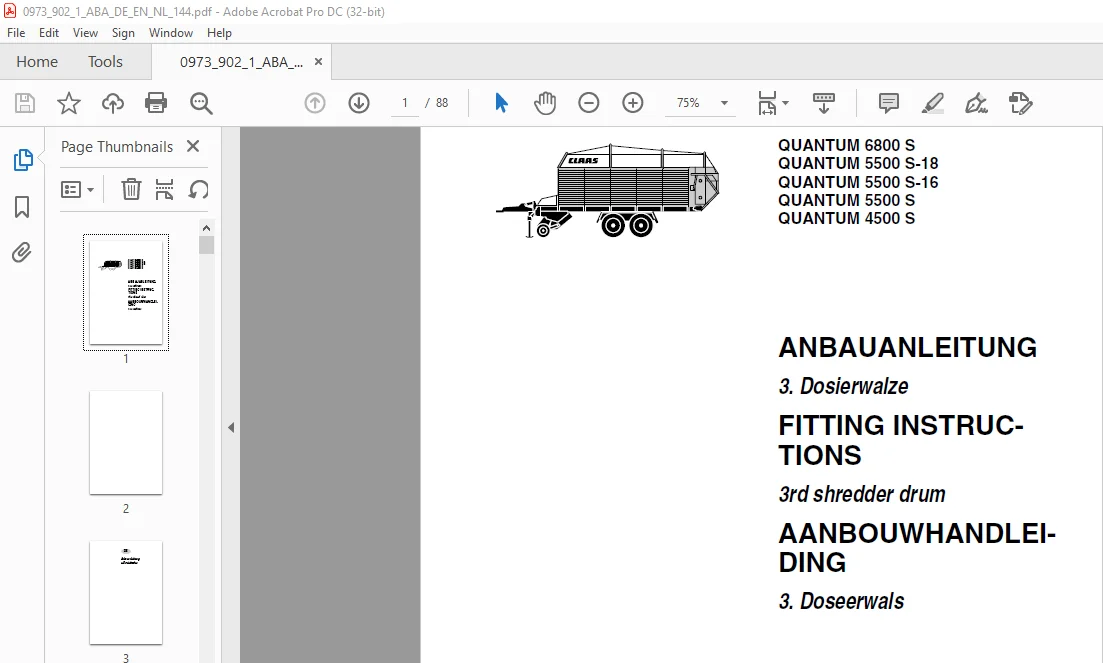

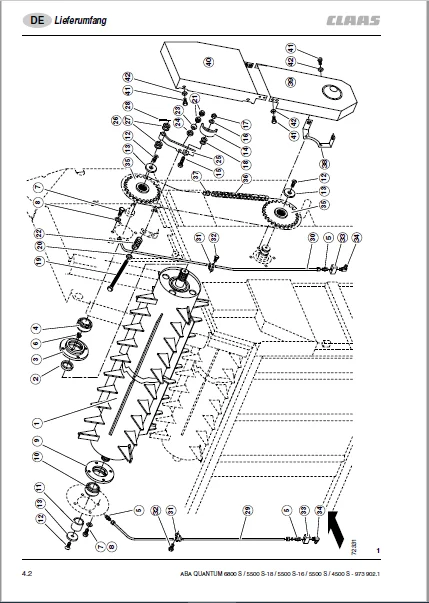

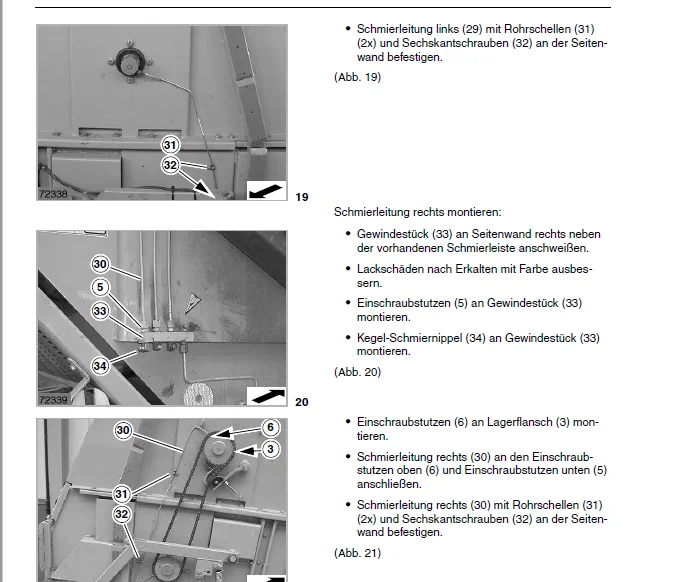

IMAGES PREVIEW OF THE MANUAL:
