CLASS ROLLANT 255 UNIWRAP Bale Twister Assembly Instructions Manual DE_EN_FR

Description

CLASS ROLLANT 255 UNIWRAP Bale Twister Assembly Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLASS ROLLANT 255 UNIWRAP Bale Twister Assembly Instructions Manual DE_EN_FR – PDF DOWNLOAD

To prevent accidents, this manual must be read by everyone who uses the baler and who deals with maintenance, servicing or inspection. It is advisable to pay particular attention to the chapter headed “Safety precautions” in your operator’s manual as well as to comply with the regulations for the prevention of accidents that are in force in your country.

• Before starting work, make sure that all the necessary tools and attachments are ready for use. Make a comparison between the type of machine/attachment on hand, the list which appears in the section headed “Scope of parts” and the ready-to-assemble parts supplied.
• Specification of the parts, for example the screws, appears in the list headed “Scope of parts”. In this list, each assembly component is identified by an item number (item no.). Parts such as nuts and contact washers are not identified by an item number.

TABLE OF CONTENTS:

CLASS ROLLANT 255 UNIWRAP Bale Twister Assembly Instructions Manual DE_EN_FR – PDF DOWNLOAD

Assembly instructions 47
Bale twister 47
Introduction 49
Important 51
Identification of warnings and danger signs 52
General safety precautions and
accident prevention 52
Parking the machine 52
Intended use 52
Scope of parts (0852 1211)
Bale twister with optimised locking 53
Scope of parts (0852 1210)
Bale twister with initial locking 54
PREPARING MACHINE 57
Securing wrapping baler 57
Removing original parts 57
Modifying wrapping arms 61
PREASSEMBLING BALE TWISTER 63
Choosing bale ejection side 63
Assembling bale twister/hinge 63
Preassembling new levers 64
HYDRAULIC ASSEMBLY 65
Three-way valve 65
Removing hydraulic line 66
Fitting hydraulic hoses 66
FITTING BALE TWISTER ON WRAPPER 69
Fitting preassembled levers 69
Fitting roller 70
Fitting holders 70
Assembling hinge/bale twister unit 71
Checking magnet position 74
Fitting “transport position” attachment
(bale twister with initial locking) 75
Fitting “transport position” attachment
(Bale twister with optimised locking) 76
BALE TWISTER IN TRANSPORT POSITION 77
Lowering wrapping table 77
Fitting levers 77
Setting in transport mode 78
Fitting safety fixings 80
Checking transport attachment 81
Checking settings 84
Technical features 84
UPDATING SOFTWARE 85
Loading data file in CDS 5000 85
Loading data file in wrapper module 86

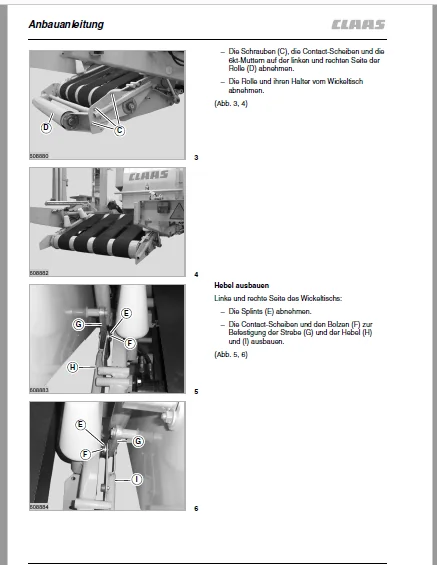

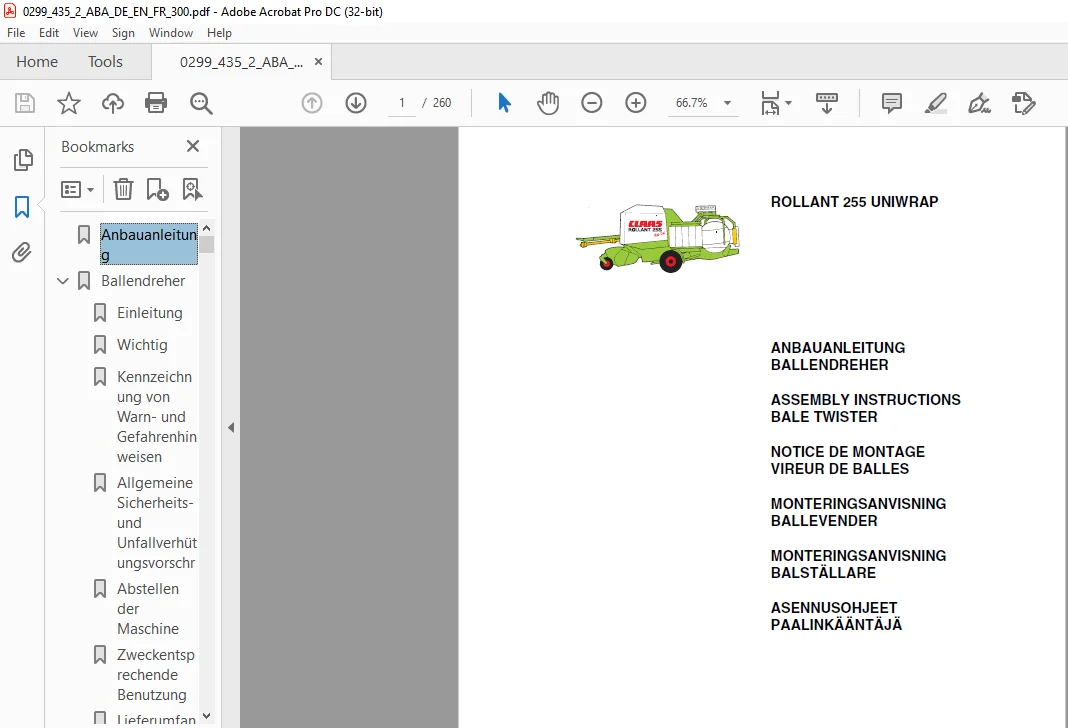

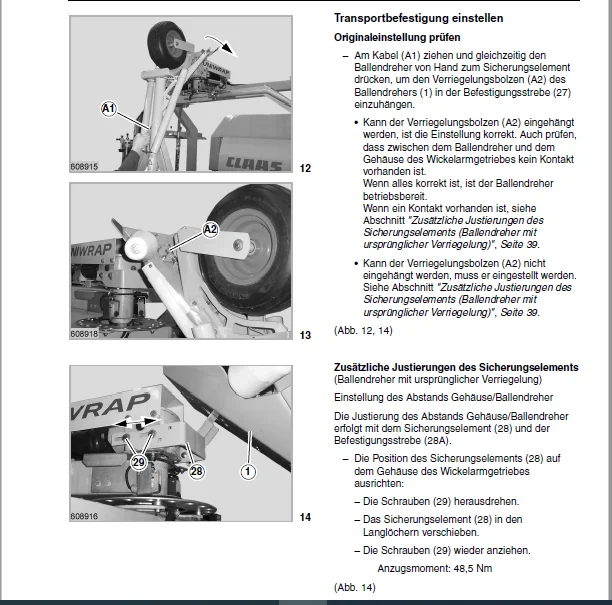

IMAGES PREVIEW OF THE MANUAL:
